E-bikes Cross-country e-bikes

2022

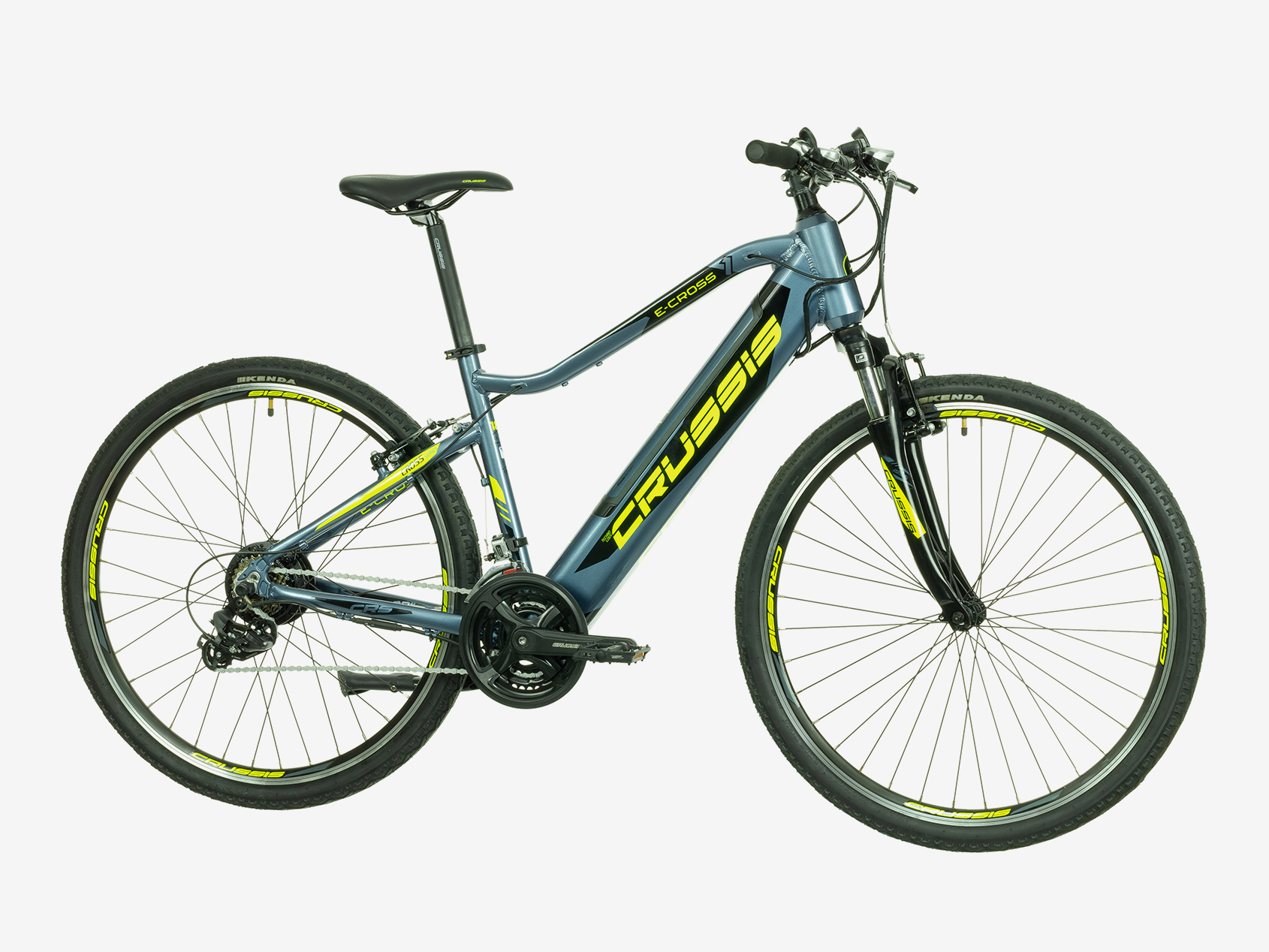

e-Cross 1.7-S

1.692 EUR

Model 2022

Battery / Range

468 Wh to 100 km

630 Wh to 140 km

Height of the person

Frame size

Recommended sizes of electric bikes

Height of the person	Frame size
180 - 200 cm	22”
180 - 195 cm	21”
175 - 190 cm	20”
170 - 185 cm	19”
165 - 180 cm	18”
160 - 175 cm	17”
155 - 170 cm	16”
150 - 165 cm	15”
135 - 155 cm	14”

20” rám

18” rám

Catalog 2023 Add to Compare Remove from comparisons

to 140 km

Range

630 Wh (17,5 Ah)

Battery capacity

3 x 7

Number of gears

Why you'll love it

If you are looking for an e-bike for a sportier ride or trip, you have come to the right place. The e-Cross 1.7-S cross-country e-bike is designed not only for trips of all kinds on roads and cycle paths, but it can also handle more sporty riding in light terrain. If you are looking for a model with a stronger battery, look at the e-Cross 7.7 / 7.7-S with a central electric motor and better accessories (fork, derailleurâ€¦).

e-Cross 1.7-S

1.692 EUR

Catalog 2023

Components

Battery Samsung 630 Wh (17,5 Ah)

The heart of the e-bike's power supply system is a battery with Samsung 36V / 630 Wh (17,5 Ah) Li-Ion cells. The battery is capable of taking the e-bike up to 140 km on a single charge. However, it always depends of course on the profile of the track and how the assistance is used.

LCD display

The motor assistance is controlled via a clear LCD panel with a digital display located on the handlebars near the front brake lever. Simple, convenient, safe. The display itself shows not only basic information regarding the battery level and the level of assistance currently in use, but also other data related to the ride (speed, distance travelled, etc.). So you can leave your bike computer at home, you won't need it anymore.

Gears and derailleur

Shimano Tourney set

Shifting is handled by a 21-speed Shimano Tourney derailleur with 3 gears in the front and 7 in the rear. You can easily see the gear you've selected on the shift lever with indicator.

Technical specifications

Pohon

Range

to 140 km

batteries

SAMSUNG Li-Ion 36V / 630 Wh (17.5 Ah)

Motor

Bafang

control

LCD panel, 5 levels of assistance

control unit

sinusoidal

pedal sensor

rotary (magnetic)

charger

2 A (included)

pedals

WELLGO, plastic with reflector

USB port

Walking assistant

yes

Rám

frame

Alu 6061, frame size 18"/20"

Forks

SR-SUNTOUR CR-7 V 700C", NO LOCK

Kola

Wheel diameter

28"

Brakes

TEKTRO V-Brake

Riffs

CRUSSIS 28", double walled, lined, 19mm

tyres

KENDA 700x45 (47-622), black

front hub

CRUSSIS disc, wreath bearing, 36D

rear hub

Bafang with engine

Nosnost

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to. Some brands quote artificially reduced weights. To find out the weight of a bike, you need to have it weighed in-store.

load capacity

120 kg

Komponenty

handlebars

CRUSSIS AL 31,8mm, width 660 mm

stem

CRUSSIS Al, 60 mm, solid

grips

CRUSSIS ergonomically shaped with sleeve

head composition

Semi 1 1/8

saddle sleeve

CRUSSIS with RU Al, black 34,9

saddlebag

CRUSSIS with lock, 31,6, 350 mm

accessories

stand

Řazení

Number of gears

3 x 7

shifter

SHIMANO Tourney RD-TY500-SGS, 7 speeds

shifting

SHIMANO Tourney SL-TX50, 21 speeds

chain

KMC Z7

cassette / multiwheel

BAFANG 250W (MAX 500W), in rear hub

converter and cranks

CRUSSIS 48/38/28 teeth, 170 mm

e-Cross 1.7-S

Range up to 140 km, Motor Bafang, Battery SAMSUNG Li-Ion 36V / 630 Wh (17.5 Ah)

1.692 EUR

Bike detail

e-Cross 1.7-S

to 140 km

630 Wh (17,5 Ah)

3 x 7
