2022

e-Guera 8.7-S

2.418 EUR

Model 2022

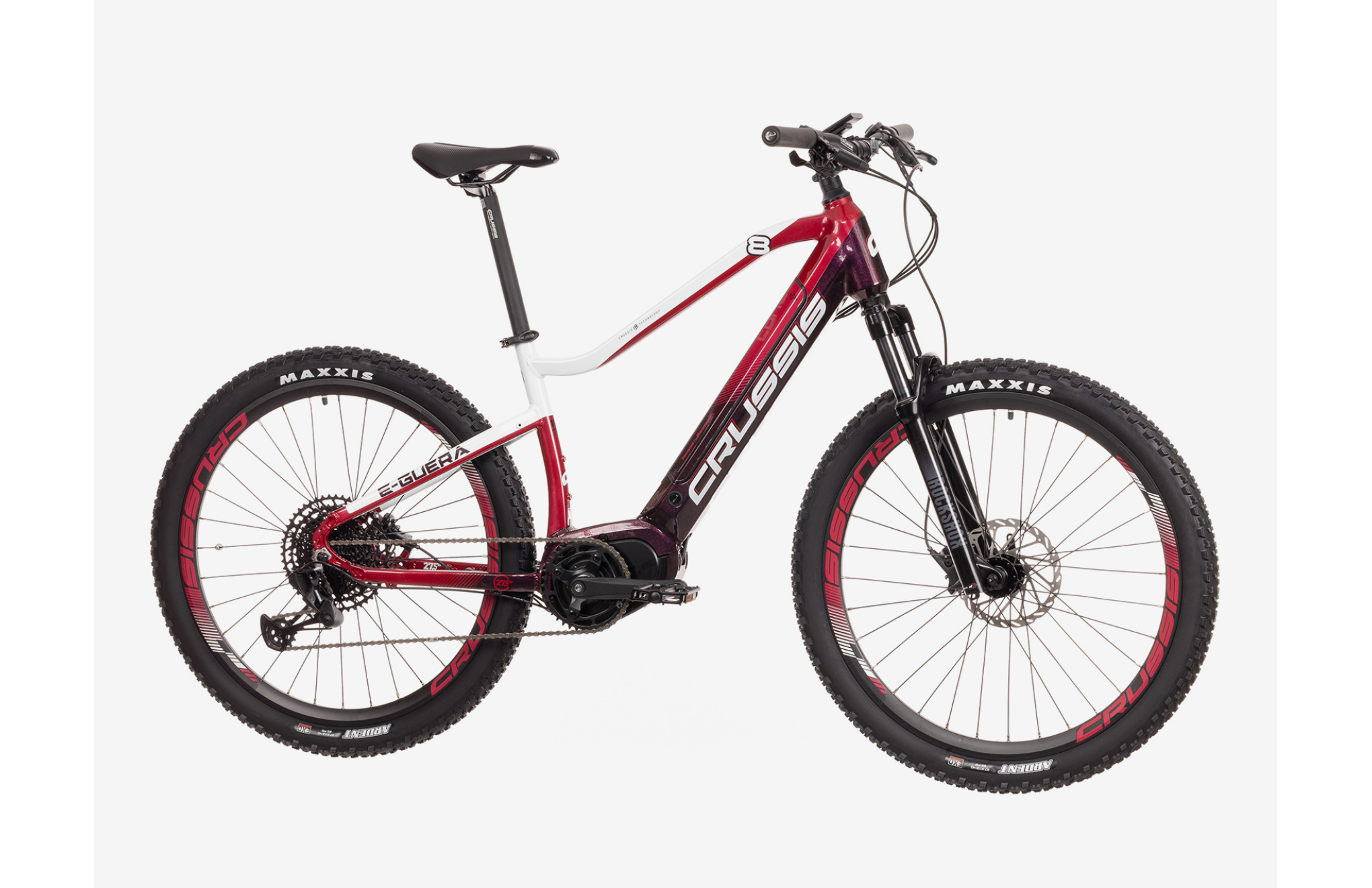

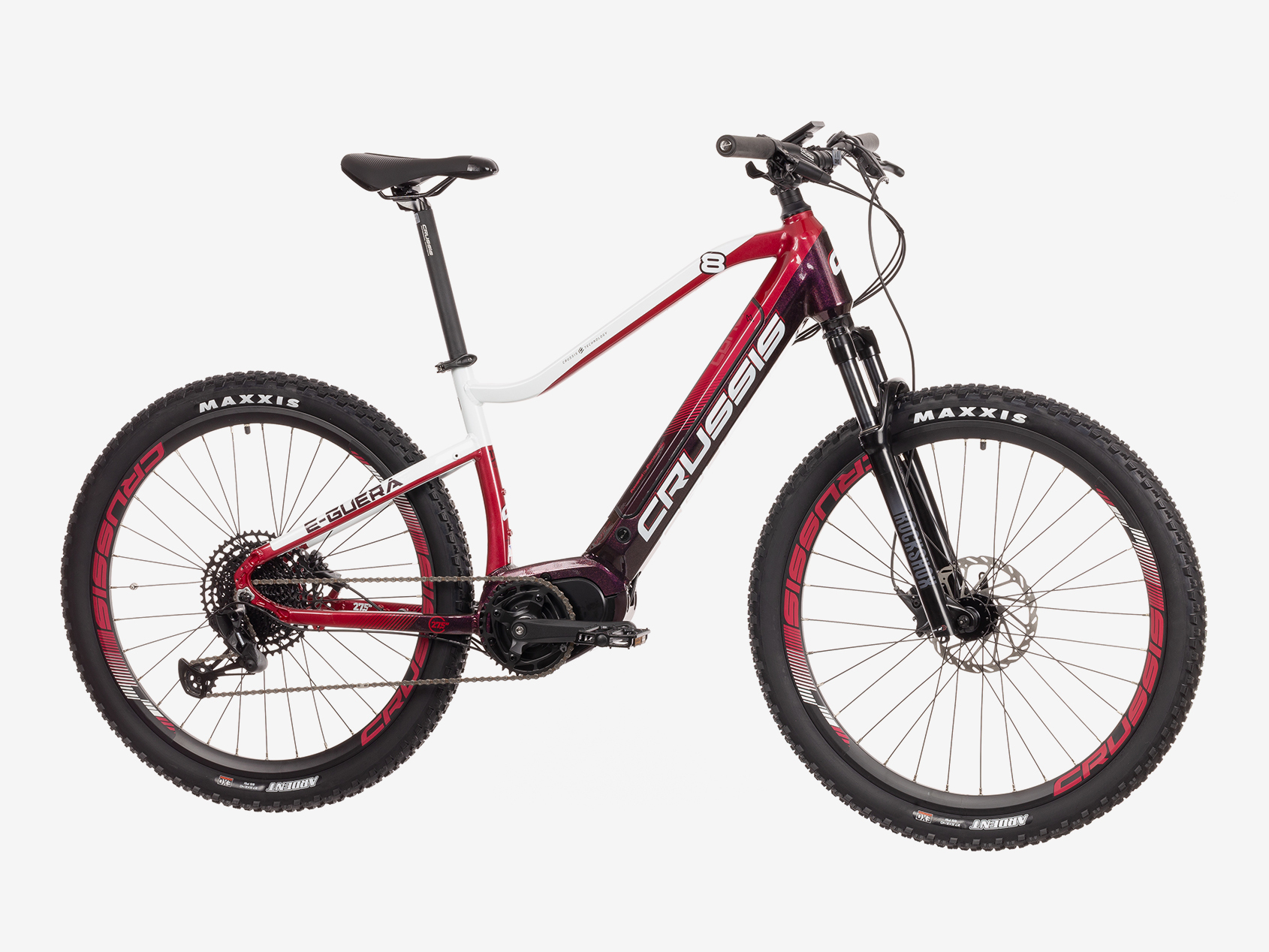

GUERA_8.7 (2022)_1.jpg
3D

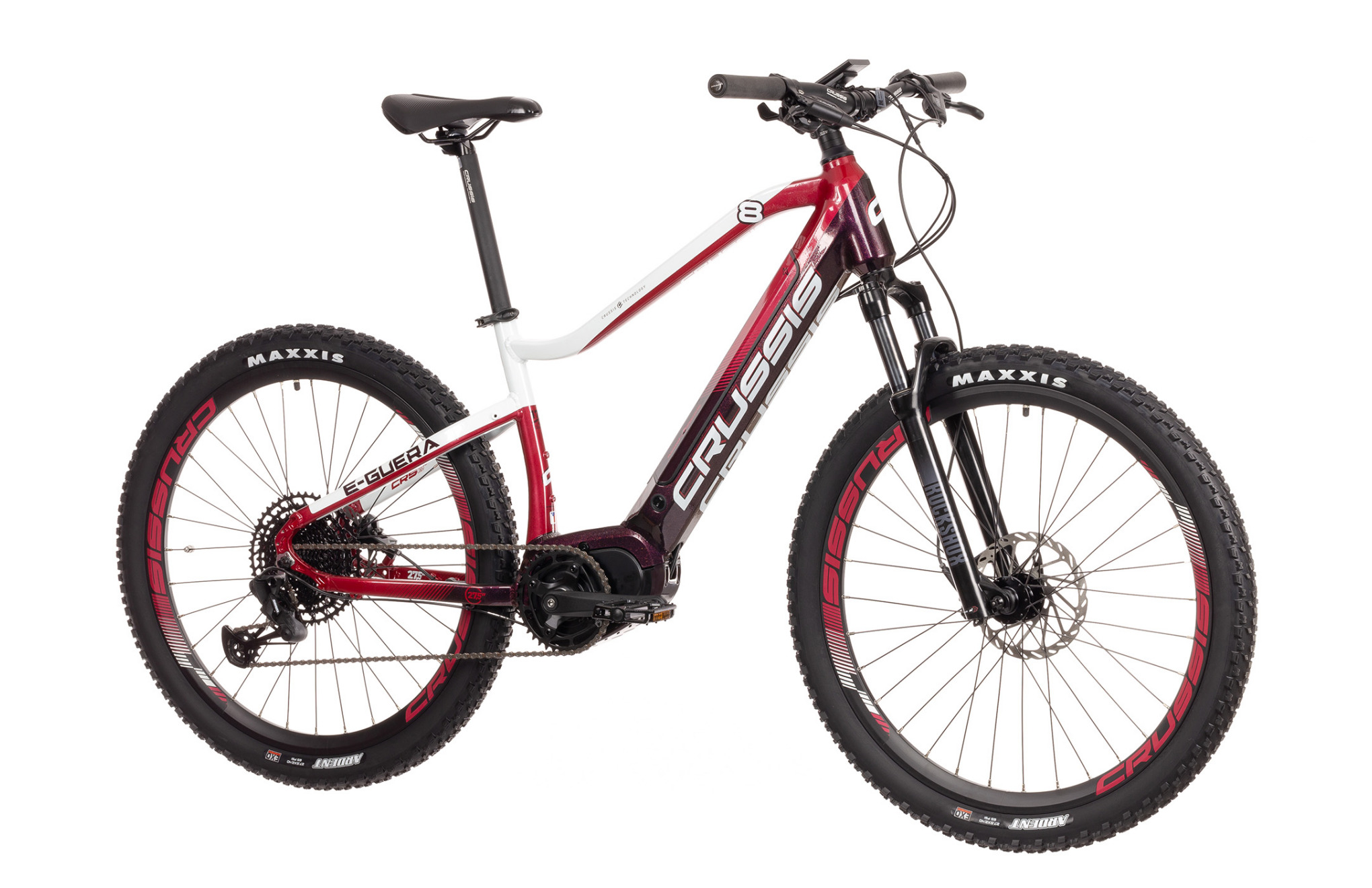

Guera 8-5
Guera 8-2
Guera 8-11

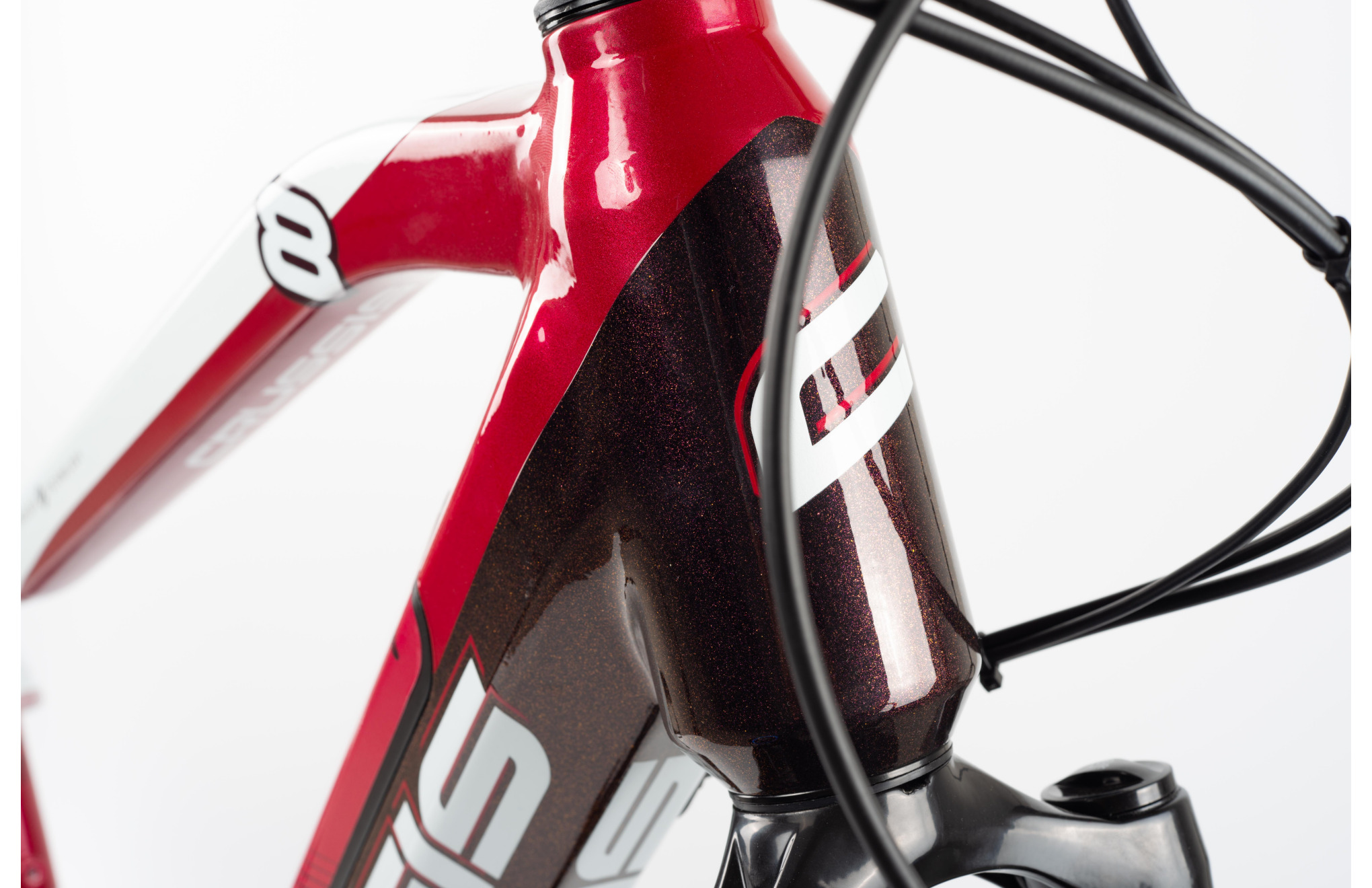

Guera 8

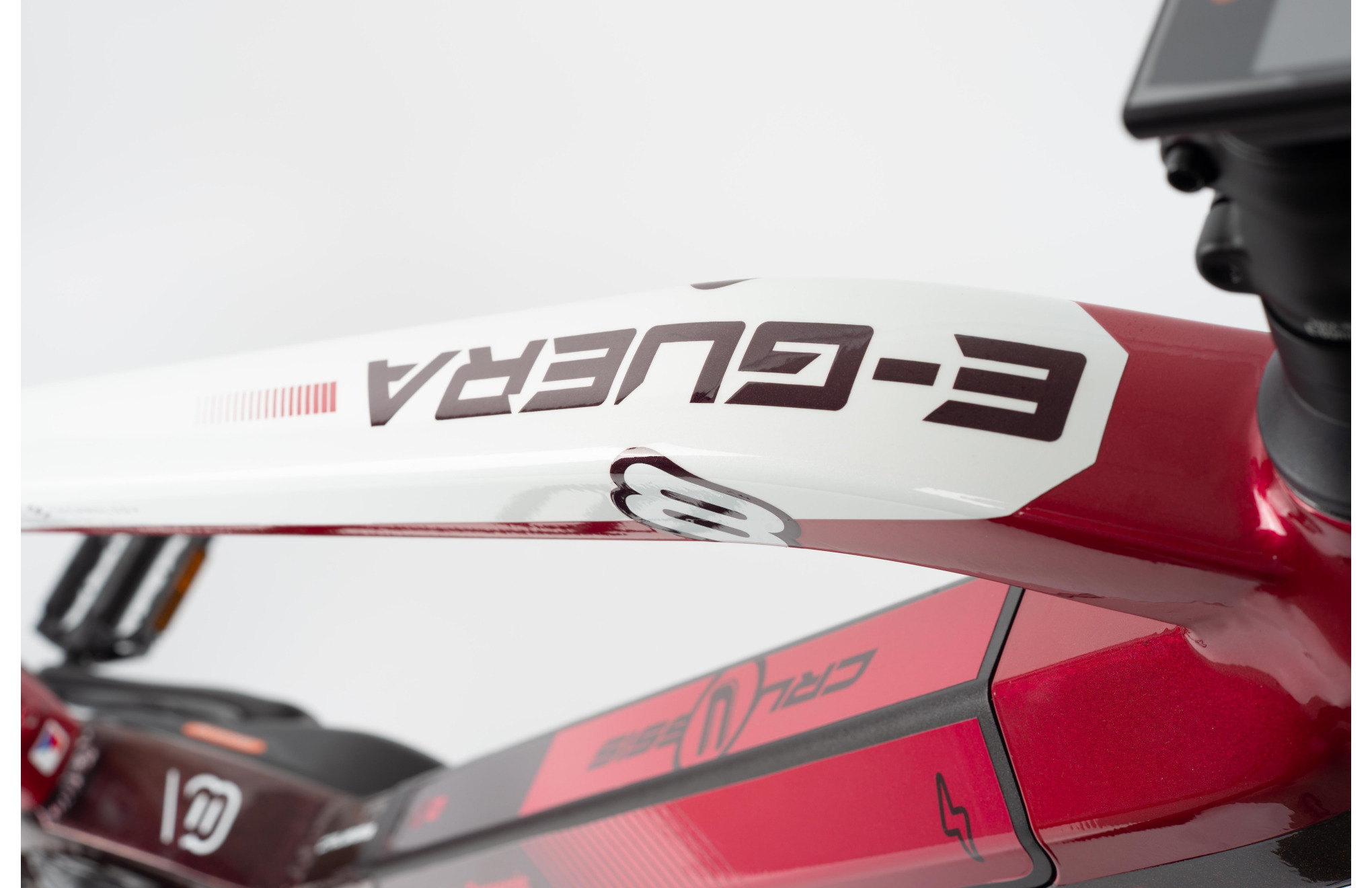

Guera 8-10
Guera 8-9
Guera 8-6

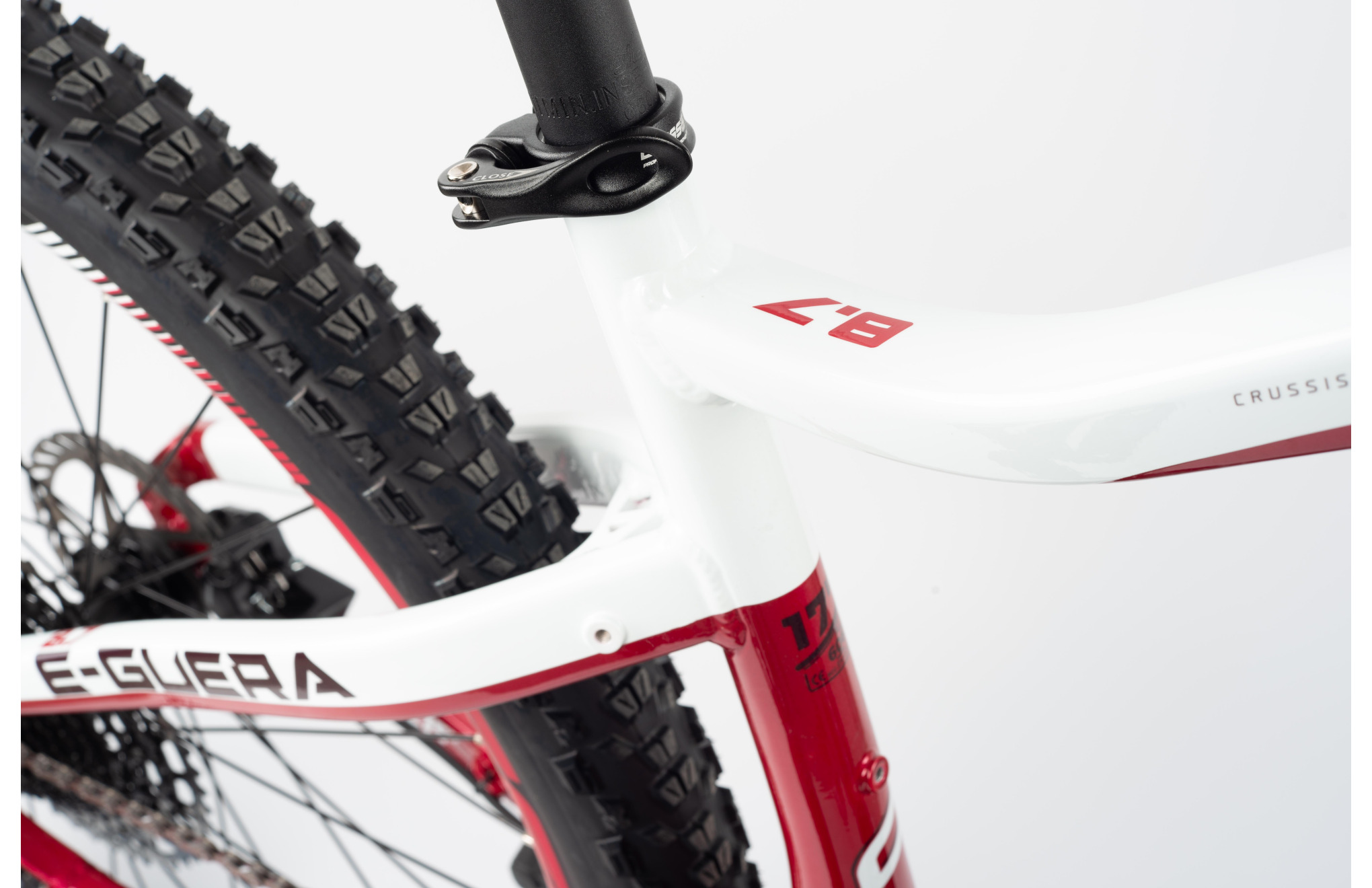

Guera 8-4
Height of the person Velikost rámu info

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
Výška postavy

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
19” frame
17” frame
15” frame

Sold out

Info objednávka This bike model is no longer available.

Range

to 150 km

Range
Battery capacity

630 Wh (17.5 Ah)

Battery capacity
Engine performance

80 Nm

Engine performance
Number of gears

1 x 12

Number of gears
You are looking for an e-bike full of cool features? Then the Crussis e-Guera 8.7-S may be the choice for you. Take it on your trips through the countryside or into the mountains. If you are looking for a model with better accessories (fork, motor, stronger battery...), check out the e-Guera 8.7-M or e-Guera 9.7-S/M, which is equipped with the Bafang M500 motor.
crussis-horska4

Components

Motor

Motor

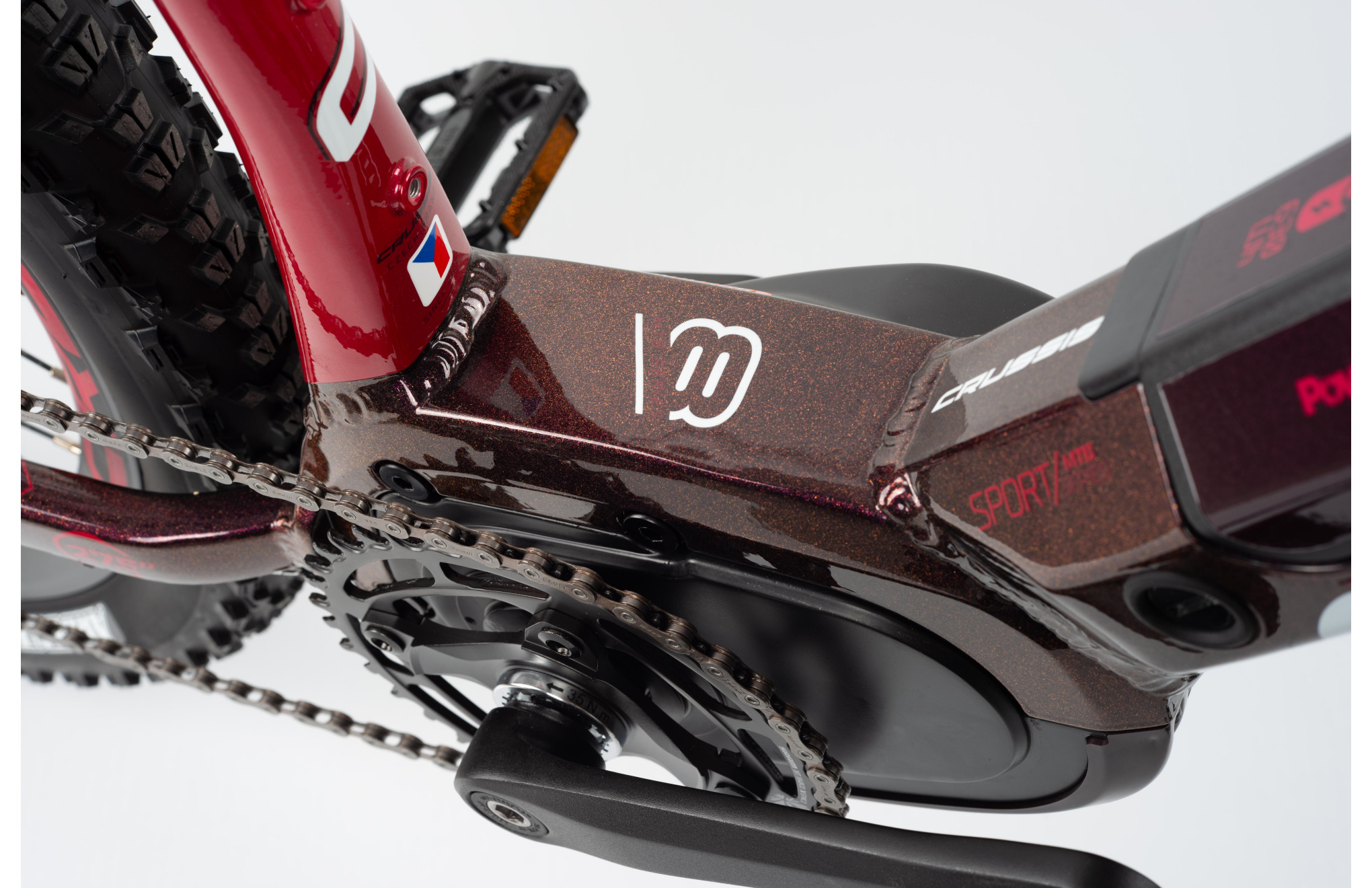

Motor BAFANG Max Drive (M400)

Motor m400 with a nominal power of 250W (max 500W) perfectly balances between torque and power consumption, which is always critical for an e-bike. It offers a really high torque of up to 80 Nm while keeping consumption low. The electric motor is equipped with a torsion sensor. The motor power is regulated by a control unit that constantly evaluates how hard the rider is pedalling. The way it works is that the more power you exert while riding (pedaling), the more the motor helps you.

Battery

Battery

PANASONIC 630 Wh (17,5 Ah)

We present to you the energetic core of our e-bike – a battery with Li-Ion cells from PANASONIC with a power of 36V / 630 Wh (17.5 Ah). This battery is like a living pulsating center that powers the entire e-bike system. With this innovative battery, you can expect a range of up to a respectable 150 km on a single charge, with the exact distance depending on the dynamics of the route and the intensity of the assistance.

Be blown away by the performance and endurance this battery offers. Regardless of whether you go on city trips or adventure hikes in the countryside, with cells from PANASONIC you will always be ready for the next kilometer!

Display

Display

BAFANG LCD display -  colour

The colour LCD display shows not only basic information on battery status and the level of assistance currently in use, but also other data relating to the journey (speed, distance travelled, etc.). So you can leave your bike computer at home, you won't need it anymore. The display is also equipped with a USB connector for charging mobile devices (phone, navigation, lighting, etc.). You can also charge your devices outside of civilization, which can come in handy especially during longer trips.

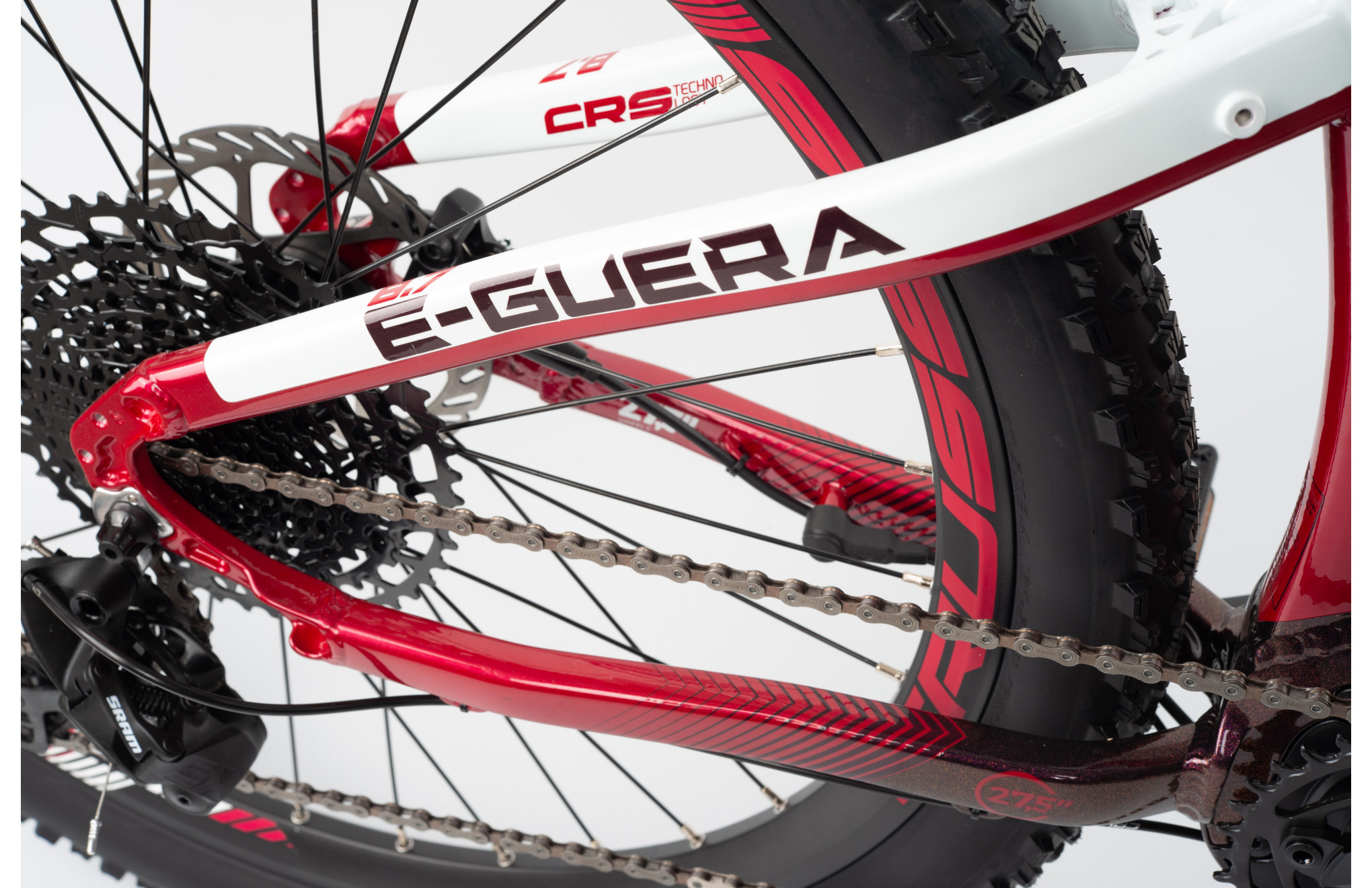

Gearing

Gearing

SRAM SX Eagle, 12 speed

Eagle™ technology from SRAM delivers smoother, more precise shifting with exceptional reliability. Eagle™ technology is revolutionizing MTB by offering cyclists a single-speed drivetrain that's designed to be just right - lightweight, durable, intuitive handling and a range of gears for all-terrain riding. Eagle™. The SX Eagle™ with 12 speeds is here to make it easier than ever for more cyclists to access the benefits of the Eagle™ system.

Suspension Fork

Suspension Fork

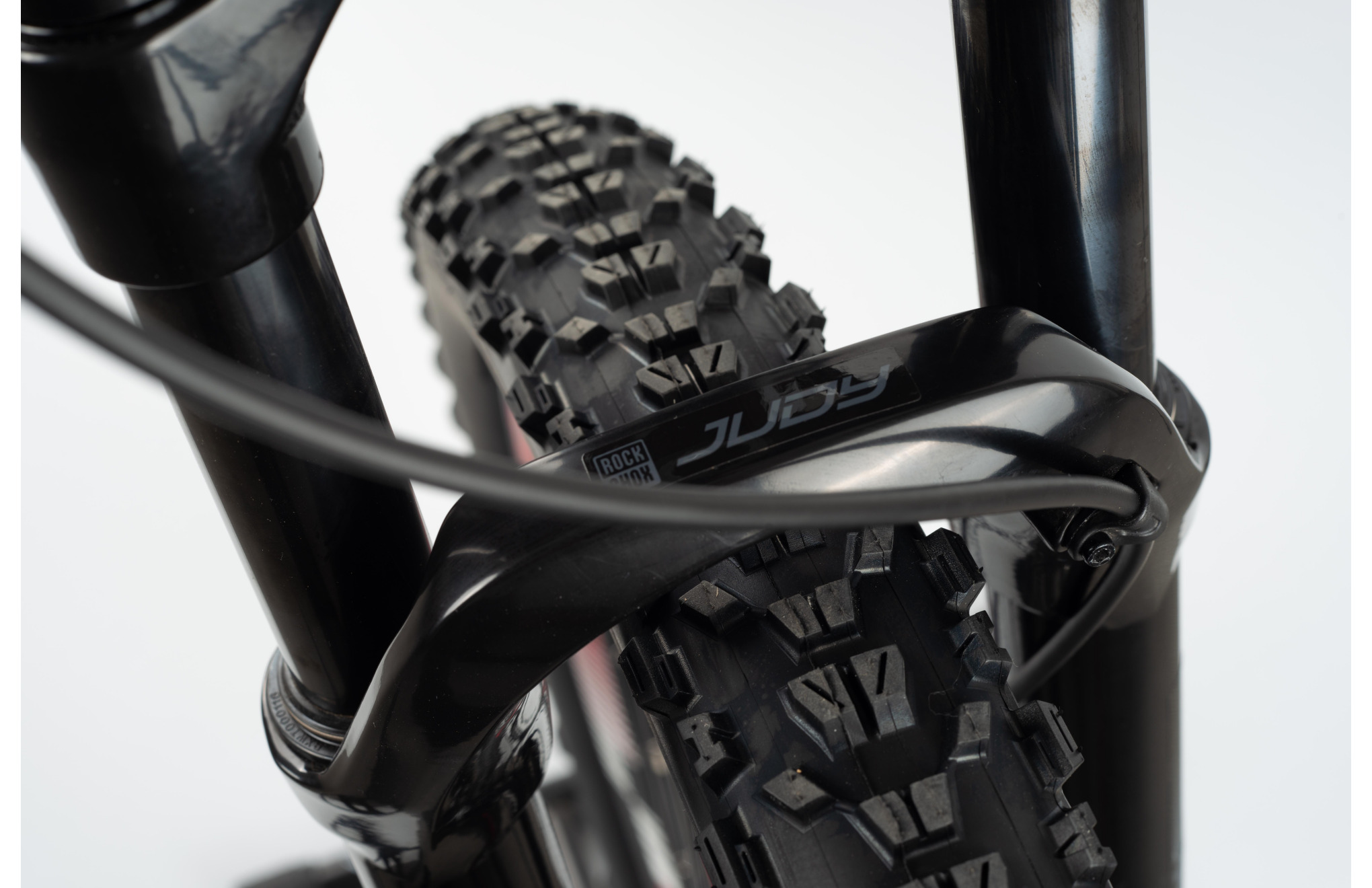

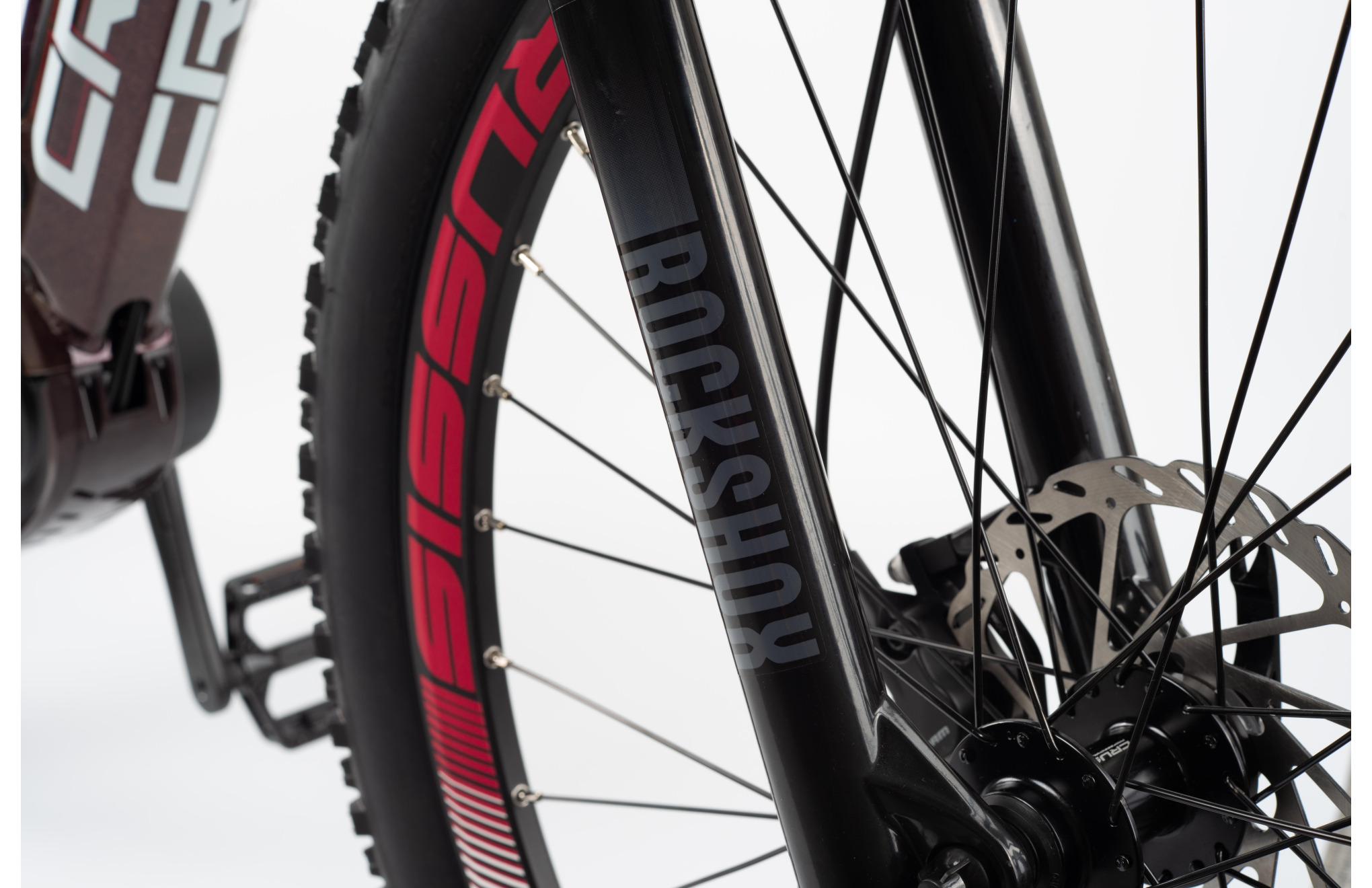

ROCKSHOX FS Judy Silver TK Solo Air 27,5"

Treat yourself to a comfortable ride with the ROCKSHOX FS Judy Silver TK Solo Air 27.5" air-suspended fork. With 100 mm of travel and simple air pressure adjustment, the fork easily adapts to your weight and riding style. It precisely absorbs off-road shocks and remains stable on the flat. For for maximum control you can simply lock the suspension directly from the fork crown. Enjoy a smooth and carefree ride on any terrain with this fork!

crussis-horska3

Technical specifications

Performance Ikona plus Ikona minus

Range

to 150 km

batteries

PANASONIC Li-Ion 36V / 630 Wh (17.5 Ah)

Motor

BAFANG MAX drive (M400), center drive, 250W (max 500W), 80 Nm

control

BAFANG LCD panel, 5 levels of assistance, color display

control unit

Integrated in the engine

pedal sensor

torsion

charger

2 A (included)

pedals

WELLGO, alu with reflector

USB port

yes

Walking assistant

yes

Frame Ikona plus Ikona minus

frame

Alu 6061, frame size 15"/17"/19"

Fork

ROCKSHOX FS Judy Silver TK Solo Air 27,5", 100 mm travel, fork lock

Wheels Ikona plus Ikona minus

Wheel diameter

27,5"

Rims

CRUSSIS 27,5", double walled, lined, 25mm

Hubs

CRUSSIS disc, wreath bearing, 32D

front brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 180 mm rotor

rear brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 160 mm rotor

tires

MAXXIS Ardent 27,5 x 2,40

Load capacity Ikona plus Ikona minus

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to. Some brands quote artificially reduced weights. To find out the weight of a bike, you need to have it weighed in-store.

load capacity

120 kg

Components Ikona plus Ikona minus

handlebars

CRUSSIS Al, 700 mm

stem

CRUSSIS Al, 60 mm, solid

grips

CRUSSIS, 100% silicone

head composition

Semi 1 1/8

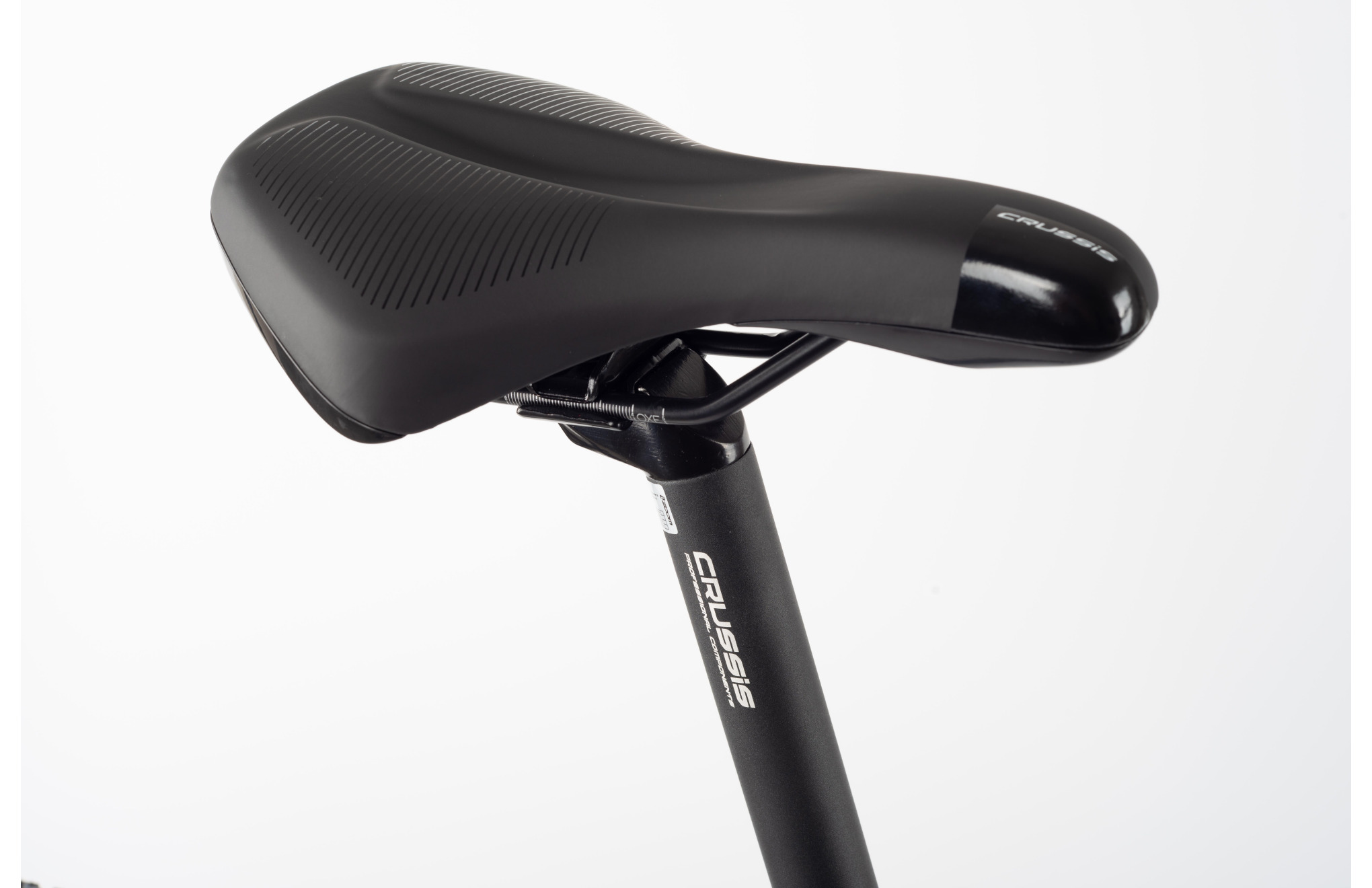

seat

Selle ROYAL

seat post clamp

CRUSSIS with RU Al, black 34,9

seat post

CRUSSIS with lock, 30,4 / 350 mm

Gearing Ikona plus Ikona minus

Number of gears

1 x 12

shifter

SRAM Eagle SX 12s

shifting

SRAM SX Eagle

chain

SRAM Eagle SX 12s

cassette / multiwheel

SRAM CS-PG1210 Eagle, 11-50z

converter and cranks

SRAM X-SYNC 2 38Z / BAFANG 170 mm
