2022

e-Savela 7.7-M

2.337 EUR

Model 2022

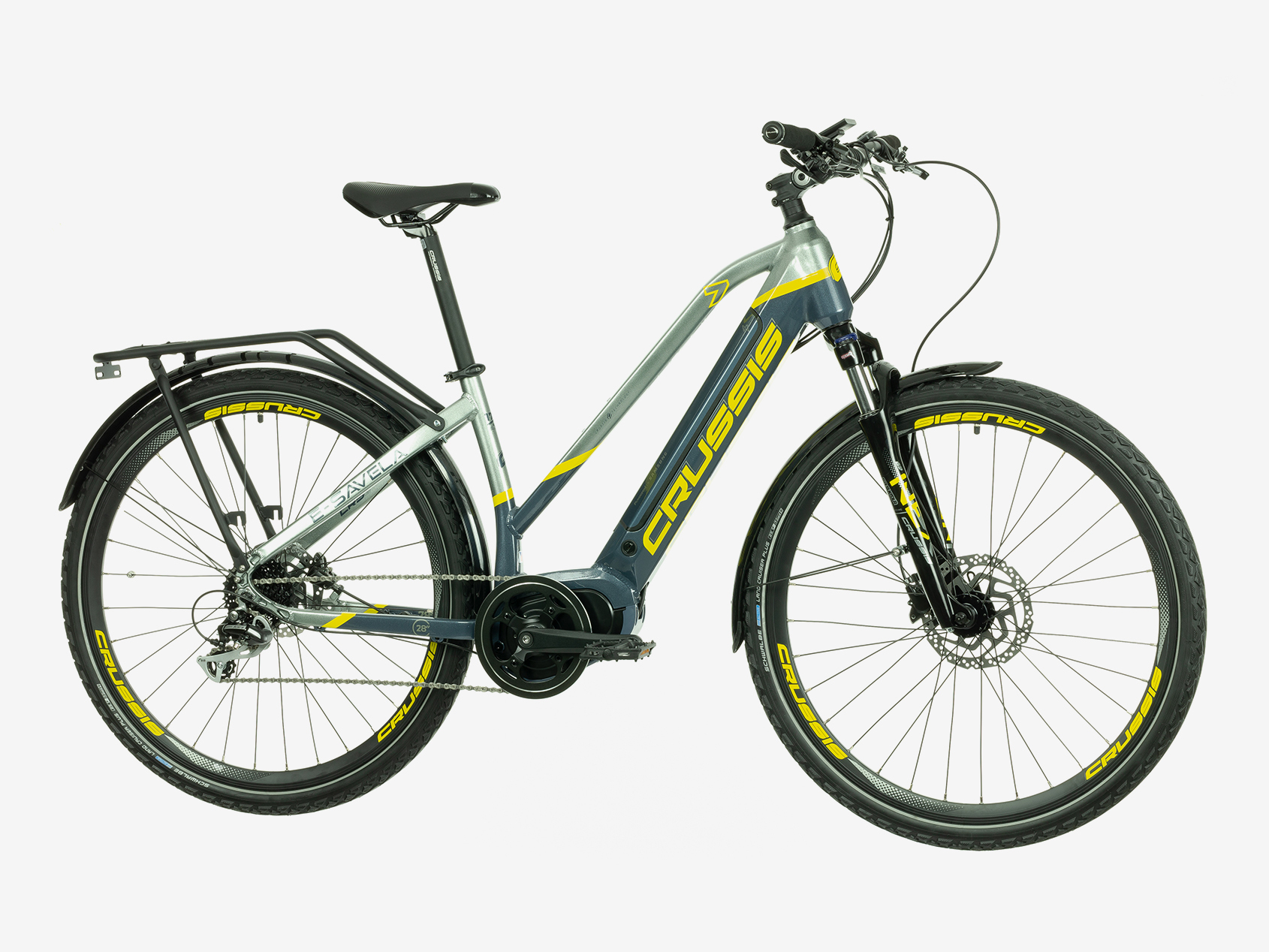

SAVELA_7.7 (2022)_1.jpg
Savela 7-11
Savela 7
Savela 7-4
Savela 7-13
Savela 7-6
Savela 7-2
Savela 7-8
Savela 7-17
Savela 7-12
Savela 7-16
Savela 7-9

Height of the person

Výška postavy
Frame size Velikost rámu info

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
19” rám Chceck - battery
17” rám Chceck - battery
Range

to 170 km

Range
Battery capacity

720 Wh (20 Ah)

Battery capacity
Engine performance

80 Nm

Engine performance
Number of gears

1 x 8

Number of gears

Why you'll love it

Are you looking for an e-bike for comfortable riding and trips of all kinds? Then the e-Savela 7.7 e-bike is just for you. The Crussis e-Savela 7.7 e-bike with a central electric motor is ready. If you still want a model with a with better accessories (derailleur, 9 gears, wider tires, ..) e-Cross lady 7.7 / 7.7- S / M or e-Cross lady 9.7-S / M, which also has a better Bafang M500 engine.
imageove-fotky-4

Components

Motor BAFANG Max Drive (M400)

Motor BAFANG Max Drive (M400)

Motor BAFANG Max Drive (M400)

Motor m400 with a nominal power of 250W (max 500W) perfectly balances between torque and power consumption, which is always critical for an e-bike. It offers a really high torque of up to 80 Nm while keeping consumption low. The electric motor is equipped with a torsion sensor. The motor power is regulated by a control unit that constantly evaluates how hard the rider is pedalling. The way it works is that the more power you exert while riding (pedaling), the more the motor helps you.

BAFANG LCD display -  colour

BAFANG LCD display - colour

BAFANG LCD display -  colour

The colour LCD display shows not only basic information on battery status and the level of assistance currently in use, but also other data relating to the journey (speed, distance travelled, etc.). So you can leave your bike computer at home, you won't need it anymore. The display is also equipped with a USB connector for charging mobile devices (phone, navigation, lighting, etc.). You can also charge your devices outside of civilization, which can come in handy especially during longer trips.

Suspension Fork

Suspension Fork

SUNTOUR NEX HLO DS 700c
The e-bike is equipped with a spring-suspended SUNTOUR NEX HLO DS 700c fork with 63 mm travel, which is perfectly adapted to the weight of the rider. Simply adjust the spring preload (turn the wheel clockwise to increase the preload and counterclockwise to decrease it) and the e-bike fully adapts to your weight and riding style. A well-adjusted fork then provides excellent shock absorption for off-road riding, while not "flexing" unnecessarily on flat surfaces. The suspension can be locked in place with a lock from the fork crown.
Baterie Samsung 720 Wh (20 Ah)

Baterie Samsung 720 Wh (20 Ah)

Baterie Samsung 720 Wh (20 Ah)
The heart of the e-bike's power supply system is a battery with Samsung 36V / 720 Wh (20 Ah) Li-Ion cells. The battery is capable of taking the e-bike up to 170 km on a single charge. However, it always depends of course on the profile of the track and how the assistance is used.
imageove-fotky-2

Technical specifications

Pohon Ikona plus Ikona minus

Range

to 170 km

batteries

SAMSUNG Li-Ion 36V / 720 Wh (20 Ah)

Motor

BAFANG MAX drive (M400), center drive, 250W (max 500W), 80 Nm

control

BAFANG LCD panel, 5 levels of assistance, color display

control unit

Integrated in the engine

pedal sensor

torsion

charger

4 A (included)

pedals

WELLGO, plastic with reflector

USB port

yes

Walking assistant

yes

Rám Ikona plus Ikona minus

frame

Alu 6061, frame size 17"/19"

Forks

SUNTOUR NEX HLO DS 700c, 63 mm stroke, lockable from fork

Kola Ikona plus Ikona minus

Riffs

CRUSSIS 28", double walled, lined, 19mm

Hubs

CRUSSIS disc, wreath bearing, 32D

front brake

SHIMANO BR-MT200 or SRAM Level, hydraulic, 180 mm rotor

rear brake

SHIMANO BR-MT200 or SRAM Level, hydraulic, 160 mm rotor

tyres

SCHWALBE Land Cruiser Plus 28 x 1.75

Wheel diameter

28"

Nosnost Ikona plus Ikona minus

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to. Some brands quote artificially reduced weights. To find out the weight of a bike, you need to have it weighed in-store.

load capacity

120 kg

Komponenty Ikona plus Ikona minus

handlebars

CRUSSIS Al, 680 mm

stem

CRUSSIS Al, 105mm, adjustable

grips

CRUSSIS, 100% silicone

head composition

Semi 1 1/8

saddle

Selle ROYAL

saddle sleeve

CRUSSIS with RU Al, black 34,9

saddlebag

CRUSSIS with lock, 30,4 / 350 mm

accessories

fenders, carrier

Řazení Ikona plus Ikona minus

Number of gears

1 x 8

shifter

SHIMANO Acera RD-M360-L or SRAM X4, 8 speed

shifting

SHIMANO SL-M310 or SRAM X4, 8 speeds

chain

KMC X8

cassette / multiwheel

SHIMANO CS-HG31 or SRAM PG-820, 8 speeds

converter and cranks

BAFANG, 38 teeth, 170 mm
