e-Cross 7.7

2.015 EUR

Model 2022
CROSS_7.7 (2022)_1
Cross 7-7
Cross 7
Cross 7-10
Cross 7-16
Cross 7-2
Cross 7-14
Cross 7-13
Cross 7-9
Cross 7-3
Cross 7-8

Height of the person

Výška postavy
Frame size Velikost rámu info

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
20” frame
18” frame

Sold out

Info objednávka This bike model is no longer available.


to 130 km

Battery capacity

522 Wh (14,5 Ah)

Battery capacity
Engine performance

80 Nm

Engine performance
Number of gears

1 x 9

Number of gears

Why you'll love it

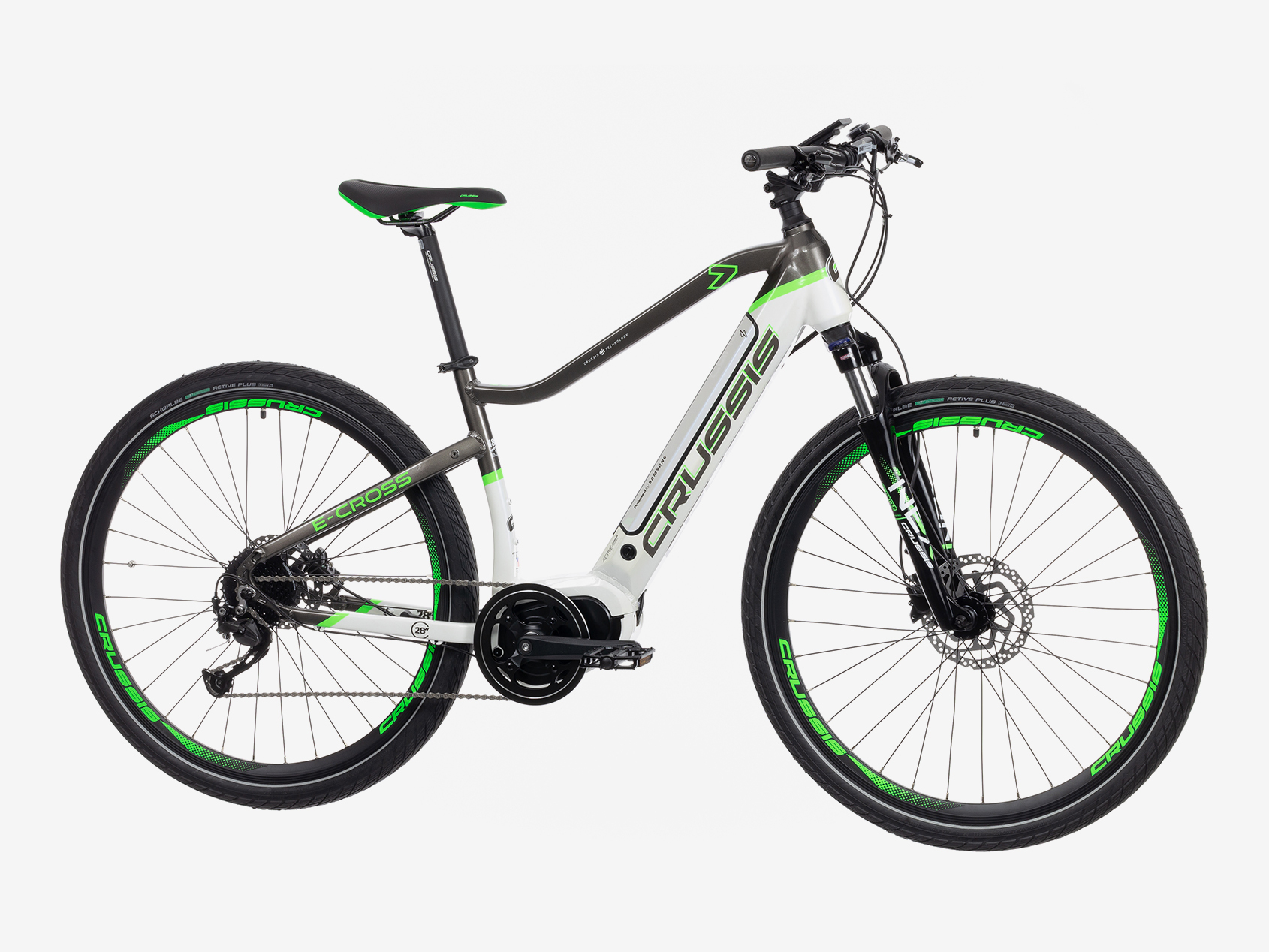

The e-Cross 7.7 men's electric cross bike with central electric motor is designed for sportier riding in light terrain. The e-bike comes without mudguards, lighting, stand and rack. However, these can be easily purchased and fitted to the bike. Or have a look at the e-Gordo 7.7, which comes with mudguards and a rack. If you are looking for a model with a more powerful battery, take a look at the e-Cross 7.7-S/M or an e-bike with better accessories (fork, derailleur...), the e-Cross 9.7-S/M, which also has a better Bafang M500 motor.


Motor BAFANG Max Drive (M400)

Motor BAFANG Max Drive (M400)

Motor BAFANG Max Drive (M400)

Motor m400 with a nominal power of 250W (max 500W) perfectly balances between torque and power consumption, which is always critical for an e-bike. It offers a really high torque of up to 80 Nm while keeping consumption low. The electric motor is equipped with a torsion sensor. The motor power is regulated by a control unit that constantly evaluates how hard the rider is pedalling. The way it works is that the more power you exert while riding (pedaling), the more the motor helps you.

BAFANG LCD display -  colour

BAFANG LCD display - colour

BAFANG LCD display -  colour

The colour LCD display shows not only basic information on battery status and the level of assistance currently in use, but also other data relating to the journey (speed, distance travelled, etc.). So you can leave your bike computer at home, you won't need it anymore. The display is also equipped with a USB connector for charging mobile devices (phone, navigation, lighting, etc.). You can also charge your devices outside of civilization, which can come in handy especially during longer trips.

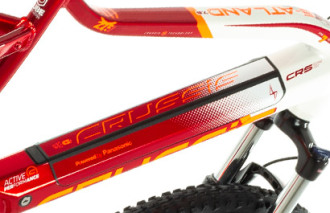

Battery Samsung 522 Wh (14,5 Ah)

Battery Samsung 522 Wh (14,5 Ah)

Battery Samsung 522 Wh (14,5 Ah)
The heart of the e-bike's power supply system is a battery with Samsung 36V / 522 Wh (14,5 Ah) Li-Ion cells. The battery is capable of taking the e-bike up to 130 km on a single charge. However, it always depends of course on the profile of the track and how the assistance is used.
Suspension Fork

Suspension Fork

The e-bike is equipped with a spring-suspended SUNTOUR NEX HLO DS 700c fork with 63 mm travel, which is perfectly adapted to the weight of the rider. Simply adjust the spring preload (turn the wheel clockwise to increase the preload and counterclockwise to decrease it) and the e-bike fully adapts to your weight and riding style. A well-adjusted fork then provides excellent shock absorption for off-road riding, while not "flexing" unnecessarily on flat surfaces. The suspension can be locked in place with a lock from the fork crown.

Technical specifications

Performance Ikona plus Ikona minus


to 130 km


SAMSUNG Li-Ion 36V / 522 Wh (14.5 Ah)


BAFANG MAX drive (M400), center drive, 250W (max 500W), 80 Nm


BAFANG LCD panel, 5 levels of assistance, color display

control unit

Integrated in the engine

pedal sensor



2 A (included)


WELLGO, alu with reflector

USB port


Walking assistant


Frame Ikona plus Ikona minus


Alu 6061, frame size 18"


SUNTOUR NEX HLO DS 700c, 63 mm stroke, lockable from fork,

Wheels Ikona plus Ikona minus

Wheel diameter



CRUSSIS 28", double walled, lined, 19mm


CRUSSIS disc, wreath bearing, 32D

front brake

SHIMANO BR-MT200 or SRAM Level, hydraulic, 180 mm rotor

rear brake

SHIMANO BR-MT200 or SRAM Level, hydraulic, 160 mm rotor


SCHWALBE Energizer Active Plus 28 x 2.00

Load capacity Ikona plus Ikona minus


The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to. Some brands quote artificially reduced weights. To find out the weight of a bike, you need to have it weighed in-store.

load capacity

120 kg

Components Ikona plus Ikona minus


CRUSSIS Al, 700 mm


CRUSSIS Al, 105mm, adjustable


CRUSSIS, 100% silicone

head composition

Semi 1 1/8



saddle sleeve

CRUSSIS with RU Al, black 34,9


CRUSSIS with lock, 30,4 / 350 mm

Gearing Ikona plus Ikona minus

Number of gears

1 x 9


SHIMANO Alivio RD-M3100-SGS or SRAM X5, 9 speeds


SHIMANO Alivio SL-M3100 or SRAM X5, 9 speeds



cassette / multiwheel

SHIMANO CS-HG200-9 or SRAM PG-920, 9 speeds

converter and cranks

BAFANG, 44 teeth, 170 mm
