The scooter is equipped with a SUNTOUR XCM HLO DS 26" suspension fork with 100 mm travel, which is perfectly adapted to the weight of the rider. Simply adjust the spring preload (turn the wheel clockwise to increase the preload and turn it counter-clockwise to decrease it) and fully adapt the scooter to your weight and riding style. A well-adjusted fork perfectly absorbs shocks when riding off-road, while it does not "spring" unnecessarily on a flat surface. The springing can be locked by closing the fork crown.

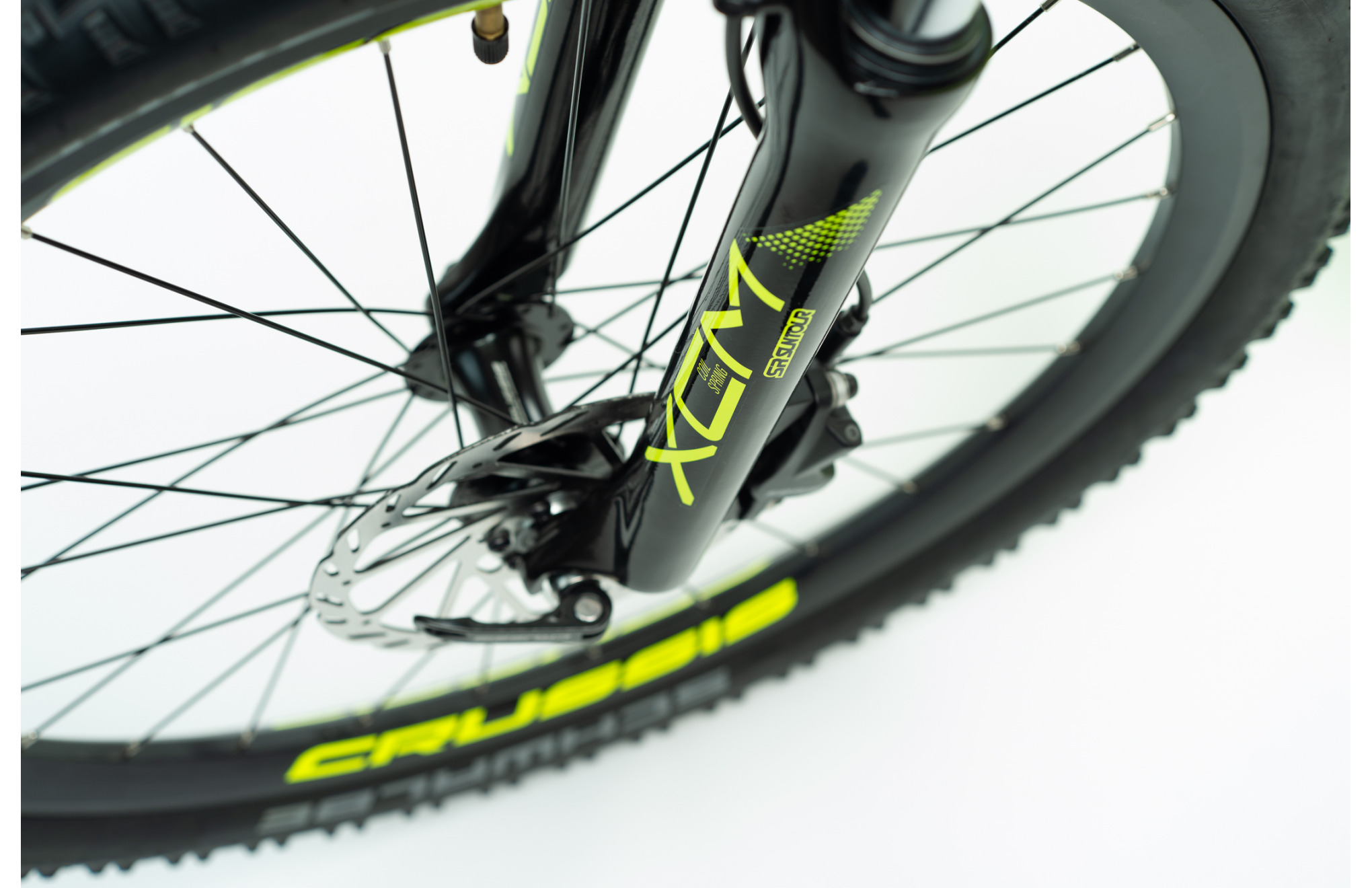

Disc brakes from the world-famous manufacturer Sram, that are Sram Level brakes. Perfect ergonomics help with intuitive control and great sensitivity. A 2-piston caliper with an Alu lever and a 180 mm brake disc ensures a perfect braking effect and an even distribution of braking force.
The uniquely designed footplate is not only a nice design element, but above all a design solution that eliminates the typical fatigue cracks in scooters where the rear fork is usually welded to the footboard.
By keeping a continuous 102mm footboard width along its entire length, including the rear fork, which, along with 65 mm rear hub, minimizes the scooterist's hated ankle kick on rebound.
The raised toe of the footboard ensures optimum scooter handling through the terrain; preventing the footboard from "digging" into an obstacle (terrain wave, curb, etc.) and potentially falling off
Specific and innovative design developed with the highest attention to the functionality of the scooter.
The conical shape of the head tube together with the optimally shaped triangular neck profile increases the frame's strength.
The modern, distinctive off-road profile features a compact center tread that allows the tire to roll comfortably with minimal vibration. At the same time, the outer edges guarantee optimal grip in the terrain.
SUNTOUR XCM HLO DS 26", 100 mm travel, fork lock
Front 26"/rear 20"
SRAM level, hydraulic, 180mm rotor
CRUSSIS 26"/20", double walled, lined
CRUSSIS with industrial bearings 100 mm, 28D
SCHWALBE Smart Sam 26 x 2.10 K-Guard
SCHWALBE Black Jack 20 x 1,90 K-Guard
Front 26"/rear 20"
CRUSSIS Alu MTB, 700 mm
CRUSSIS Alu, 31,8/70 mm
CRUSSIS, 100% silicone
Ahead 1 1/8"
960 - 1000 mm
road * / terrain ***** / city **
For body height
150 - 195 cm
