E-bikes Full suspension e-bikes

2024

LEGEND 68 - limited edition

8.599 EUR

Model 2024

Battery / Range

750 Wh to 180 km

Height of the person

Frame size

Recommended sizes of electric bikes

Height of the person	Frame size
180 - 200 cm	22”
180 - 195 cm	21,5”
180 - 195 cm	21”
175 - 190 cm	20”
170 - 185 cm	19,5”
170 - 185 cm	19”
165 - 180 cm	18”
160 - 175 cm	17,5”
160 - 175 cm	17”
155 - 170 cm	16”
150 - 165 cm	15”
135 - 155 cm	14”

21” frame

19” frame

17” frame

Add to Compare Remove from comparisons

to 180 km

Range

750 Wh (20,1 Ah)

Battery capacity

85 Nm

Engine performance

1 x 12

Number of gears

Why you'll love it

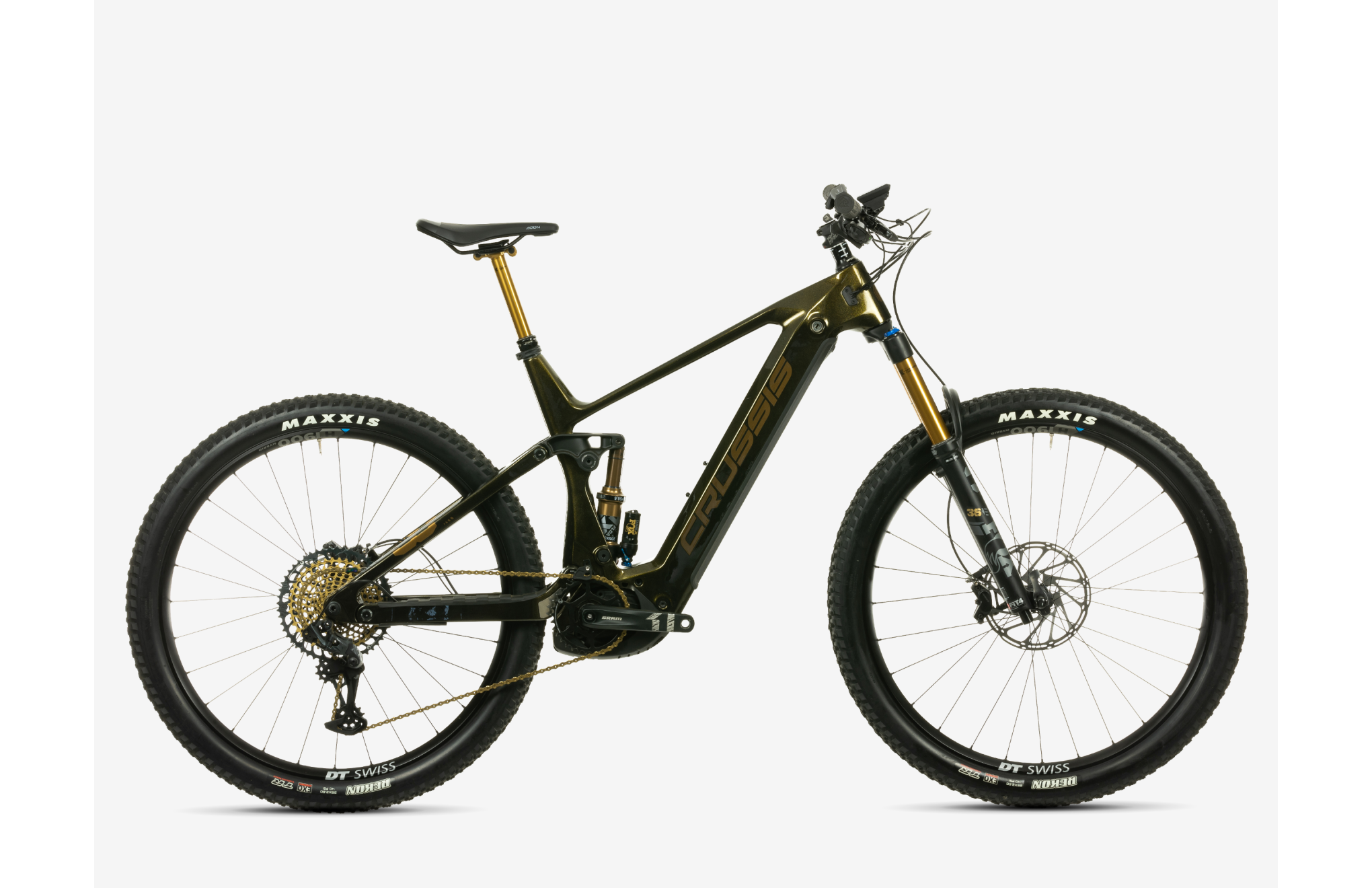

The limited edition LEGEND 68 is a full-suspension e-bike on a carbon frame with high-end components, and we consider it the pinnacle of our work. It is a great choice for demanding cyclists who demand the best. It is equipped with a powerful BOSCH Performance Line CX - Smart System engine, which has a power of 250W (MAX 850W) and a torque of 85 Nm. This engine is very economical and can take you comfortably over long distances. The FOX 36 Float fork enables perfect control and easy overcoming of obstacles. The FOX Transfer telescopic seat post, which can be controlled from the handlebars, ensures a comfortable ride on any terrain. The SRAM Code R brakes are hydraulic and allow safe braking in all conditions. Overall, this is a bike with first-class performance that will meet the requirements of even the most demanding users.

The number of produced pieces is limited.
Each piece has its own special edition number.

LEGEND 68 - limited edition

8.599 EUR

Components

Motor

BOSCH Performance Line CX - Smart System,250W (MAX 850W), 85 Nm

The maximum torque of 85 Nm will provide high acceleration while offering compact dimensions. It has a noticeable effect on ride quality. It allows you to accelerate when exiting sharp turns and perfectly supports you when exiting a steep hill. With the Bosch Performance Line CX - Smart system engine, you will look forward to going uphill and you will enjoy driving on any terrain.

Battery

BOSCH PowerTube 750 Wh (20,1 Ah)

The PowerTube 750 battery for the Smart system from Bosch is a great companion for every adventure. You can drive long and hilly routes and have enough energy for maximum range even at higher altitudes.

Fork

FOX 36 Float eMTB+ 29", zdvih 150 mm

This fork comes from the Fox Float Factory line and is therefore one of the best components you can get on an e-bike. It has a stroke of 150 mm and an offset of 51 mm. You can recognize it from a distance by the Kashima Coating coloring of the gliders.

Display

BOSCH Kiox 300

Kiox 300 is a display for the Smart System and can be intuitively controlled using the LED Remote. It is compact and offers an easy-to-read color display that is splash and dust resistant. It is fully connected to the Smart System network and constantly receives new functions and updates through the eBike Flow application.

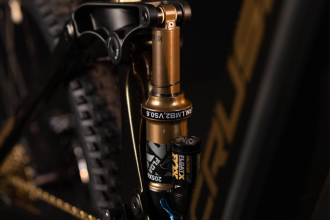

Shock absorber

FOX Float X, 205x60 mm

The ideal shock absorber for trails for its sophisticated damping and uncompromising performance in a light version. The large piston offers a large volume of air for a wider range of tuning. So you need much less air pressure.

Technical specifications

Performance

Range

to 180 km

batteries

BOSCH PowerTube / 750 Wh (20,1 Ah)

Motor

BOSCH Performance Line CX - Smart System,250W (MAX 850W), 85 Nm

control

BOSCH Kiox 300

control unit

Integrated in the engine

pedal sensor

torsion

charger

4 A (included)

USB port

Walking assistant

yes

Frame

frame

Carbon, frame size 17"

Fork

FOX 36 Float eMTB+ 29", travel 150 mm, lockout on fork

rear shock absorber

FOX Float X, 205x60 mm

Wheels

Wheel diameter

29"

front brake

SRAM Code R, hydraulic, rotor 200 mm

rear brake

SRAM Code R, hydraulic, rotor 180 mm

Tangled front wheel

DT SWISS H 1900 SPLINE 29" - 35 mm, IS 15/110 mm

Tangled rear wheel

DT SWISS H 1900 SPLINE 29" - 35 mm, IS 12/148 mm SRAM XD

Load capacity

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,

load capacity

120 kg

Components

handlebars

RACEFACE Chester AL 35 mm, 780 mm

stem

RACEFACE Chester AL 40 mm, 0°

grips

RACEFACE Getta, 33 mm, black

head composition

FSA Orbit 57E, 1,5"

seat

Fizik Terra Aidon X5

seat post clamp

CRUSSIS AL, black 34,9 mm

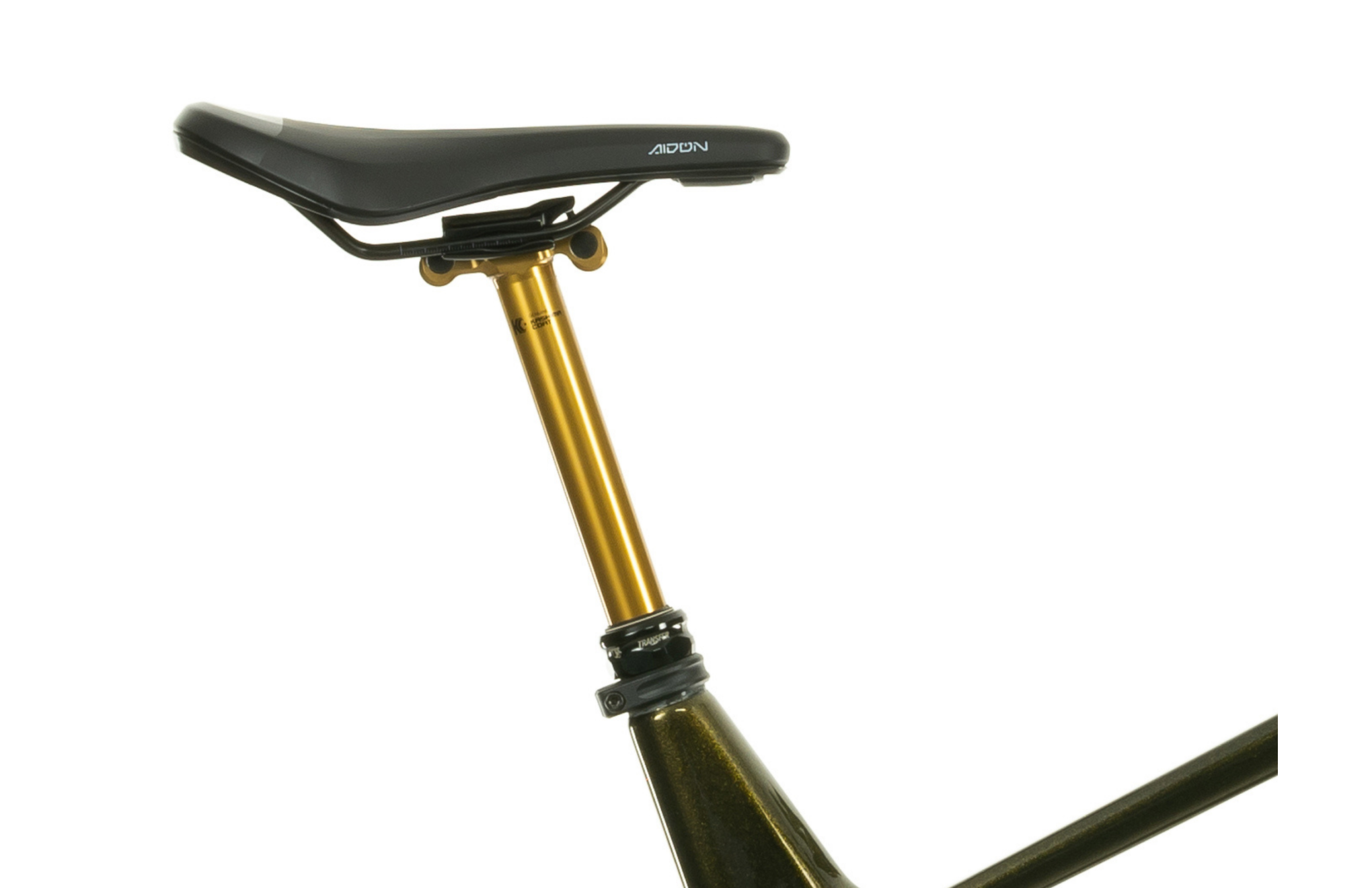

seat post

FOX Transfer 30,9 mm, dropper post 125 mm or 150 mm

Gearing

Number of gears

1 x 12

shifter

SRAM XX1 Eagle, 12 speed

shifting

SRAM XX1 Eagle

chain

SRAM XX1 Eagle Gold, 12 speed

cassette / multiwheel

SRAM CS-XG 1299 Eagle, 11-52Z Gold

converter and cranks

SRAM X-SYNC 2 34Z, SRAM X1 E-MTB ISIS 170 mm
