e-Guera 10.9-M

3.099 EUR

Model 2024
e-Guera 10.9-M
e-Guera 10.9-M
e-Guera 10.9-M
e-Guera 10.9-M
e-Guera 10.9-M
e-Guera 10.9-M
e-Guera 10.9-M
e-Guera 10.9-M

Battery / Range

Height of the person

Výška postavy
Frame size Velikost rámu info

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
19” frame
17” frame
15” frame

to 170 km

Battery capacity

720 Wh (20 Ah)

Battery capacity
Engine performance

95 Nm

Engine performance
Number of gears

1 x 12

Number of gears

Why you'll love it

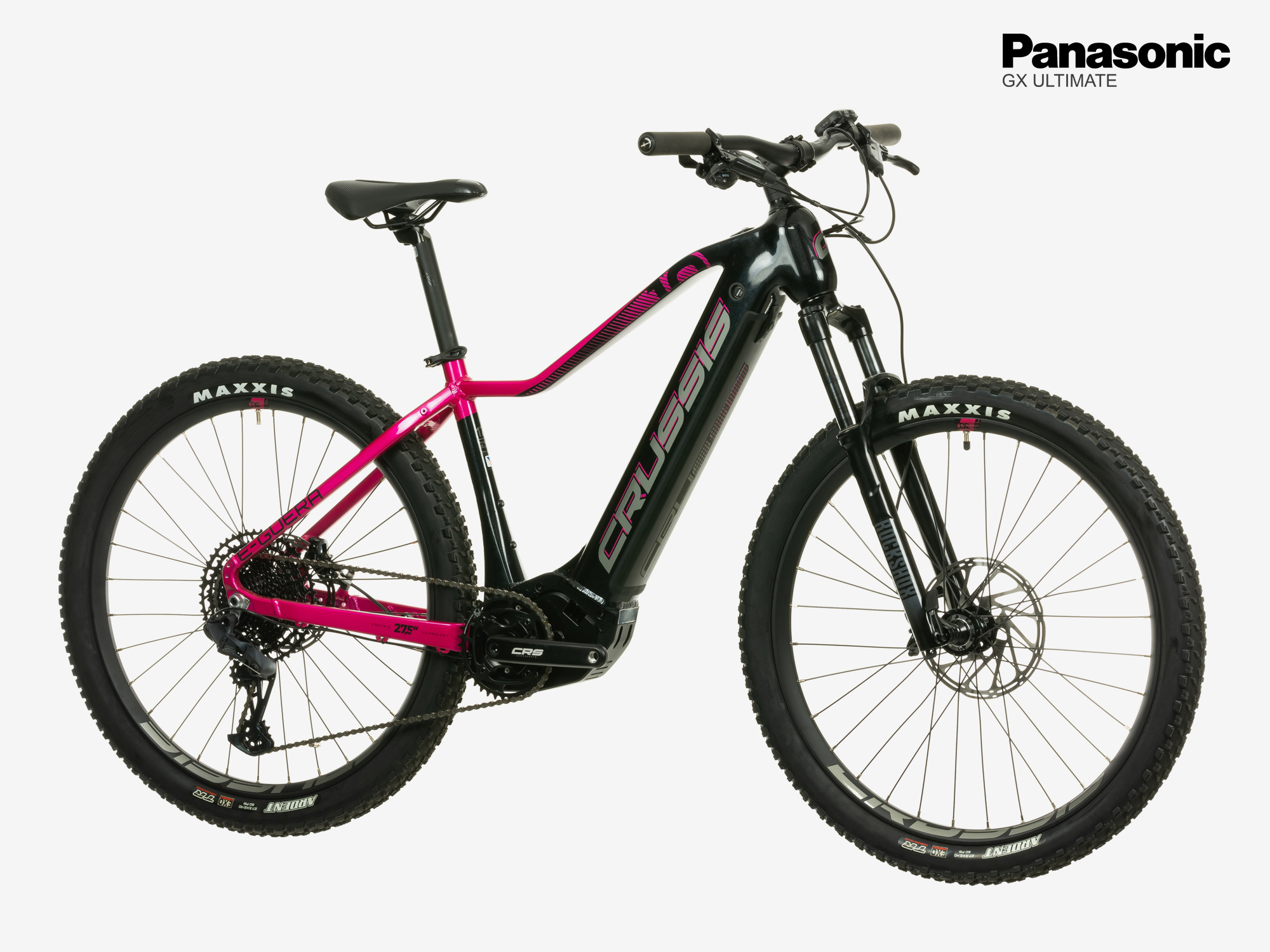

The CRUSSIS e-Guera 10.9-M electric bike is the ideal partner for your trips around the area and over longer distances! The RockShox suspension fork combined with the powerful Panasonic GX Ultimate motor with a torque of 95 Nm and SRAM Guide T brakes will give you a great riding experience. So put on your helmet and get up for a trip!




SRAM GX Eagle, 12 speed

The GX Eagle is a reliable partner for any ride, anytime, anywhere. Long days in the saddle, fast rides or however you spend your time on the bike, the GX Eagle will serve you to the max. The larger, 14-tooth X-SYNC™ lower pulley works flawlessly with the new 10-52z cassette as well as the original 10-50z, and also enhances the smooth pedaling feel of the Eagle drive. The new, Type-3 ROLLER BEARING CLUTCH™ clutch has a smoother curve in the torque curve for a quieter, more consistent feel. The CAGE LOCK™ shoulder lock has been moved further and out of reach of flying stones. A redesigned, robust mounting system further improves the Eagle™ derailleur's performance and overall durability. Further proof of the GX Eagle's clear role - to get the job done.



PANASONIC LCD display  - Colour

Panasonic LCD display with remote control from the handlebar on the left side. The display is equipped with a USB port for phone charging. In addition to the three assistance modes HIGH, STANDARD and ECO, there is also a dynamic AUTO mode that provides assistance depending on rider torque input. The display is IPX5 rated.



PANASONIC GX Ultimate 95 Nm

If you want to maximize your riding pleasure on the e-MTB, here's a best-in-class motor with a torque of 95 Nm and a weight of just 2.95 kg, allowing you to reach the most challenging targets.

Robust and powerful: the GX Ultimate motor is the best in its class. Ready for your ultimate mountain biking experience. With support that is equally as steady as it is powerful, it's perfect for tackling even the steepest climbs.

Even at low cadence, the motor unit delivers a constant and powerful 95 Nm of power, making the GX Ultimate one of the most powerful motor units in its class, and it supports you even in the toughest conditions.



LG 720 Wh (20 Ah)

The heart of the e-bike's power supply system is a battery with LG 720 Wh (20 Ah) cells. The battery is capable of taking the e-bike up to 170 km on a single charge. However, it always depends of course on the profile of the track and how the assistance is used.



ROCKSHOX FS Recon Silver RL Solo Air 27,5", stroke 120 mm

The air-damped ROCKSHOX FS Recon Silver RL Solo Air 27.5" fork with 120 mm travel is perfectly adapted to the weight of the rider. Simply adjust the air pressure in the fork and the e-bike fully adapts to your weight and riding style. The well-adjusted fork then perfectly absorbs shock when riding off-road, while not "flexing" unnecessarily on flat surfaces. The suspension can be locked from the fork crown.


Technical specifications

Performance Ikona plus Ikona minus


to 170 km


LG Li-Ion 36V / 720 Wh (20 Ah)


PANASONIC GX Ultimate, 250W (MAX 600W) 95 Nm


PANASONIC LCD panel, color display

control unit

Integrated in the engine

pedal sensor



4 A (included)


WELLGO, alu with reflector

USB port

USB Micro-B

Walking assistant


Frame Ikona plus Ikona minus


Alu 6061- frame size 15"


ROCKSHOX FS Recon Silver RL Solo Air 27,5", travel 120 mm, lockout on fork

Wheels Ikona plus Ikona minus

Wheel diameter



CRUSSIS 27,5" disc, double walled, lined, 30 mm

front brake

SHIMANO Deore BR-MT420, or SRAM Guide T, hydraulic, rotor 180 mm

rear brake

SHIMANO Deore BR-MT420, or SRAM Guide T, hydraulic, rotor 160 mm


MAXXIS ARDENT 27,5 x 2,40

front hub

CRUSSIS disc, wreath bearing, 32D, thru axle 15x100 mm

rear hub

CRUSSIS disc, wreath bearing, 32D, thru axle 12x142 mm

Load capacity Ikona plus Ikona minus


The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,

load capacity

120 kg

Components Ikona plus Ikona minus


CRUSSIS AL 31,8 mm, 720 mm


CRUSSIS AL 50 mm, 7°


CRUSSIS, 100% silicone

head composition

SEMI 1 1/8"



seat post clamp

CRUSSIS s RU AL, black 34,9 mm

seat post

CRUSSIS , 30,4, 350 or 400 mm

Gearing Ikona plus Ikona minus

Number of gears

1 x 12


SRAM GX Eagle, 12 speed




SRAM SX Eagle, 12 speed

cassette / multiwheel

SRAM CS-PG1210 Eagle, 11-50z

converter and cranks

SRAM X-SYNC 2 38Z, CRS ISIS 170 mm
