2023/24

e-Guera 6.8

2.079 EUR

Model 2023/24
e-Guera 6.8 (14)
3D
e-Guera 6.8 (14)
e-Guera 6.8 (14)
e-Guera 6.8 (14)
e-Guera 6.8 (14)
e-Guera 6.8 (14)
e-Guera 6.8 (14)
e-Guera 6.8 (14)
e-Guera 6.8 (14)
e-Guera 6.8 (14)
e-Guera 6.8 (14)
e-Guera 6.8 (14)
e-Guera 6.8 (14)
Height of the person Velikost rámu info

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
Výška postavy

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
14” frame

Sold out

Info objednávka This bike model is no longer available.

Range

to 120 km

Range
Battery capacity

504 Wh (14 Ah)

Battery capacity
Engine performance

80 Nm

Engine performance
Number of gears

1 x 9

Number of gears

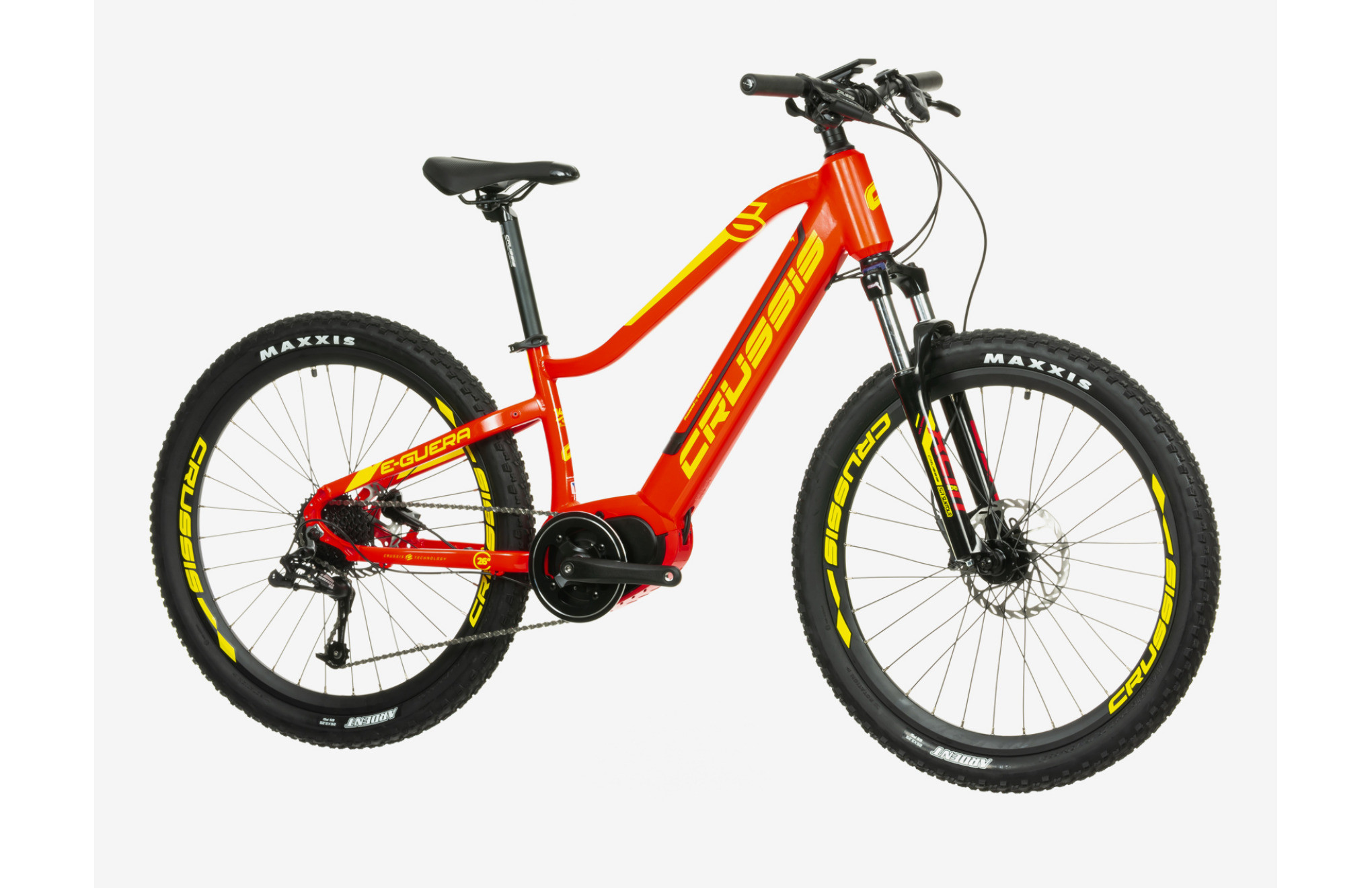

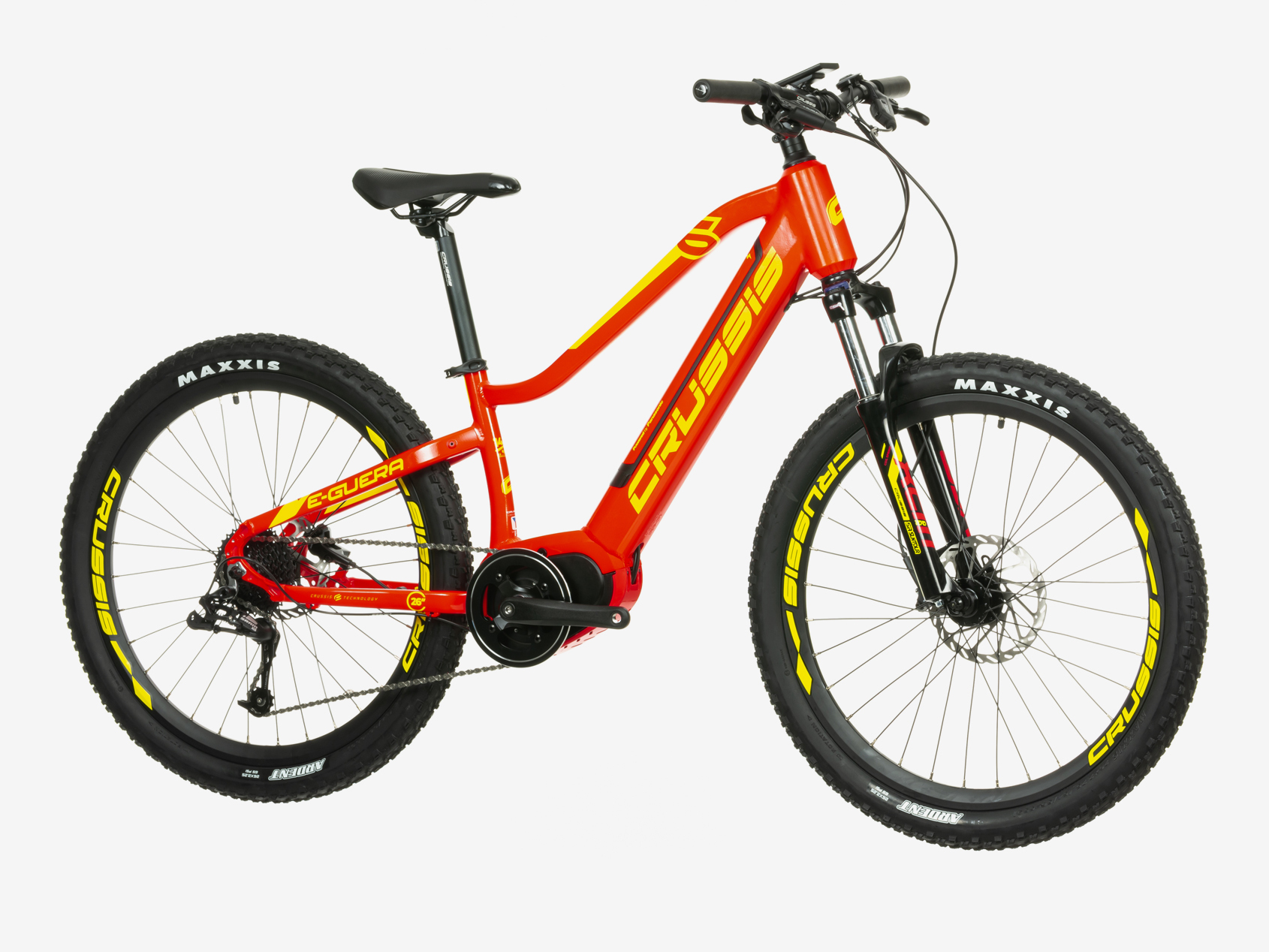

We have developed the Crussis e-Guera 6.8 e-bike just for you, for your trips through nature, over hills and for exploring the mountains, in places you may not have explored with your bike before.
crussis-horska

Components

Motor

Motor

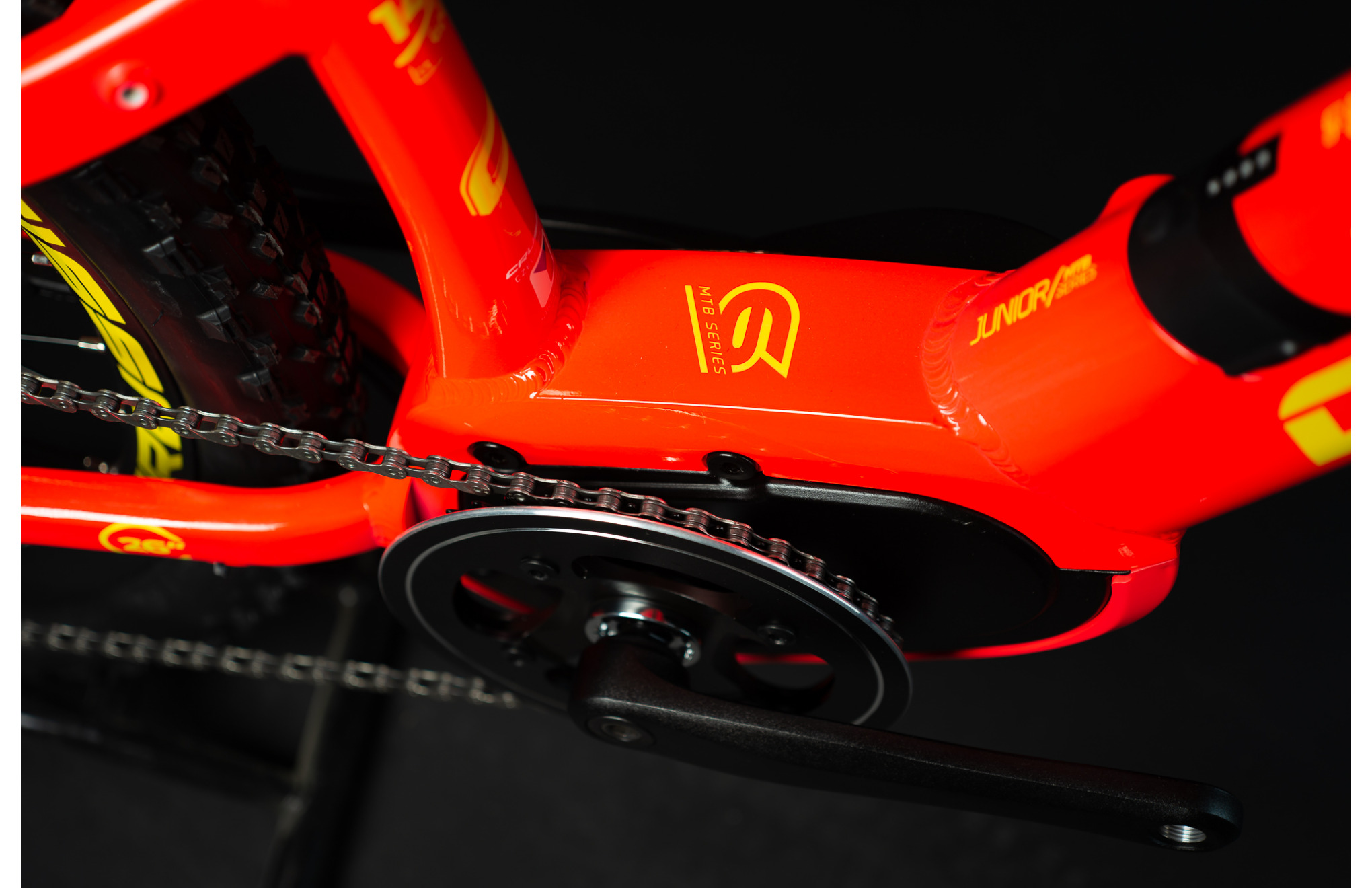

Motor BAFANG Max Drive (M400)

Motor m400 with a nominal power of 250W (max 500W) perfectly balances between torque and power consumption, which is always critical for an e-bike. It offers a really high torque of up to 80 Nm while keeping consumption low. The electric motor is equipped with a torsion sensor. The motor power is regulated by a control unit that constantly evaluates how hard the rider is pedalling. The way it works is that the more power you exert while riding (pedaling), the more the motor helps you.

Battery

Battery

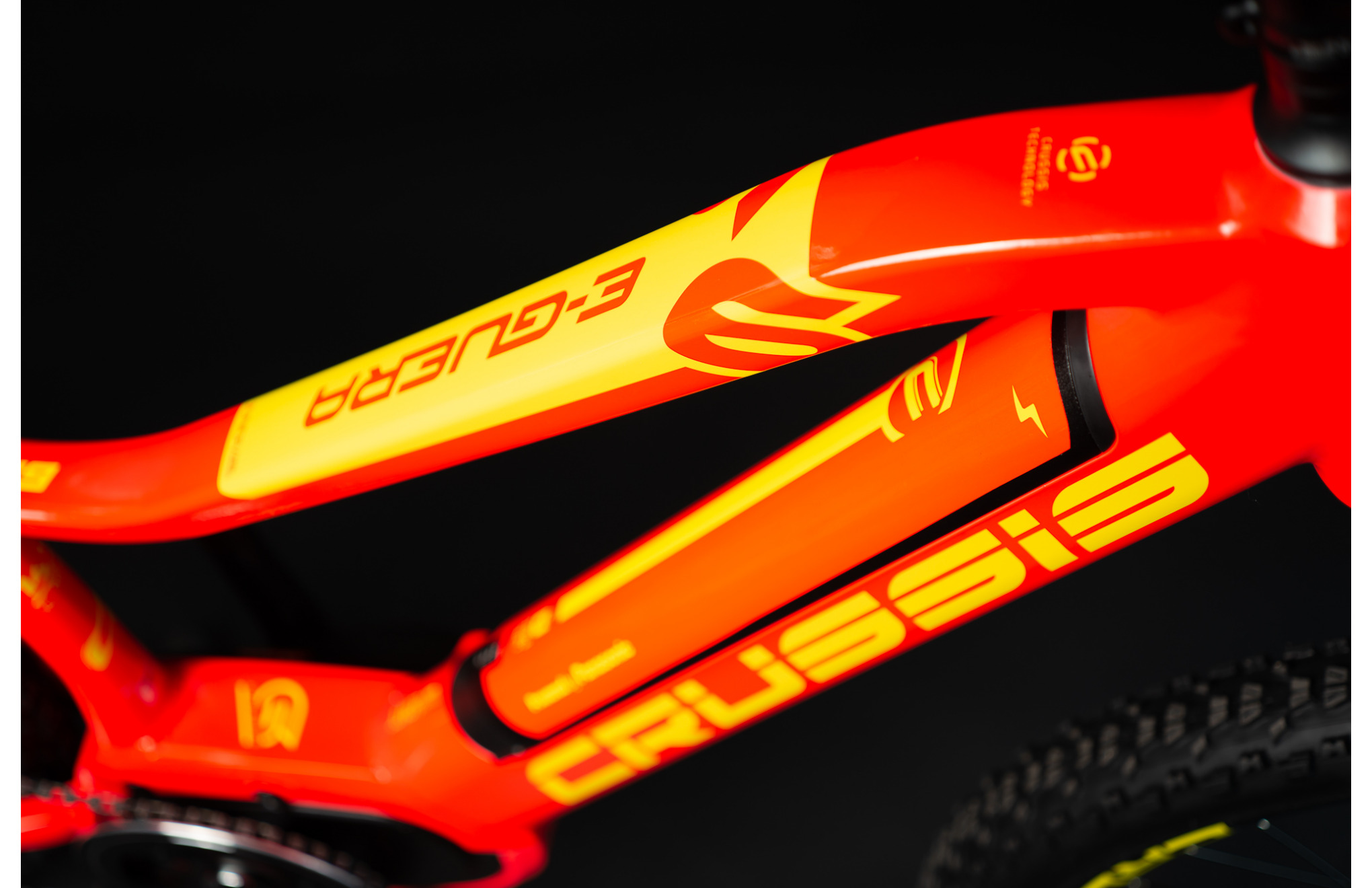

PANASONIC 504 Wh (14 Ah)

The heart of the e-bike's power supply system is a battery with Panasonic 36V / 504 Wh (14 Ah) Li-Ion cells. The battery is capable of taking the e-bike up to 120 km on a single charge. However, it always depends of course on the profile of the track and how the assistance is used.

Display

Display

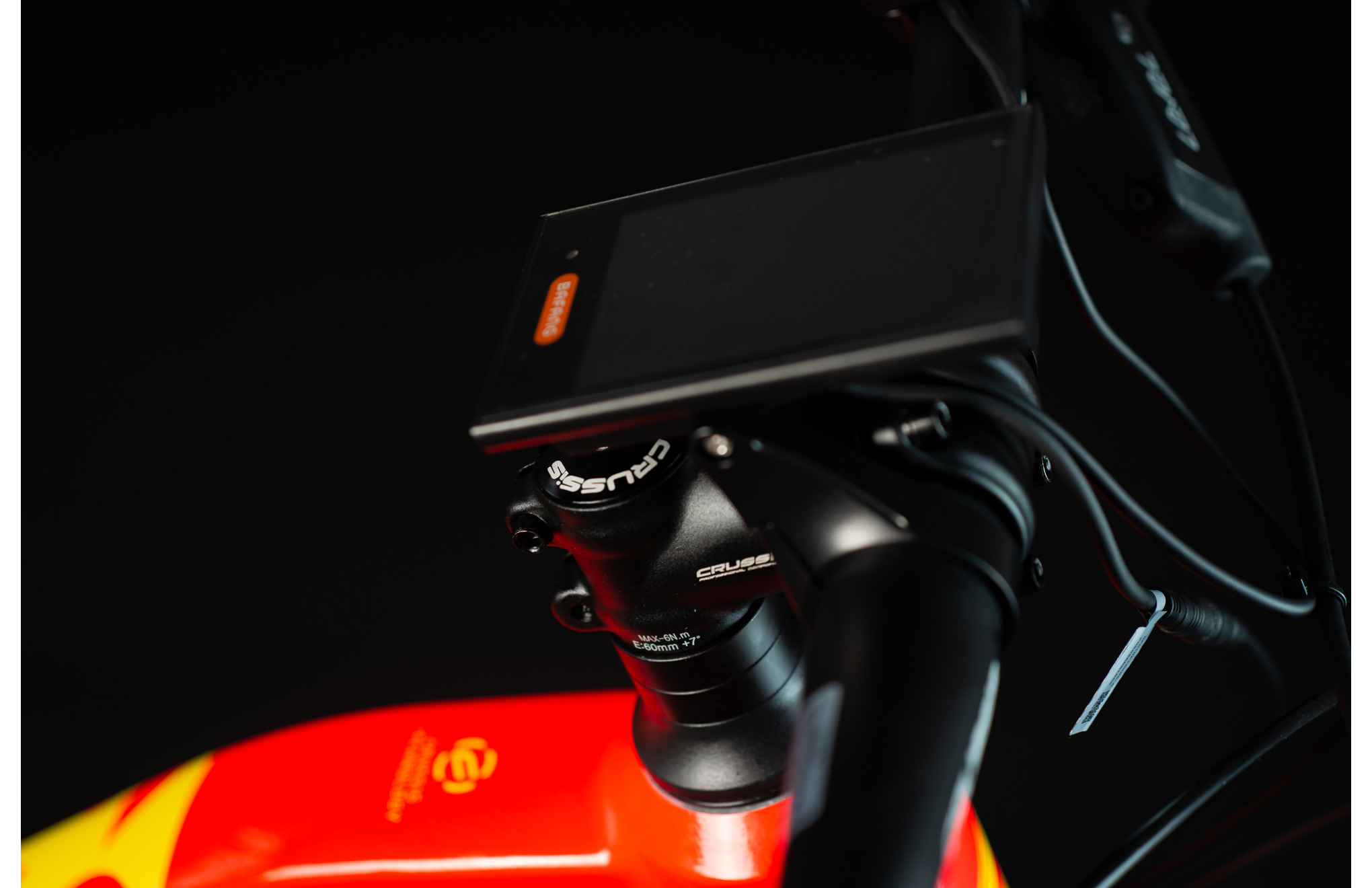

BAFANG LCD display -  colour

The colour LCD display shows not only basic information on battery status and the level of assistance currently in use, but also other data relating to the journey (speed, distance travelled, etc.). So you can leave your bike computer at home, you won't need it anymore. The display is also equipped with a USB connector for charging mobile devices (phone, navigation, lighting, etc.). You can also charge your devices outside of civilization, which can come in handy especially during longer trips.

Suspension Fork

Suspension Fork

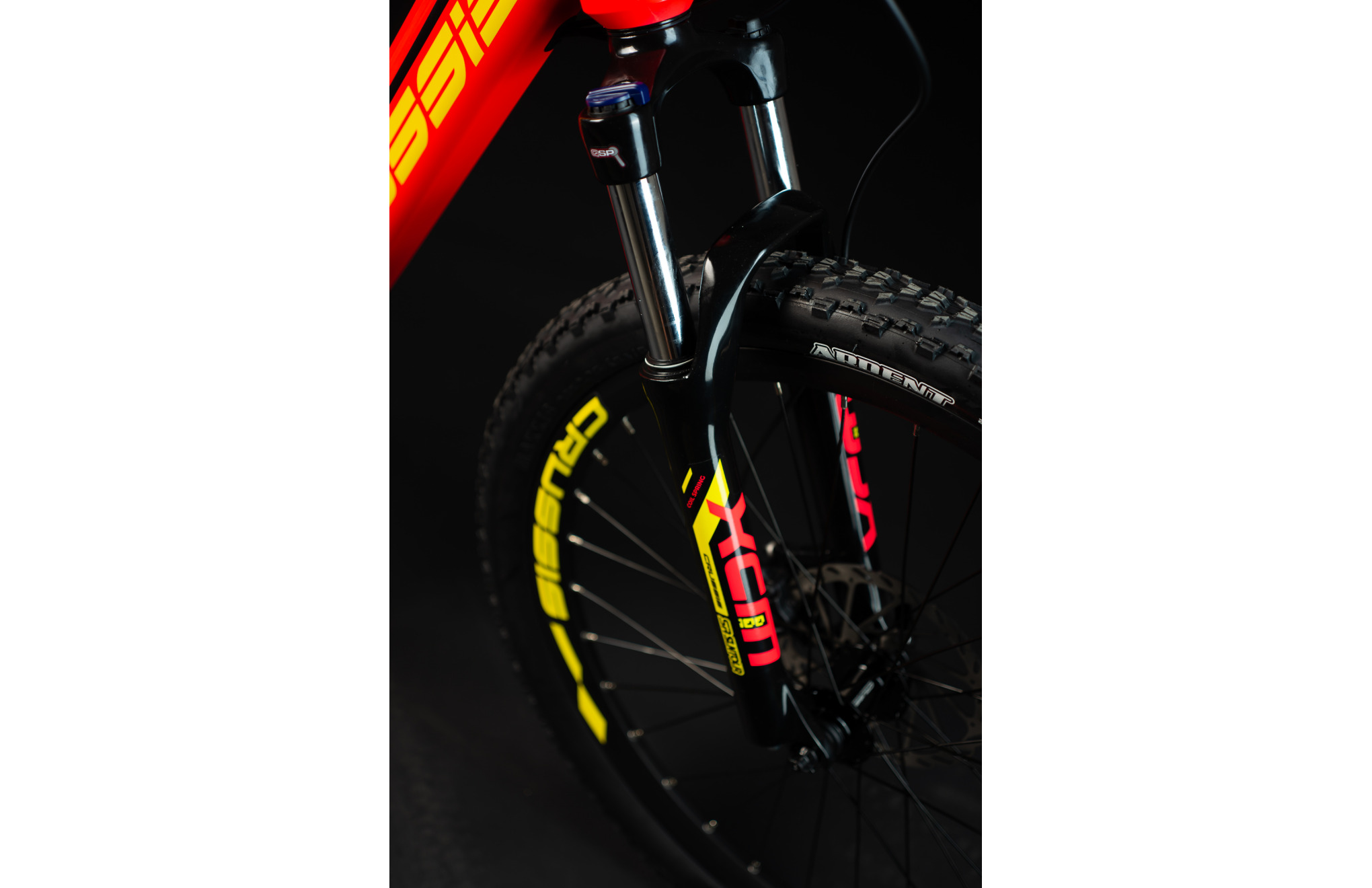

SUNTOUR XCM HLO DS 26"

Forget about uneven terrain - our e-bike with suspension fork SUNTOUR XCM HLO DS 26" comfortably transports you over any terrain. Easy to control thanks to adjustable spring preload, it perfectly absorbs shocks in the terrain and remains stable on the flat. And with the option of locking from the fork crown, you get maximum control on every journey!

crussis-horska3

Technical specifications

Performance Ikona plus Ikona minus

Range

to 120 km

batteries

PANASONIC Li-Ion 36V / 504 Wh (14 Ah)

Motor

BAFANG MAX drive (M400), center drive, 250W (max 500W), 80 Nm

control

BAFANG LCD panel, 5 levels of assistance, color display

control unit

Integrated in the engine

pedal sensor

torsion

charger

2 A (included)

pedals

WELLGO, plastic with reflector

USB port

yes

Walking assistant

yes

Frame Ikona plus Ikona minus

frame

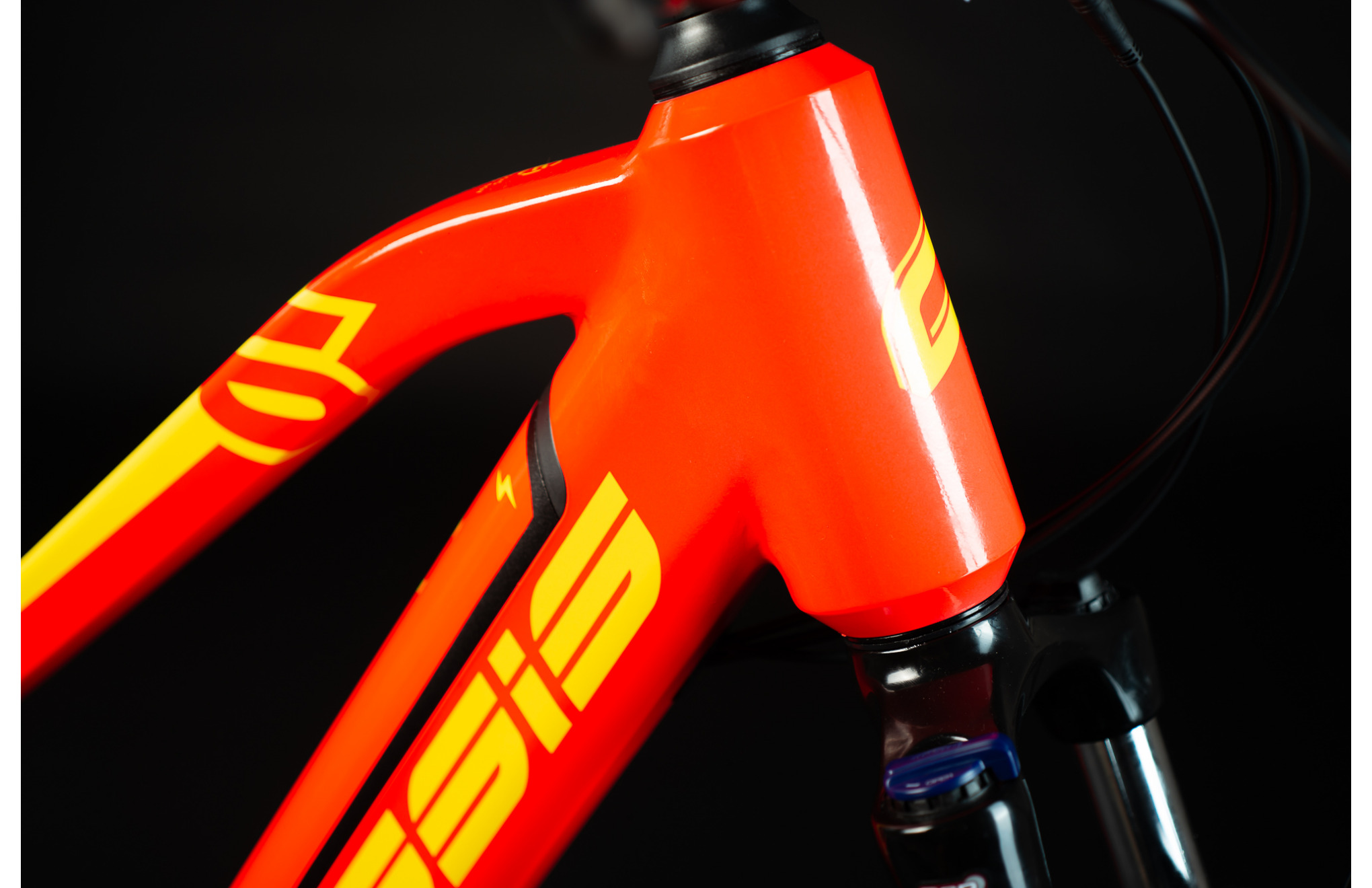

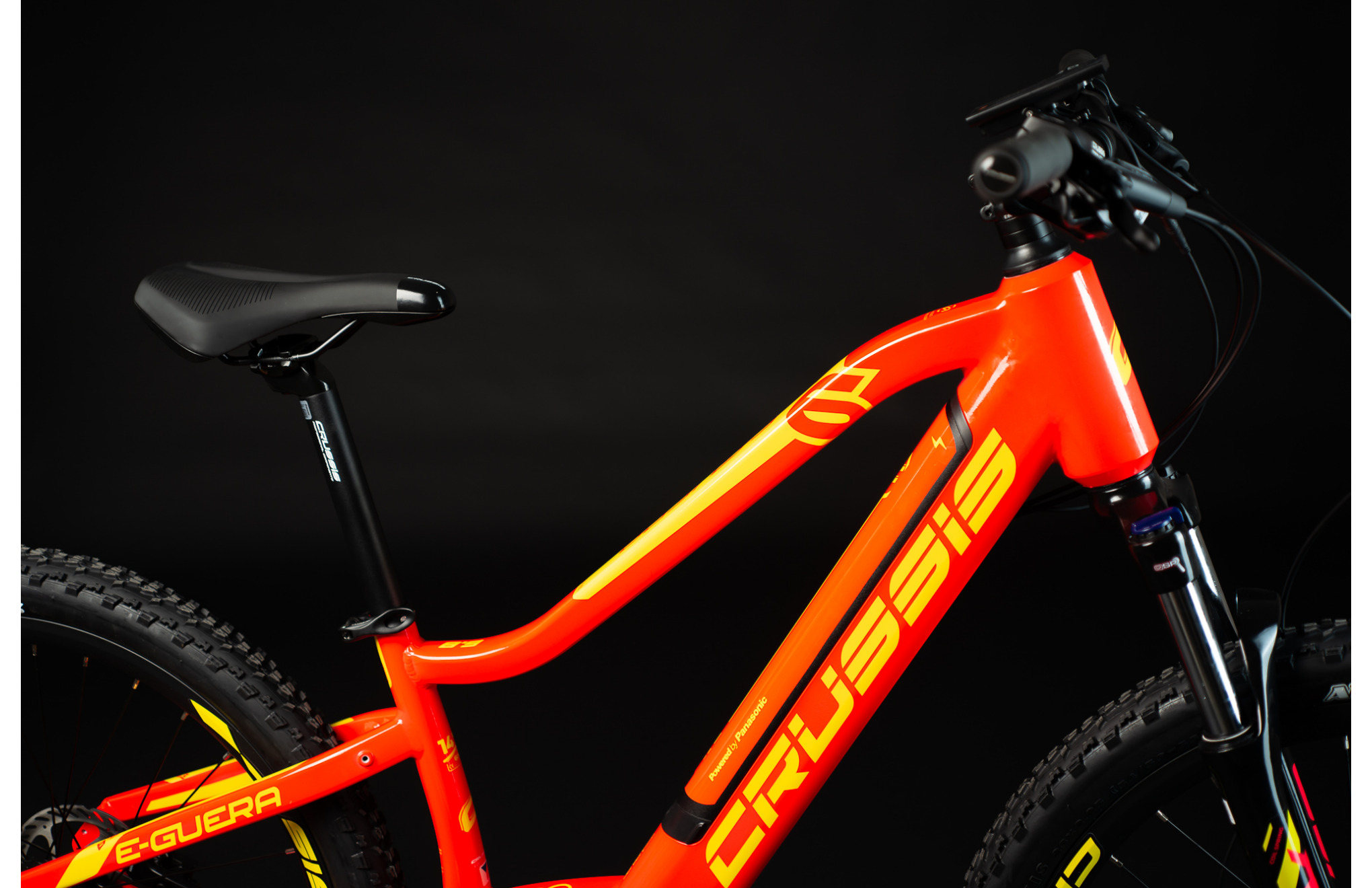

Alu 6061- frame size 14"

Fork

SUNTOUR XCM HLO DS 26", 100 mm travel, fork lock

Wheels Ikona plus Ikona minus

Wheel diameter

26"

Rims

CRUSSIS 26", double walled, lined, 25mm

Hubs

CRUSSIS disc, wreath bearing, 32D

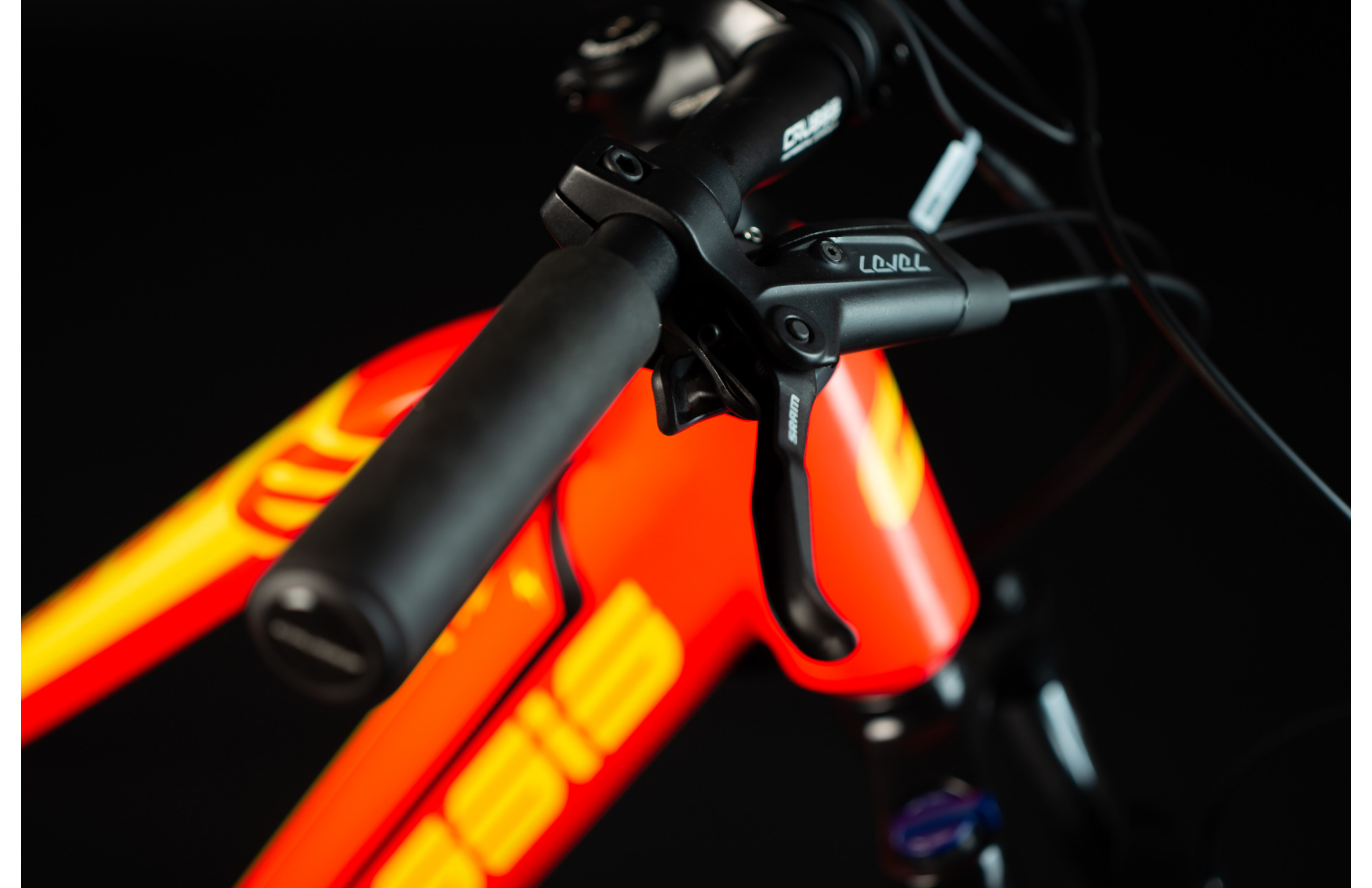

front brake

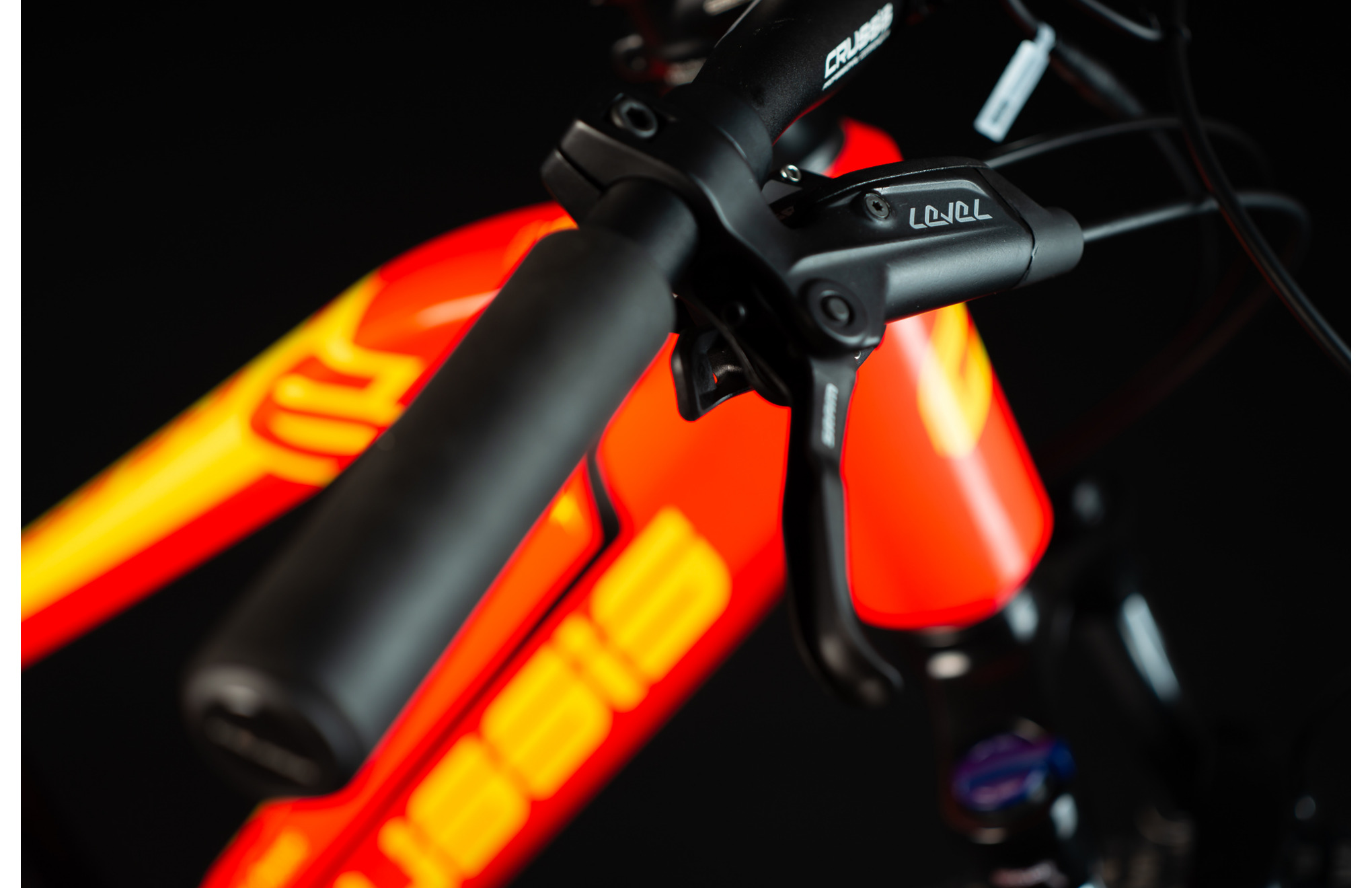

SHIMANO BR-MT200 or SRAM Level, hydraulic, 180mm rotor

rear brake

SHIMANO BR-MT200 or SRAM Level, hydraulic, 160mm rotor

tires

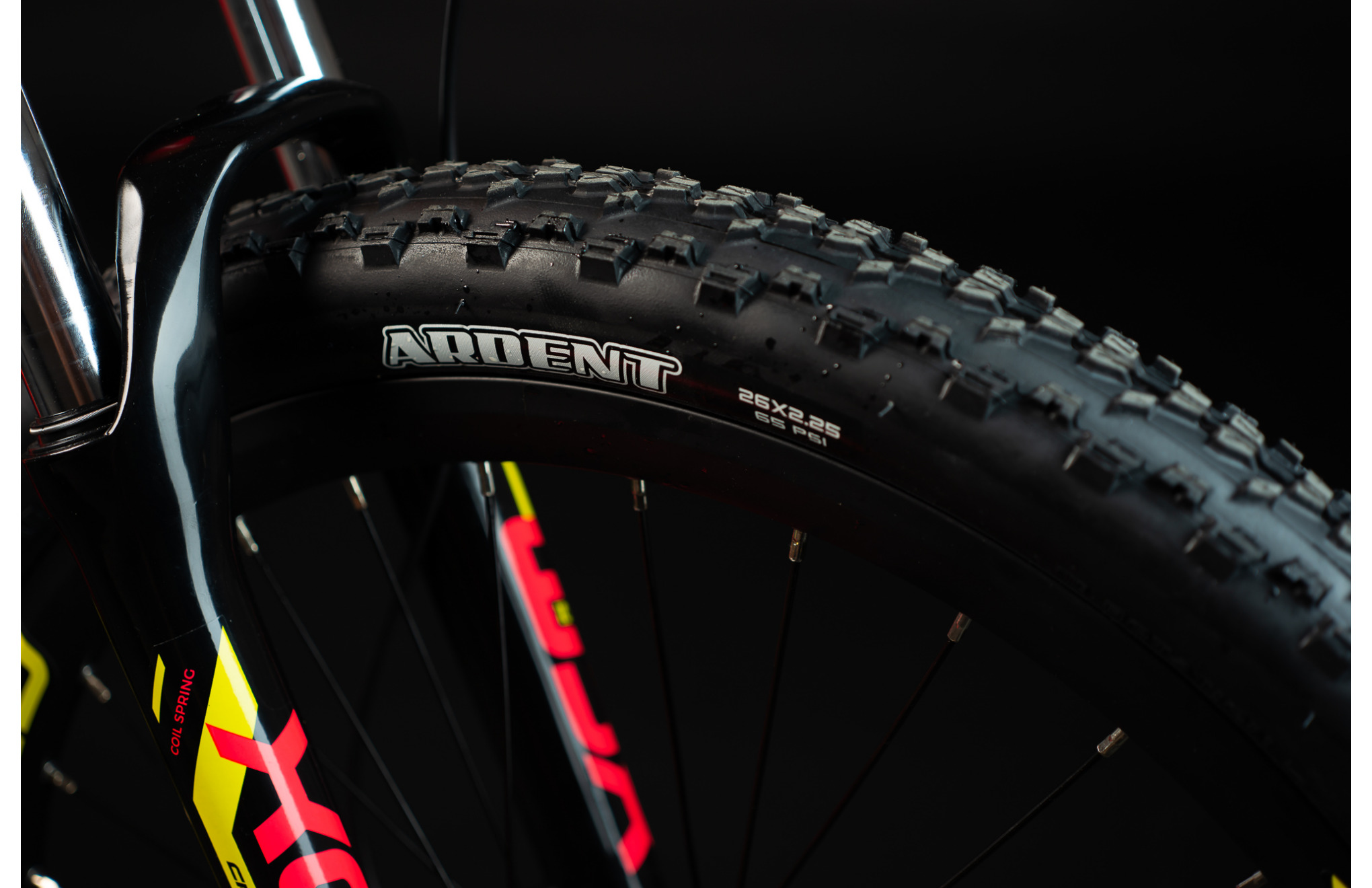

MAXXIS Ardent 26 x 2,25

Load capacity Ikona plus Ikona minus

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,

load capacity

120 kg

Components Ikona plus Ikona minus

handlebars

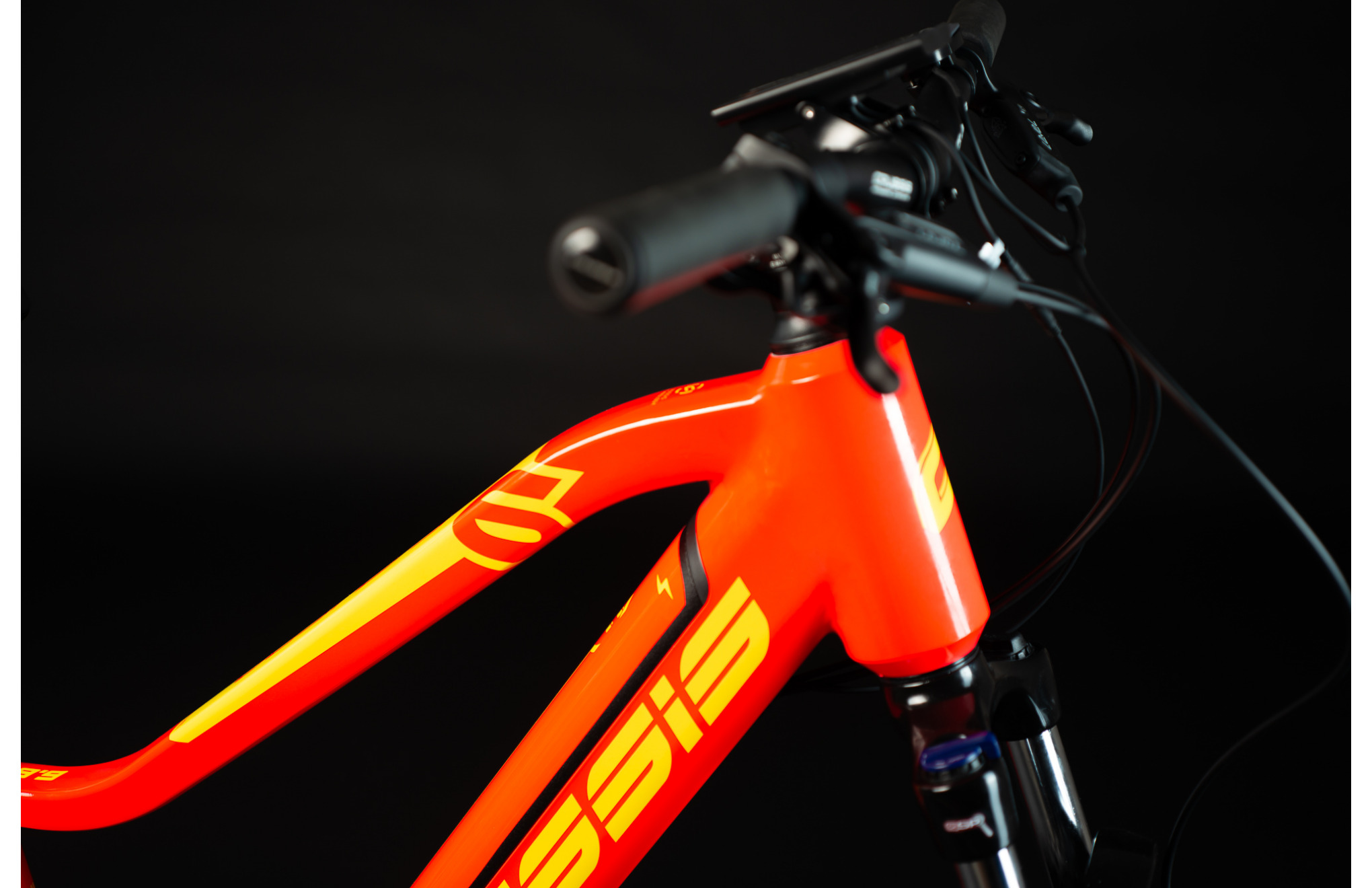

CRUSSIS Al, 640 mm

stem

CRUSSIS Al, 60 mm, solid

grips

CRUSSIS, 100% silicone

head composition

Semi 1 1/8

seat

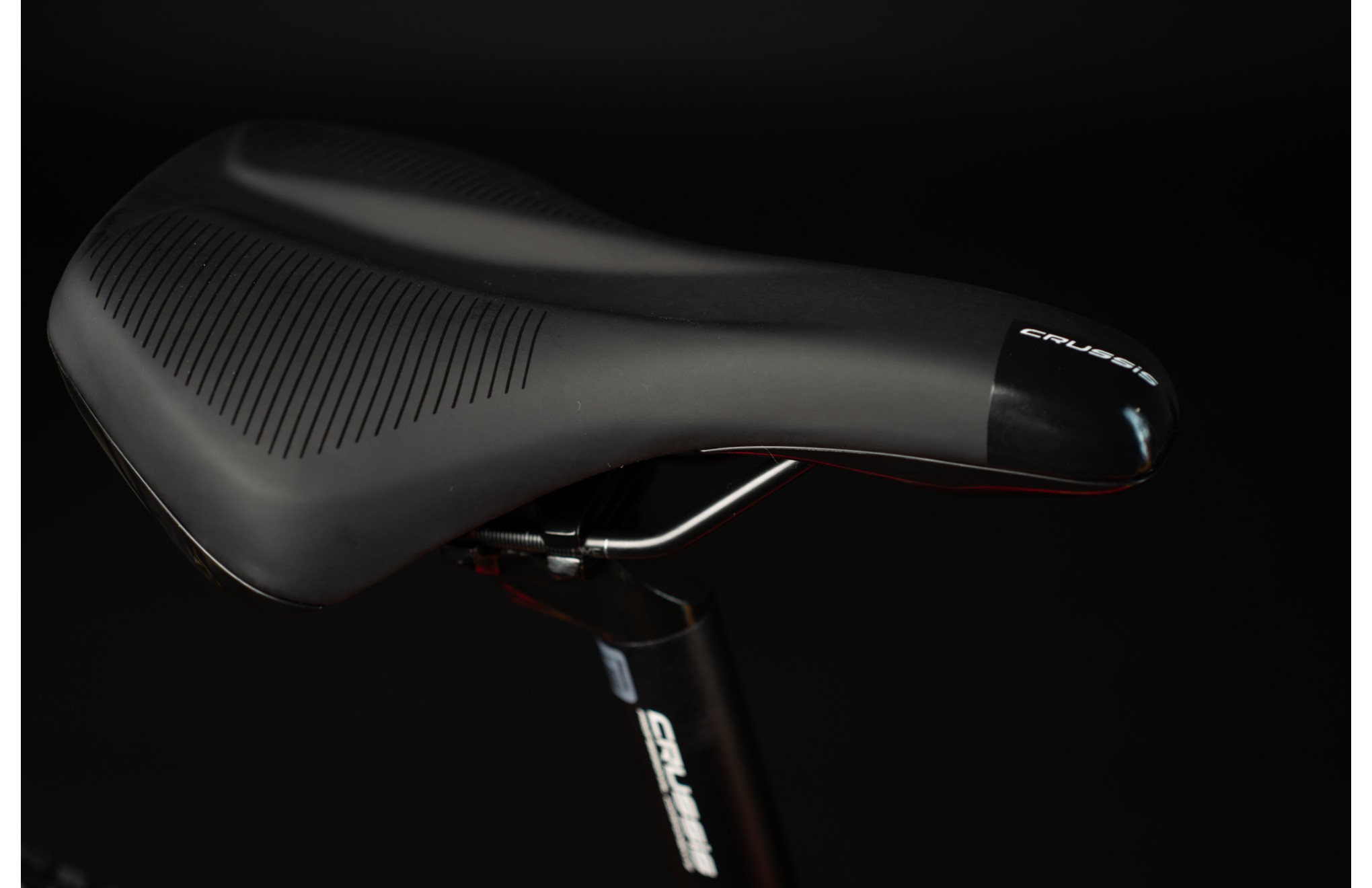

Selle ROYAL

seat post clamp

CRUSSIS with RU Al, black 34,9

seat post

CRUSSIS with lock, 30,4 / 350 mm

Gearing Ikona plus Ikona minus

Number of gears

1 x 9

shifter

SHIMANO Alivio RD-M3100-SGS or SRAM X5, 9 speeds

shifting

SHIMANO Alivio SL-M3100 or SRAM X5, 9 speeds

chain

KMC X9

cassette / multiwheel

Semi 1 1/8

converter and cranks

BAFANG, 38 teeth, 170 mm
