2024

ONE-Full 10.9-M

3.999 EUR

Model 2024
ONE-Full 10.9-M
3D
ONE-Full 10.9-M
ONE-Full 10.9-M
ONE-Full 10.9-M
ONE-Full 10.9-M
ONE-Full 10.9-M
ONE-Full 10.9-M
ONE-Full 10.9-M
ONE-Full 10.9-M
ONE-Full 10.9-M
ONE-Full 10.9-M

Battery / Range

Height of the person Velikost rámu info

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
Výška postavy

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
21” frame
19” frame
17” frame
Vyhledat prodejnu Search for a shop

Info objednávka Unfortunately you can't order a bike online, but you can find the nearest shop here.

Range

to 170 km

Range
Battery capacity

720 Wh (20 Ah)

Battery capacity
Engine performance

95 Nm

Engine performance
Number of gears

1 x 12

Number of gears

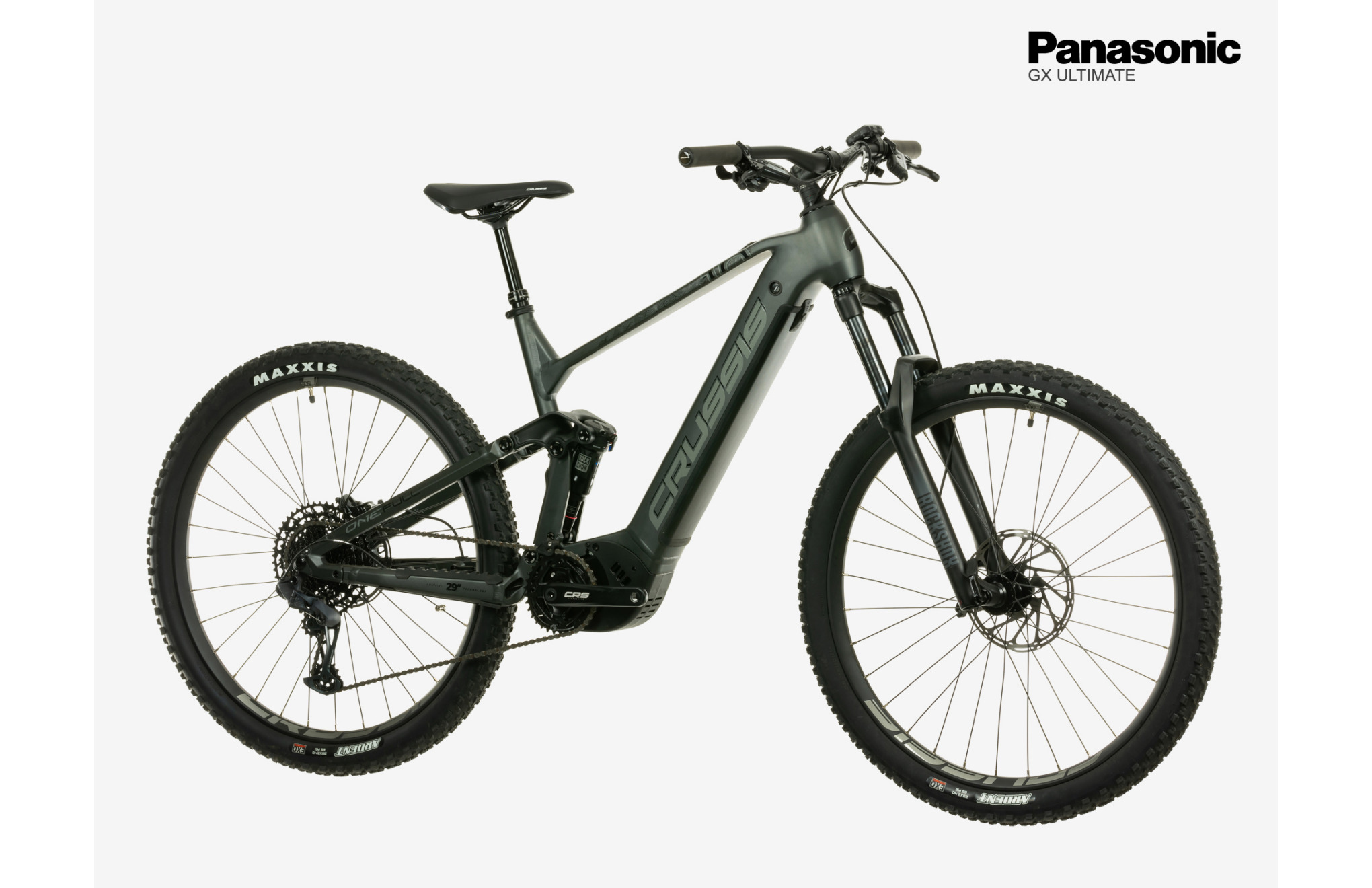

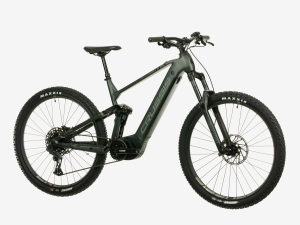

This exceptional e-bike, the ONE-Full 10.9, captivates with its timeless elegance that never goes out of style. With a quality RockShox suspension fork, a powerful Panasonic GX Ultimate motor, and precise brakes from SHIMANO or SRAM, it will provide you with an unmistakable experience in any terrain. But that's not all! With a range of up to 170 km, a battery capacity of 720 Wh (20 Ah), and a motor power of 95 Nm, you'll have plenty of energy and strength to enjoy every moment of your ride. Don't miss the opportunity and embark on a journey with the CRUSSIS ONE-Full 10.9, which will not only bring you freedom but also unforgettable experiences!


components

Components

Motor

Motor

PANASONIC GX Ultimate 95 Nm

Experience the ultimate in Japanese propulsion for your e-bike with the PANASONIC GX Ultimate motor, which offers a staggering 95 Nm of torque and weighs just 2.95 kg, and not just on paper. With this powerful engine, you can achieve maximum pleasure from every ride and overcome even the most difficult terrain. It is highly reliable and won't leave you in the lurch thanks to Japanese quality. Its robustness and performance puts it at the top of its class and is ready to give you the ultimate driving experience. With constant support and power, it can handle even the steepest climbs. The PANASONIC GX Ultimate is a motor unit that will provide you with reliable performance and support even in extreme conditions.

Battery

Battery

LG 720 Wh (20 Ah)

The body of this e-bike pulses with energy from a battery with Li-Ion cells from LG with a capacity of 720 Wh (20 Ah), which powers the entire system. This battery is a real performance giant, allowing the e-bike to reach an incredible 170 km on a single charge. Of course, the specific distance depends on the nature of the route and the way the assistance is used. With this battery, you not only get endless power, but also the freedom to explore everything that interests you without worrying about running out of power. Choose reliability and top performance with LG cells.

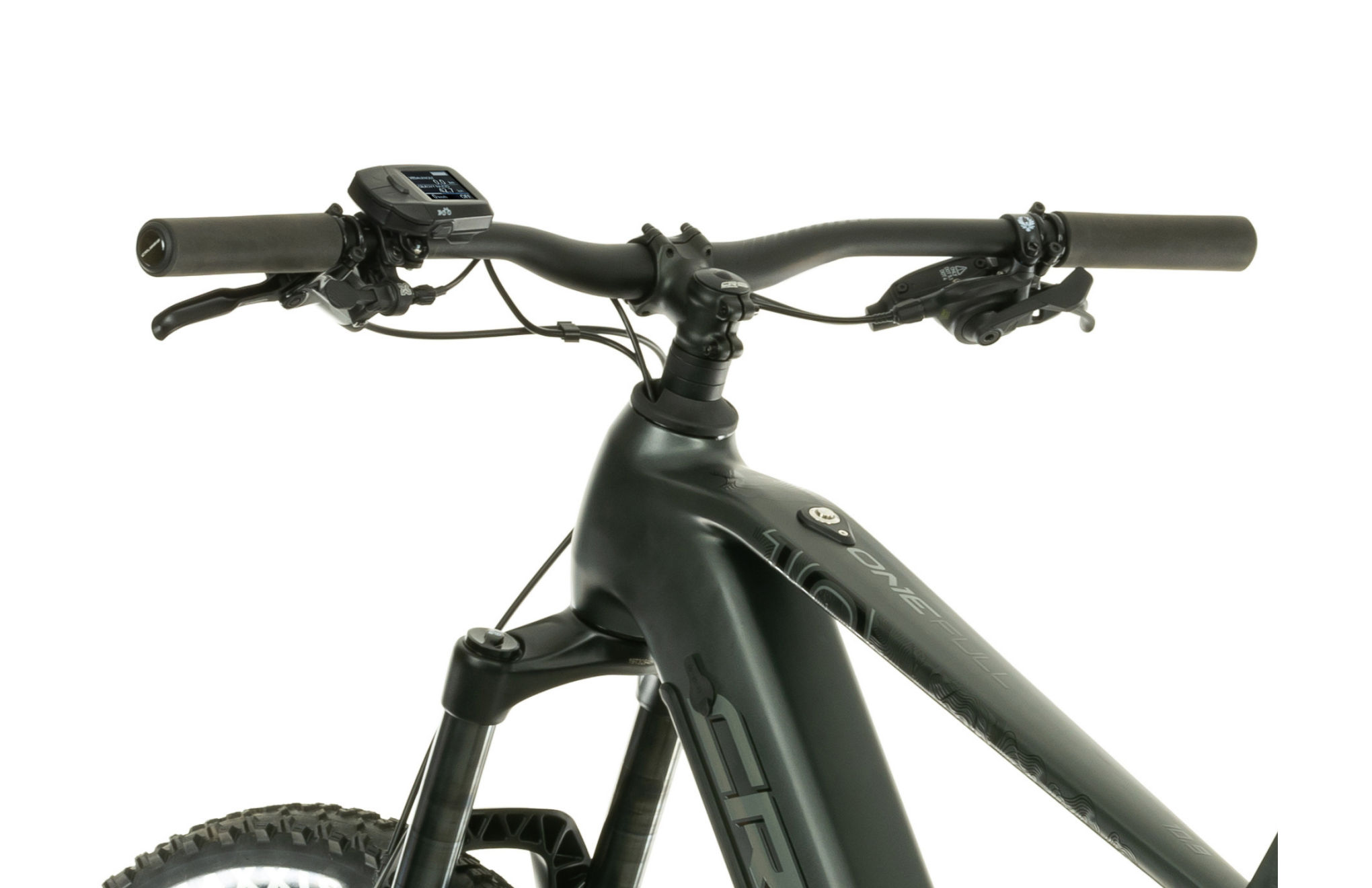

Display

Display

PANASONIC LCD display  - Colour

Control your e-bike with a color LCD display from PANASONIC, located on the left side of the handlebars. The elegantly designed display is equipped with a USB port for convenient charging of your phone. With three assistance modes – HIGH, STANDARD and ECO – you have control over the e-bike's performance. In addition, in the dynamic AUTO mode, the engine reacts to the force with which you press the pedals and automatically adapts the torque, giving you optimal assistance in the full range of engine performance. The display is weatherproof with IPX5 certification, which means high water resistance. Take control of your ride with this cutting-edge display from PANASONIC!

Suspension Fork

Suspension Fork

ROCKSHOX FS Recon
Silver RL Solo Air 29" BOOST
stroke 150 mm

Treat yourself to a comfortable ride with the ROCKSHOX FS Recon Silver RL Solo Air 29" air suspension fork. With 150 mm of travel and simple air pressure adjustment, the fork easily adapts to your weight and riding style. It precisely absorbs off-road bumps and remains stable on the flat. For maximum control you can simply lock the suspension directly from the fork crown. Enjoy a smooth and worry-free ride on any terrain with this fork!

Shock absorber

Shock absorber

ROCKSHOX DELUXE SELECT+ RT
185x55 mm

The all-new Deluxe Select+ offers maximum tunability in a streamlined, easy-to-fit package that begs the question — how do you prefer to ride? The DebonAir+ air spring system provides more tuning potential than ever before, while the new castled "bottom out" bumper reduces harshness from hard hits. For the rides where every gram counts, your bike just became the lap of luxury. The experience is truly Deluxe.

ONE-Full 10.9-M

Technical specifications

Performance Ikona plus Ikona minus

Range

to 170 km

batteries

LG Li-Ion 36V / 720 Wh (20 Ah)

Motor

PANASONIC GX Ultimate, 250W (MAX 600W) 95 Nm

control

PANASONIC LCD panel, color display

control unit

Integrated in the engine

pedal sensor

torsion

charger

4 A (included)

pedals

WELLGO, alu with reflector

USB port

USB Micro-B

Walking assistant

yes

Frame Ikona plus Ikona minus

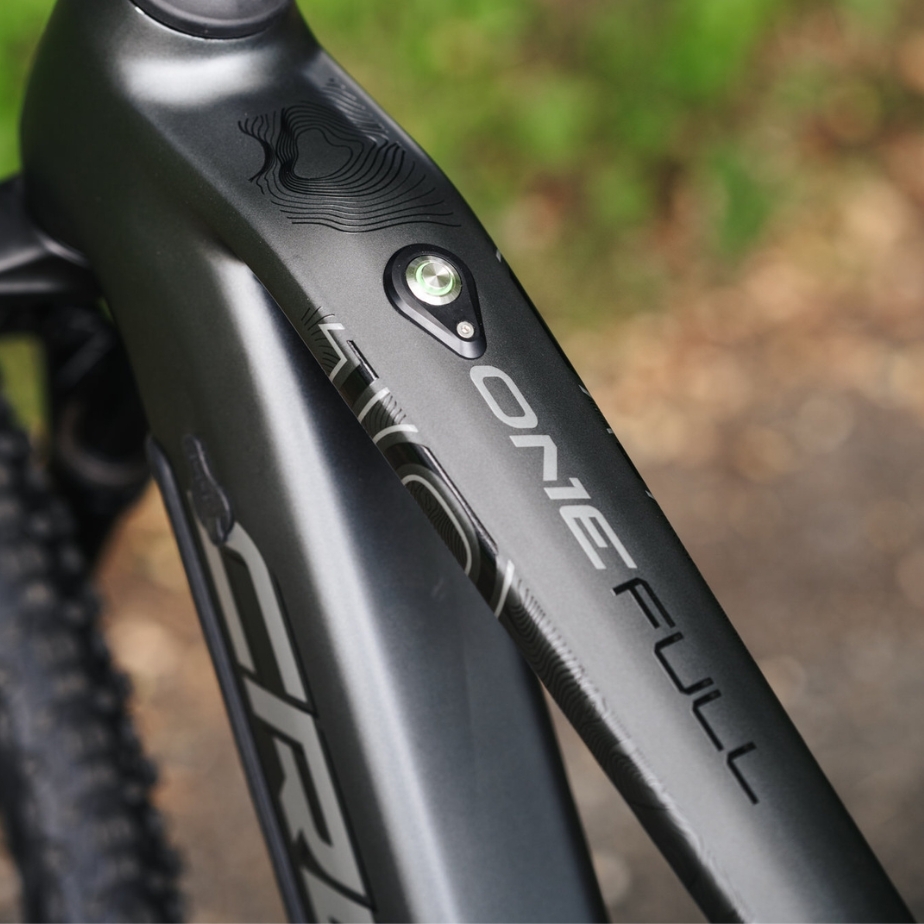

frame

Alu 6061- frame size 17"

Fork

ROCKSHOX FS Recon Silver RL Solo Air 29" BOOST, travel 150 mm, lockout on fork

rear shock absorber

ROCKSHOX DELUXE SELECT+ RT, 185x55 mm

Wheels Ikona plus Ikona minus

Wheel diameter

29"

Rims

CRUSSIS 29" disc, double walled, lined, 30 mm

front brake

SHIMANO Deore BR-MT420, or SRAM Guide T, hydraulic, rotor 200 mm

rear brake

SHIMANO Deore BR-MT420, or SRAM Guide T, hydraulic, rotor 180 mm

tires

MAXXIS ARDENT 29 x 2,40

front hub

CRUSSIS disc, wreath bearing, 32D, BOOST thru axle 15x110 mm

rear hub

CRUSSIS disc, wreath bearing, 32D, BOOST thru axle 12x148 mm

Load capacity Ikona plus Ikona minus

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,

load capacity

120 kg

Components Ikona plus Ikona minus

handlebars

CRUSSIS AL 31,8 mm, 780 mm

stem

CRUSSIS AL 50 mm, 7°

grips

CRUSSIS, 100% silicone

head composition

TAPPERED 1,5"

seat

SELLE ROYAL

seat post clamp

CRUSSIS AL, black 34,9 mm

seat post

X-FUSION MANIC 30,9, dropper post 125 mm or 150 mm

Gearing Ikona plus Ikona minus

Number of gears

1 x 12

shifter

SRAM GX Eagle, 12 speed

shifting

SRAM NX Eagle

chain

SRAM SX Eagle, 12 speed

cassette / multiwheel

SRAM CS-PG1210 Eagle, 11-50z

converter and cranks

SRAM X-SYNC 2 34Z, CRS ISIS 170 mm
