2024

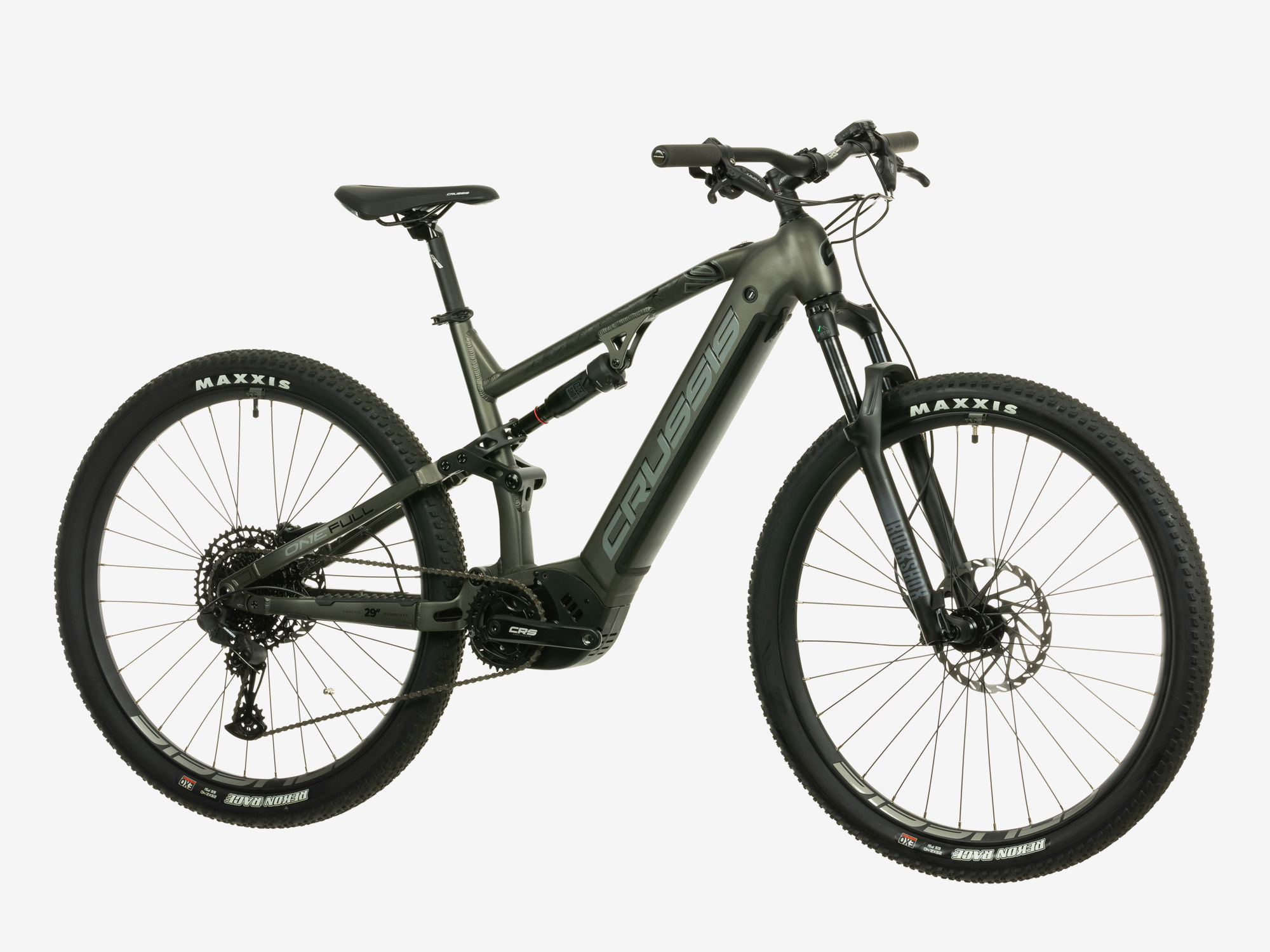

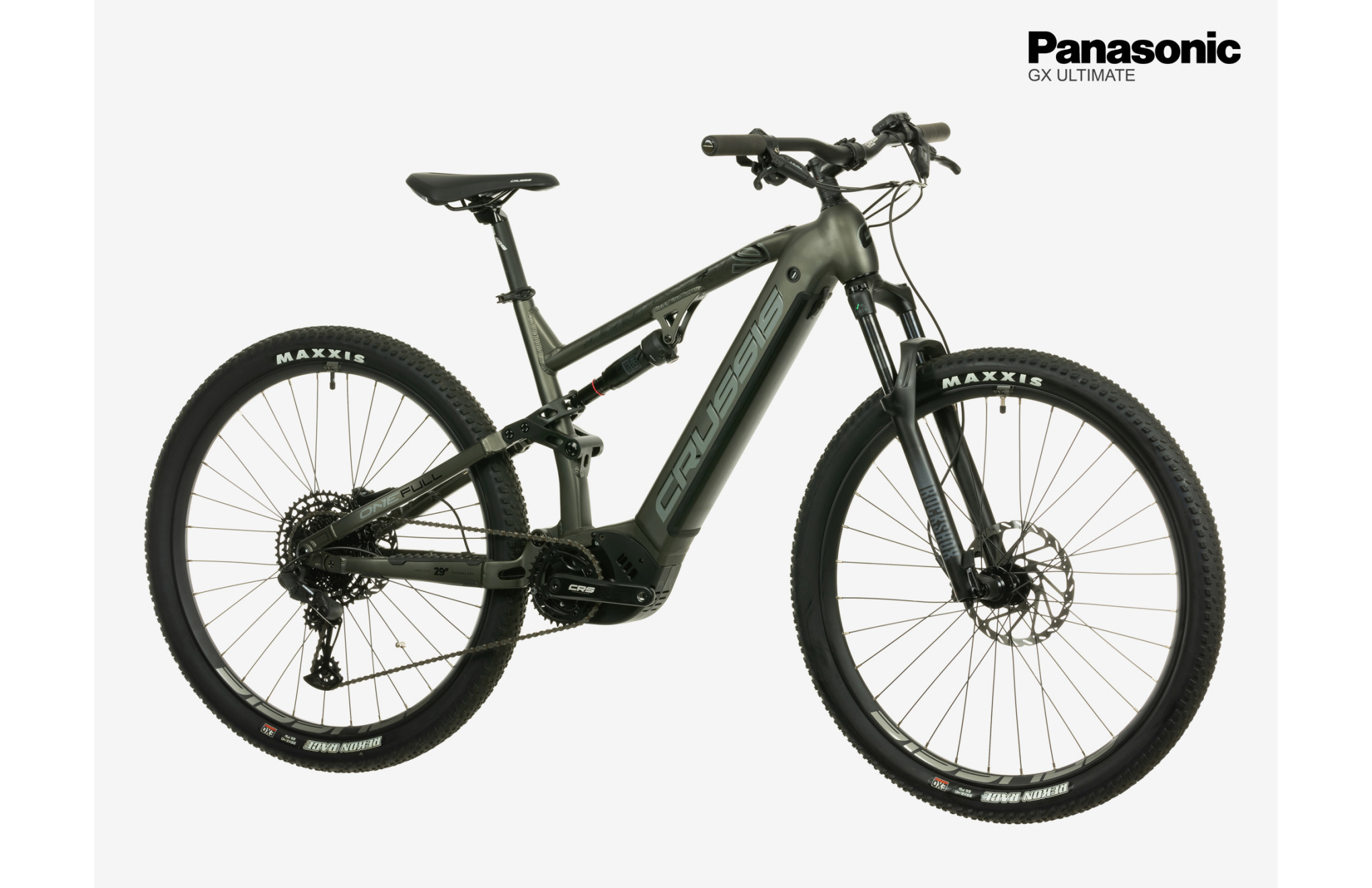

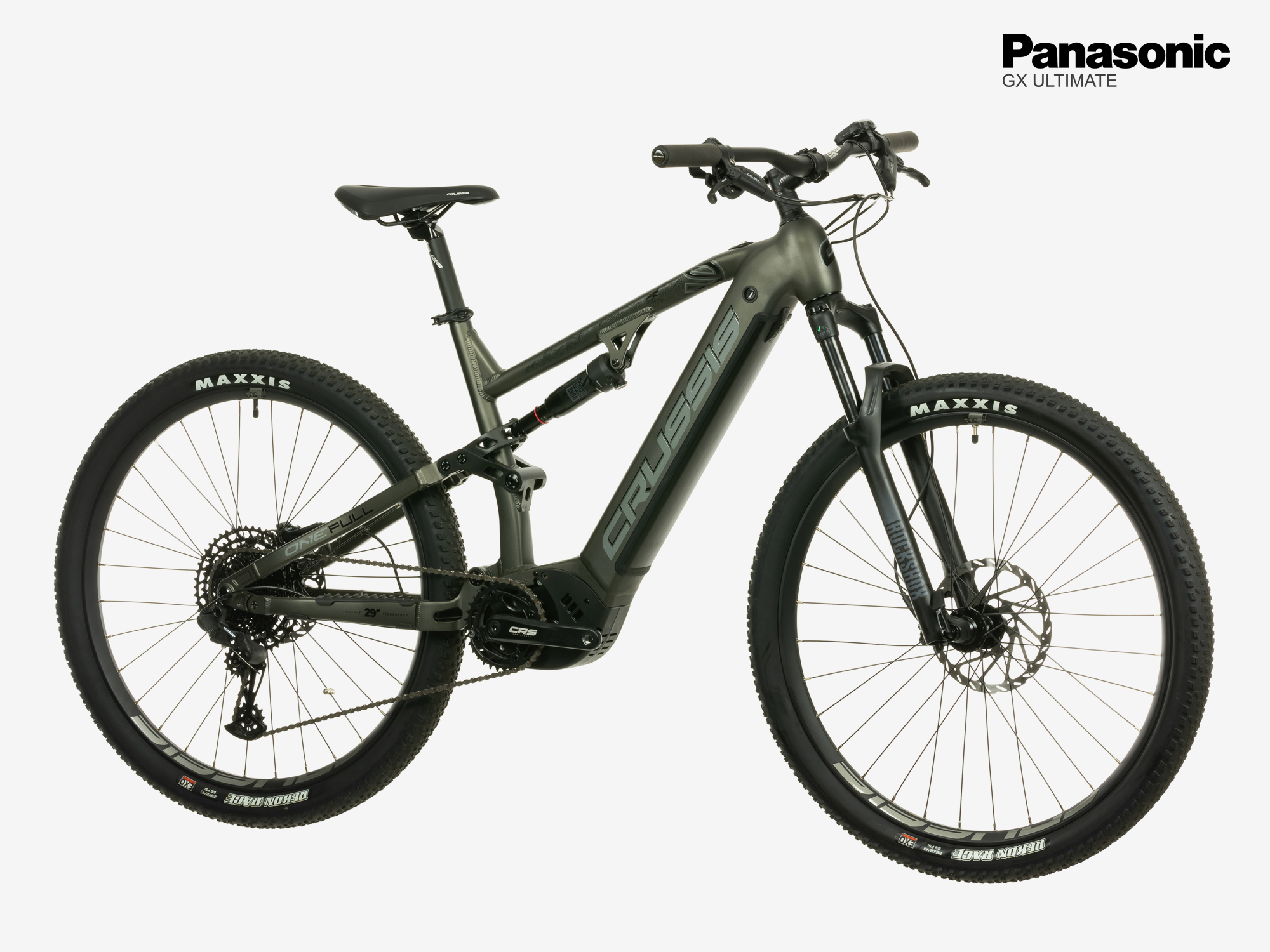

ONE-Full 9.9-M

3.499 EUR

Model 2024
ONE-Full 9.9-M
ONE-Full 9.9-M (17)
ONE-Full 9.9-M (17)
ONE-Full 9.9-M (17)
ONE-Full 9.9-M (17)
ONE-Full 9.9-M (17)
ONE-Full 9.9-M (17)
ONE-Full 9.9-M (17)
ONE-Full 9.9-M

Battery / Range

Height of the person

Výška postavy
Frame size Velikost rámu info

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
21” frame
19” frame
17” frame
Range

to 170 km

Range
Battery capacity

720 Wh (20 Ah)

Battery capacity
Engine performance

95 Nm

Engine performance
Number of gears

1 x 12

Number of gears

Why you'll love it

With the CRUSSIS e-Full 9.9, you'll have a powerful e-bike with a modest design that excels in any terrain. This elegant machine conceals a potent Panasonic GX Ultimate motor and a RockShox suspension fork, ensuring an extraordinary riding experience. Add to that the top-notch components from SRAM and a range of up to 170 km, and you have the recipe for an unforgettable cycling adventure. So don't hesitate, put on your helmet, it's time to hit the road and explore new horizons!



 komponenty_full_9.9_2

Components

Display

Display

PANASONIC LCD display  - Colour

Panasonic LCD display with remote control from the handlebar on the left side. The display is equipped with a USB port for phone charging. In addition to the three assistance modes HIGH, STANDARD and ECO, there is also a dynamic AUTO mode that provides assistance depending on rider torque input. The display is IPX5 rated.

Motor

Motor

PANASONIC GX Ultimate 95 Nm

If you want to maximize your riding pleasure on the e-MTB, here's a best-in-class motor with a torque of 95 Nm and a weight of just 2.95 kg, allowing you to reach the most challenging targets.

Robust and powerful: the GX Ultimate motor is the best in its class. Ready for your ultimate mountain biking experience. With support that is equally as steady as it is powerful, it's perfect for tackling even the steepest climbs.

Even at low cadence, the motor unit delivers a constant and powerful 95 Nm of power, making the GX Ultimate one of the most powerful motor units in its class, and it supports you even in the toughest conditions.

Battery

Battery

LG 720 Wh (20 Ah)

The heart of the e-bike's power supply system is a battery with LG 720 Wh (20 Ah) cells. The battery is capable of taking the e-bike up to 170 km on a single charge. However, it always depends of course on the profile of the track and how the assistance is used.

Suspension Fork

Suspension Fork

ROCKSHOX FS Judy Silver TK Solo Air 29" BOOST, stroke 120 mm

The ROCKSHOX FS Judy Silver TK Solo Air 29" air fork with 100 mm travel is perfectly adapted to the rider's weight. Simply adjust the air pressure in the fork and the e-bike fully adapts to your weight and riding style. The well-adjusted fork then perfectly absorbs shock when riding off-road, while not "flexing" unnecessarily on flat surfaces.

Shock absorber

Shock absorber

ROCKSHOX DELUXE SELECT R, 210x55 mm

The all-new Deluxe Select delivers on the Deluxe family promise of ultimate tunability and control—all in a lightweight package built for the latest breed of capable trail bikes. Featuring the new DebonAir+ air spring with the ability to tune both positive and negative air volume paired with a wider range of Rebound adjustment. Maximized adjustability in a streamlined and minimalist package, accessible at your fingertips. It’s your turn to define how you love to ride.

celoodpruzena_elektrokola_crussis

Technical specifications

Performance Ikona plus Ikona minus

Range

to 170 km

batteries

LG Li-Ion 36V / 720 Wh (20 Ah)

Motor

PANASONIC GX Ultimate, 250W (MAX 600W) 95 Nm

control

PANASONIC LCD panel, color display

control unit

Integrated in the engine

pedal sensor

torsion

charger

4 A (included)

pedals

WELLGO, alu with reflector

USB port

USB Micro-B

Walking assistant

yes

Frame Ikona plus Ikona minus

frame

Alu 6061, frame size 17"

Fork

ROCKSHOX FS Judy Silver TK Solo Air 29" BOOST, travel 120 mm, lockout on fork

rear shock absorber

ROCKSHOX DELUXE SELECT R, 210x55 mm

Wheels Ikona plus Ikona minus

Wheel diameter

29"

Rims

CRUSSIS 29" disc, double walled, lined, 30 mm

front brake

SRAM Level, hydraulic, rotor 200 mm

rear brake

SRAM Level, hydraulic, rotor 180 mm

tires

MAXXIS REKON RACE 29 x 2,40

front hub

CRUSSIS disc, wreath bearing, 32D, BOOST thru axle 15x110 mm

rear hub

CRUSSIS disc, wreath bearing, 32D, BOOST thru axle 12x148 mm

Load capacity Ikona plus Ikona minus

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,

load capacity

120 kg

Components Ikona plus Ikona minus

handlebars

CRUSSIS AL 31,8 mm, 780 mm

stem

CRUSSIS AL 60 mm, 7°

grips

CRUSSIS, 100% silicone

head composition

TAPPERED 1,5"

seat

SELLE ROYAL

seat post clamp

CRUSSIS with QR AL, black 34,9 mm

seat post

CRUSSIS , 30,9, 350 or 400 mm

Gearing Ikona plus Ikona minus

Number of gears

1 x 12

shifter

SRAM SX Eagle, 12 speed

shifting

SRAM SX Eagle

chain

SRAM SX Eagle, 12 speed

cassette / multiwheel

SRAM CS-PG1210 Eagle, 11-50z

converter and cranks

SRAM X-SYNC 2 34Z, CRS ISIS 170 mm
