2023/24

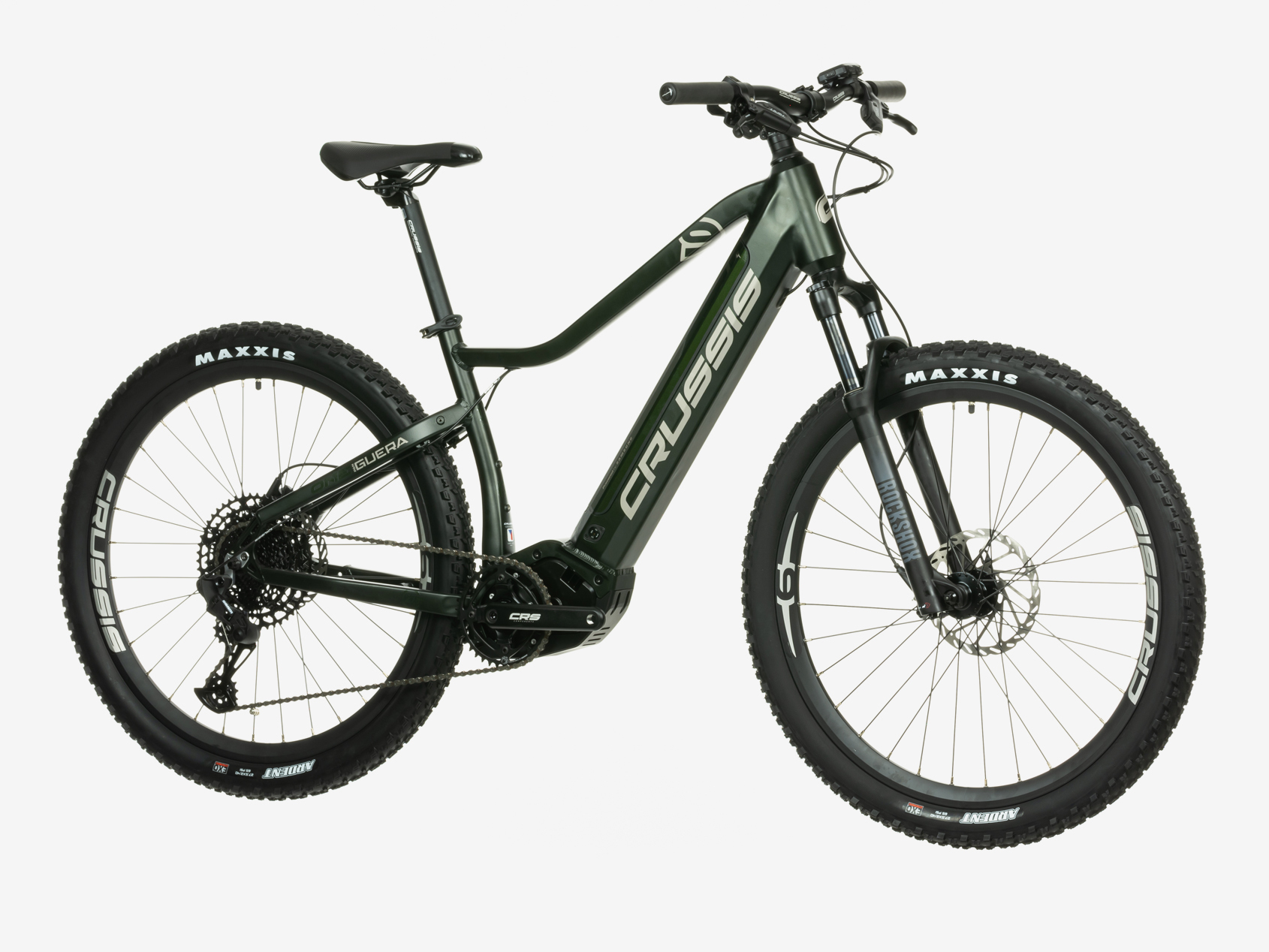

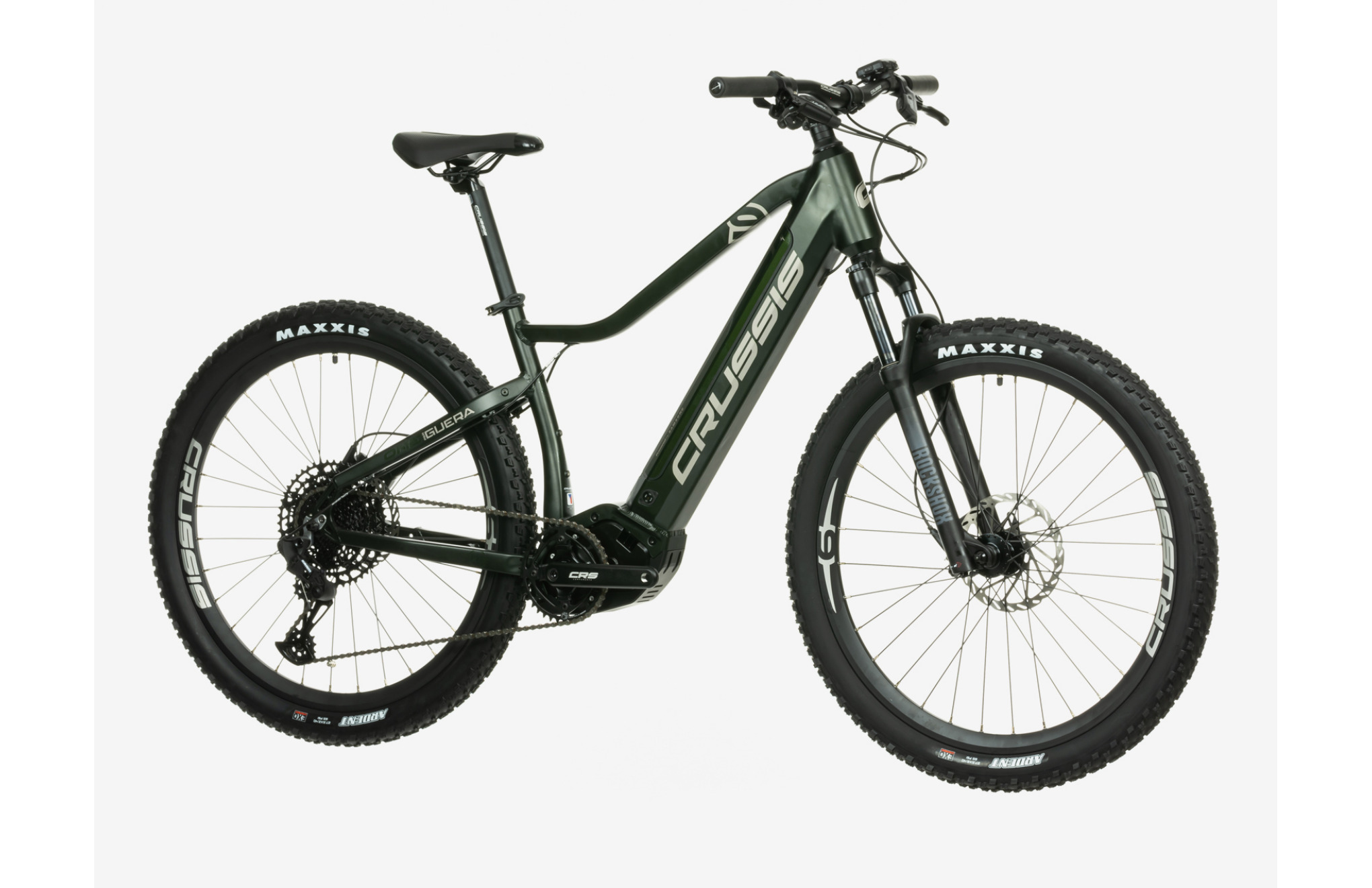

ONE-PAN Guera 9.8-M

2.959 EUR

Model 2023/24
ONE-PAN Guera 9.8-M (17)
3D
ONE-PAN Guera 9.8
ONE-PAN Guera 9.8-1
ONE-PAN Guera 9.8-M (17)
ONE-PAN Guera 9.8-M (17)
ONE-PAN Guera 9.8-M (17)
ONE-PAN Guera 9.8-M (17)
ONE-PAN Guera 9.8-M (17)
ONE-PAN Guera 9.8-M (17)
ONE-PAN Guera 9.8-M (17)
ONE-PAN Guera 9.8-M (17)
ONE-PAN Guera 9.8-M (17)
ONE-PAN Guera 9.8-M (17)
ONE-PAN Guera 9.8-M (17)

Battery / Range

Height of the person Velikost rámu info

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
Výška postavy

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
19” frame
17” frame
Range

to 170 km

Range
Battery capacity

720 Wh (20 Ah)

Battery capacity
Engine performance

95 Nm

Engine performance
Number of gears

1 x 12

Number of gears
Looking for an e-bike packed with cool features? Then the Crussis ONE-PAN-Guera 9.8-M with motor PANASONIC GX Ultimate may be the choice for you. The Crussis PAN-Guera 9.8-M e-bike with a more powerful battery is ready to go with you! If you still want a model with a more colorful design, take a look at the PAN-Guera 9.8-M e-bike.
crussis-horska2

Components

Motor

Motor

PANASONIC GX Ultimate 95 Nm

Experience the ultimate in Japanese propulsion for your e-bike with the PANASONIC GX Ultimate motor, which offers a staggering 95 Nm of torque and weighs just 2.95 kg, and not just on paper. With this powerful engine, you can achieve maximum pleasure from every ride and overcome even the most difficult terrain. It is highly reliable and won't leave you in the lurch thanks to Japanese quality. Its robustness and performance puts it at the top of its class and is ready to give you the ultimate driving experience. With constant support and power, it can handle even the steepest climbs. The PANASONIC GX Ultimate is a motor unit that will provide you with reliable performance and support even in extreme conditions.

Baterie

Baterie

SAMSUNG 720 Wh (20 Ah)

The heart of the e-bike's power supply system is a battery with Samsung 36V / 720 Wh (20 Ah) Li-Ion cells. The battery is capable of taking the e-bike up to 170 km on a single charge. However, it always depends of course on the profile of the track and how the assistance is used.

Display

Display

PANASONIC LCD display  - Colour

Control your e-bike with a color LCD display from PANASONIC, located on the left side of the handlebars. The elegantly designed display is equipped with a USB port for convenient charging of your phone. With three assistance modes – HIGH, STANDARD and ECO – you have control over the e-bike's performance. In addition, in the dynamic AUTO mode, the engine reacts to the force with which you press the pedals and automatically adapts the torque, giving you optimal assistance in the full range of engine performance. The display is weatherproof with IPX5 certification, which means high water resistance. Take control of your ride with this cutting-edge display from PANASONIC!

Gearing

Gearing

SRAM SX Eagle, 12 speed

Eagle™ technology from SRAM delivers smoother, more precise shifting with exceptional reliability. Eagle™ technology is revolutionizing MTB by offering cyclists a single-speed drivetrain that's designed to be just right - lightweight, durable, intuitive handling and a range of gears for all-terrain riding. Eagle™. The SX Eagle™ with 12 speeds is here to make it easier than ever for more cyclists to access the benefits of the Eagle™ system.

Suspension Fork

Suspension Fork

ROCKSHOX FS Judy Silver TK Solo Air 27,5"

Treat yourself to a comfortable ride with the ROCKSHOX FS Judy Silver TK Solo Air 27.5" air-suspended fork. With 100 mm of travel and simple air pressure adjustment, the fork easily adapts to your weight and riding style. It precisely absorbs off-road shocks and remains stable on the flat. For for maximum control you can simply lock the suspension directly from the fork crown. Enjoy a smooth and carefree ride on any terrain with this fork!

crussis-horska3

Technical specifications

Performance Ikona plus Ikona minus

Range

to 170 km

batteries

SAMSUNG Li-Ion 36V / 720 Wh (20 Ah)

Motor

PANASONIC GX Ultimate, 250W (MAX 600W) 95 Nm

control

PANASONIC LCD panel, color display

control unit

Integrated in the engine

pedal sensor

torsion

charger

4 A (included)

pedals

WELLGO, alu with reflector

USB port

USB Micro-B

Walking assistant

Yes

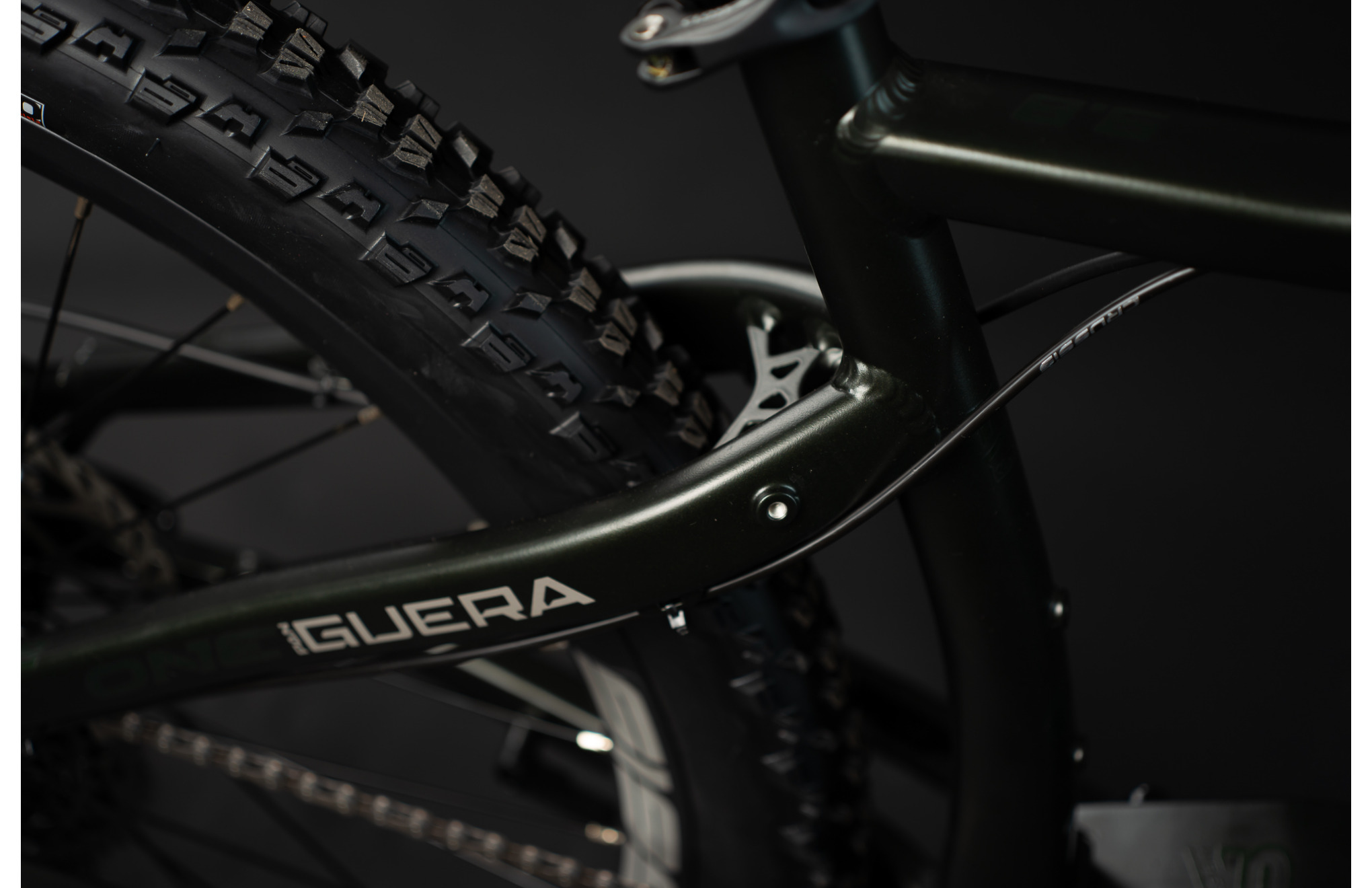

Frame Ikona plus Ikona minus

frame

Alu 6061- frame size 17"

Fork

ROCKSHOX FS Judy Silver TK Solo Air 27,5", 100 mm travel, fork lock

Wheels Ikona plus Ikona minus

Wheel diameter

27,5"

Rims

CRUSSIS 27,5", double walled, lined, 25mm

Hubs

CRUSSIS disc, wreath bearing, 32D

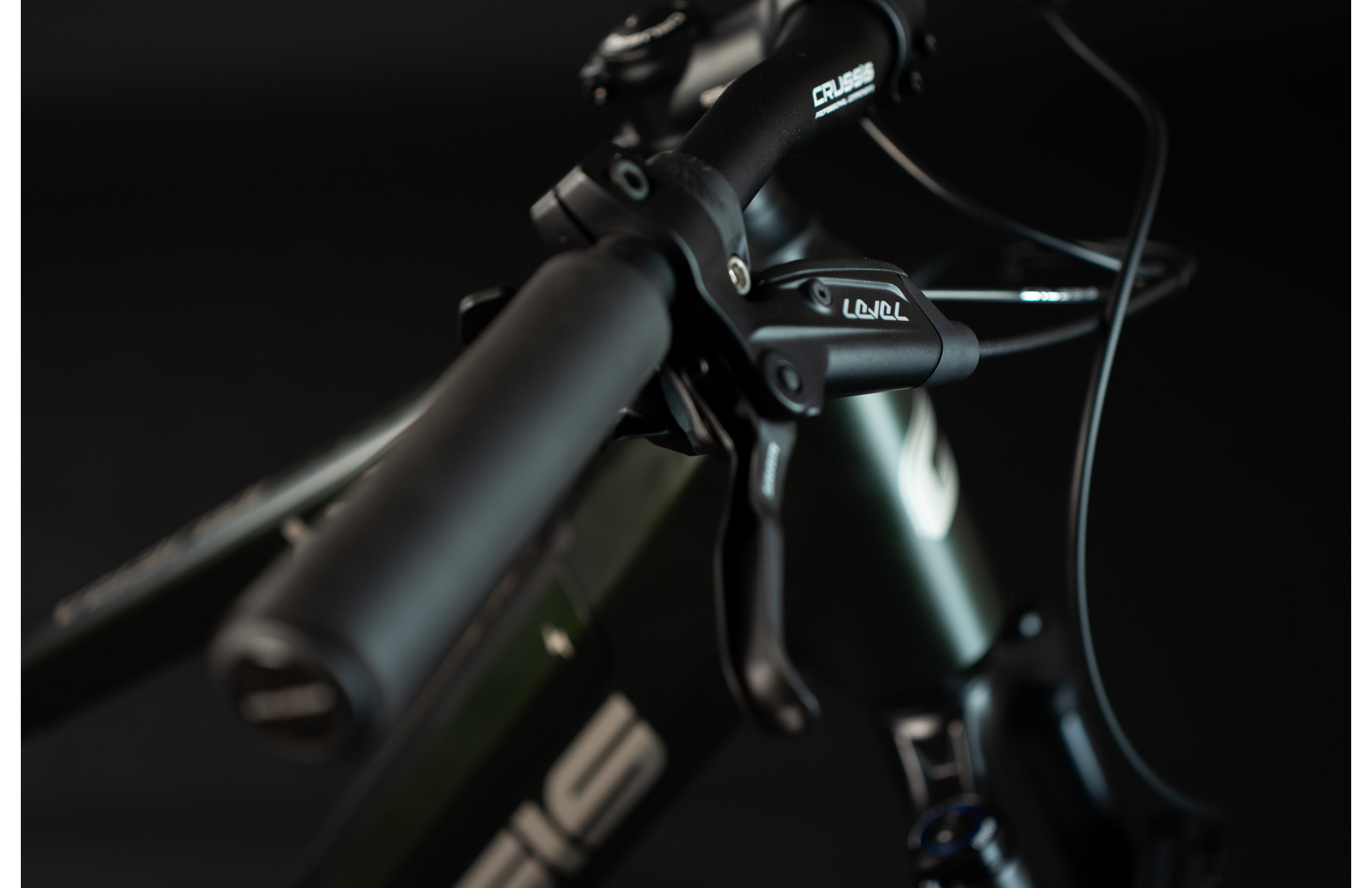

front brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 180 mm rotor

rear brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 160 mm rotor

tires

MAXXIS Ardent 27,5 x 2,40

Load capacity Ikona plus Ikona minus

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,

load capacity

120 kg

Components Ikona plus Ikona minus

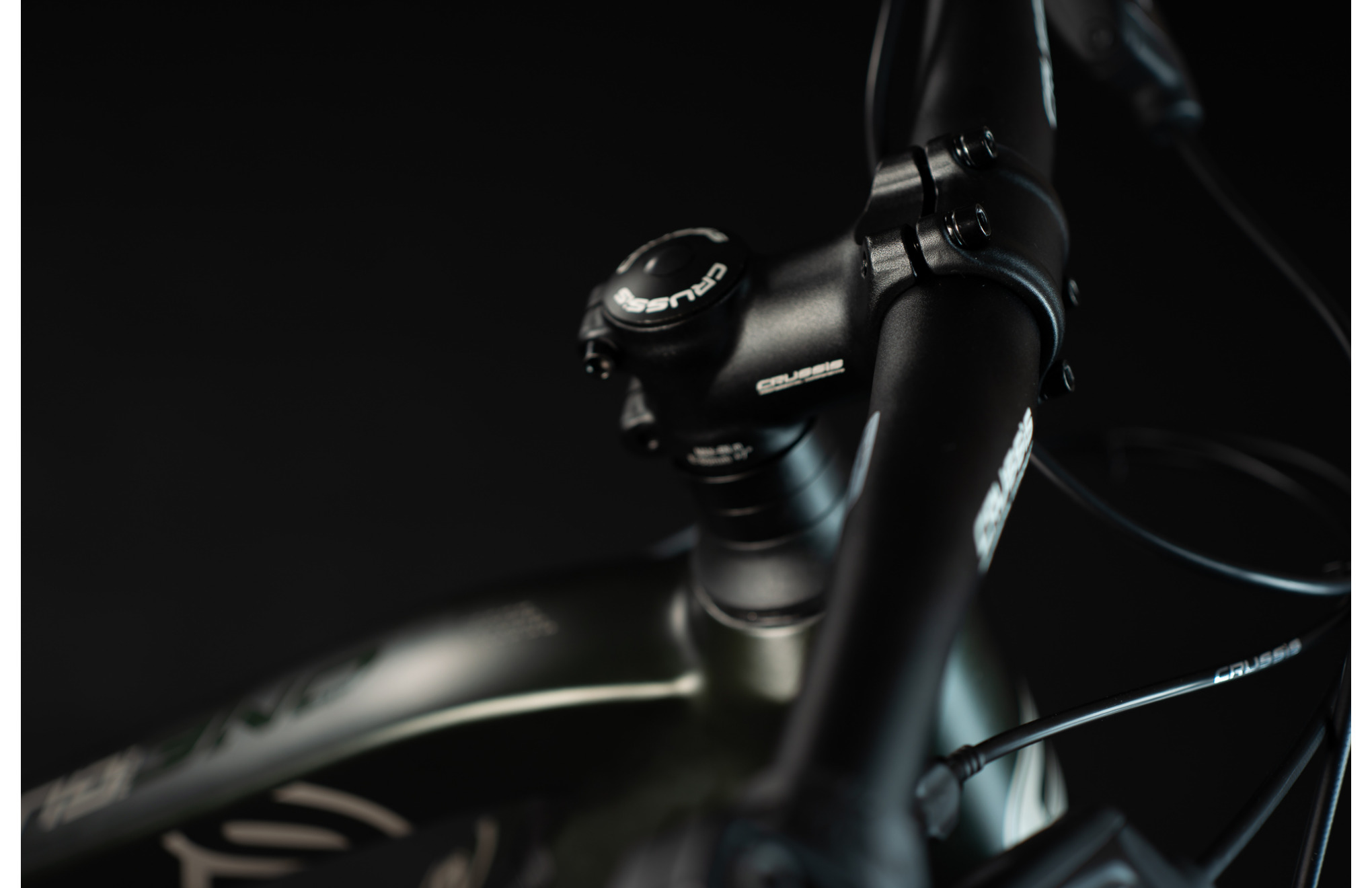

handlebars

CRUSSIS Al, 700 mm

stem

CRUSSIS Al, 60 mm, solid

grips

CRUSSIS, 100% silicone

head composition

Semi 1 1/8

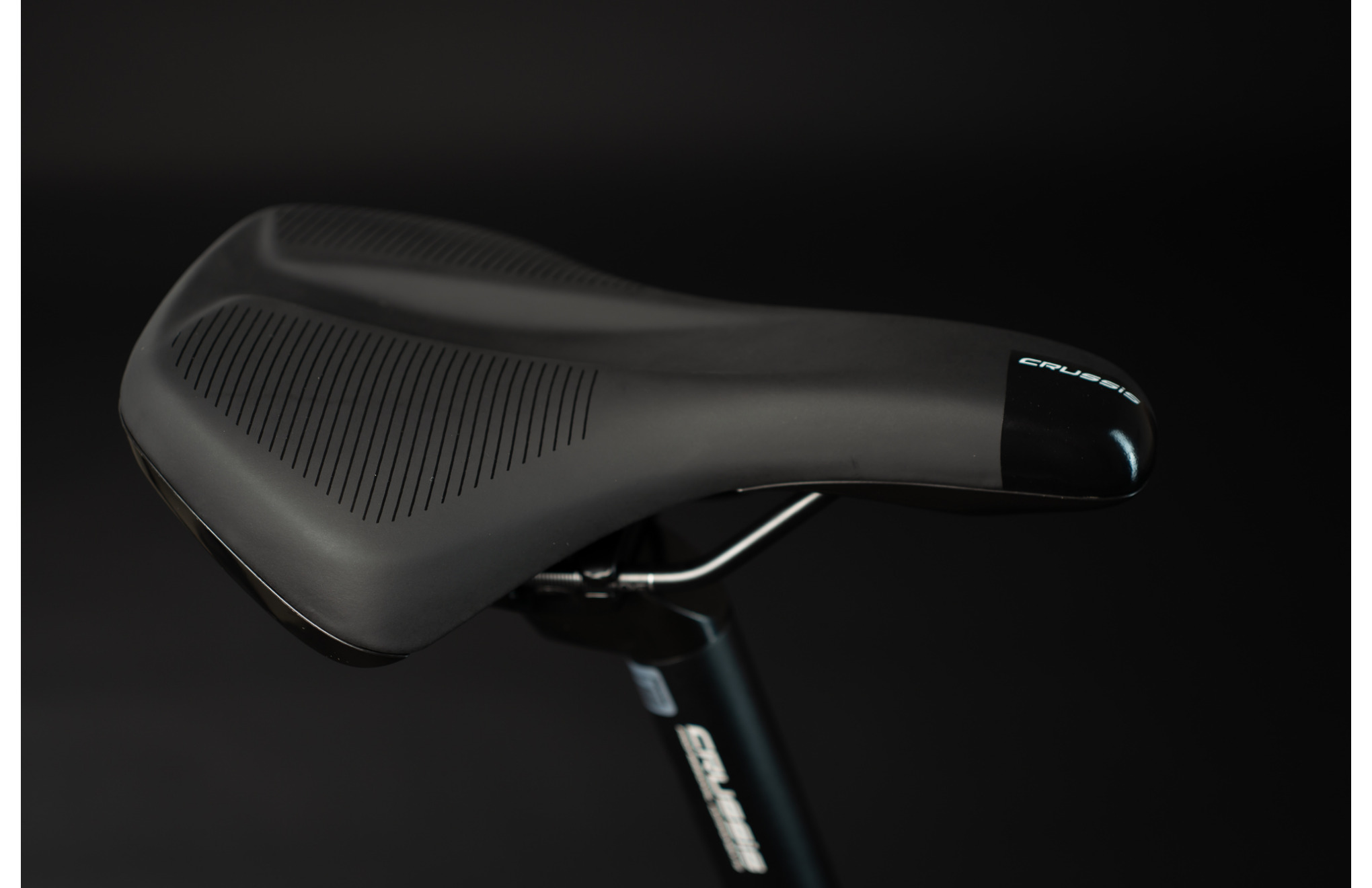

seat

Selle ROYAL

seat post clamp

CRUSSIS with RU Al, black 34,11

seat post

CRUSSIS with lock, 30,4 / 350 mm

Gearing Ikona plus Ikona minus

Number of gears

1 x 12

shifter

SRAM Eagle SX 12s

shifting

SRAM SX Eagle

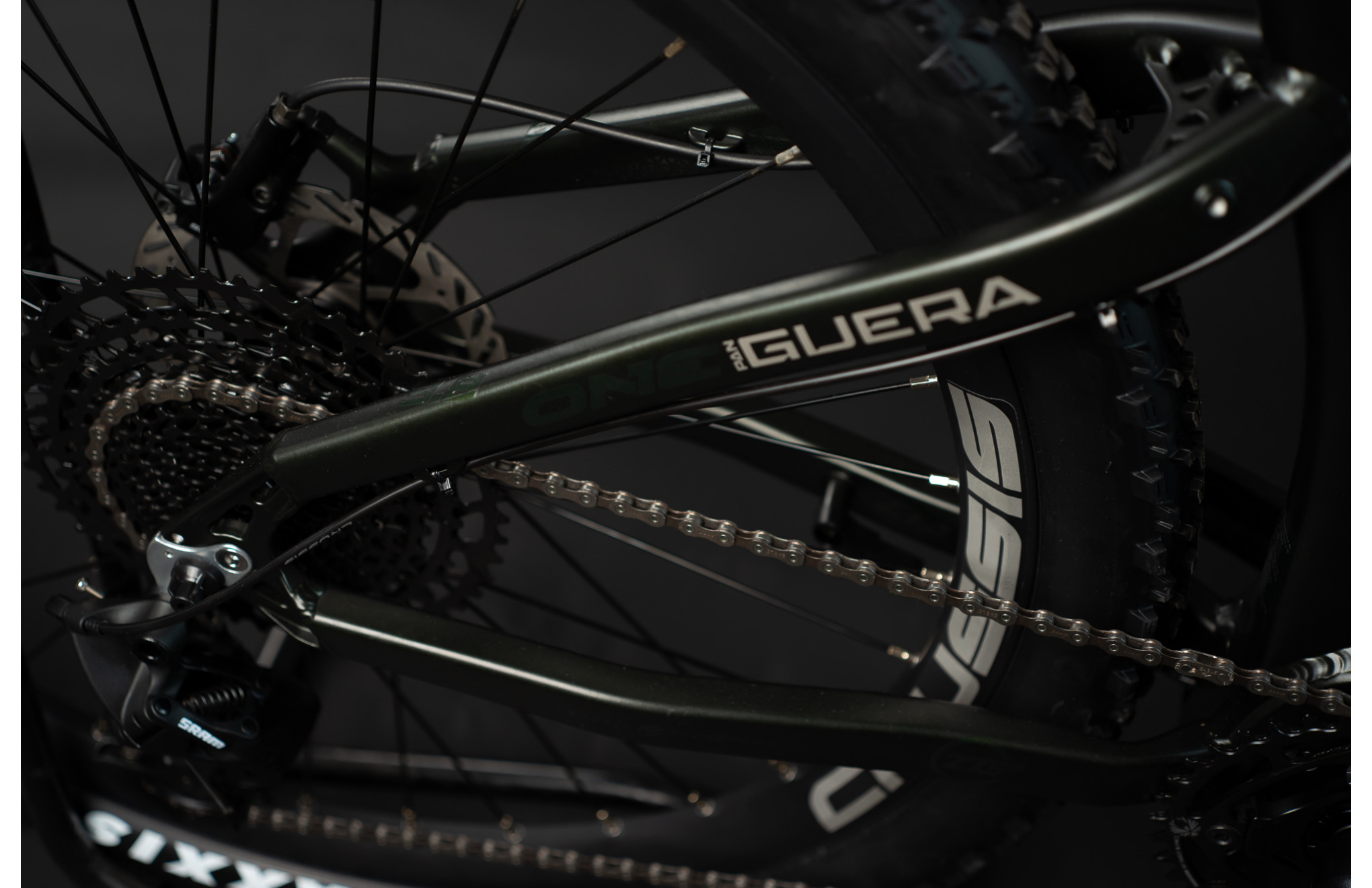

chain

SRAM Eagle SX 12s

cassette / multiwheel

SRAM CS-PG1210 Eagle, 11-50z

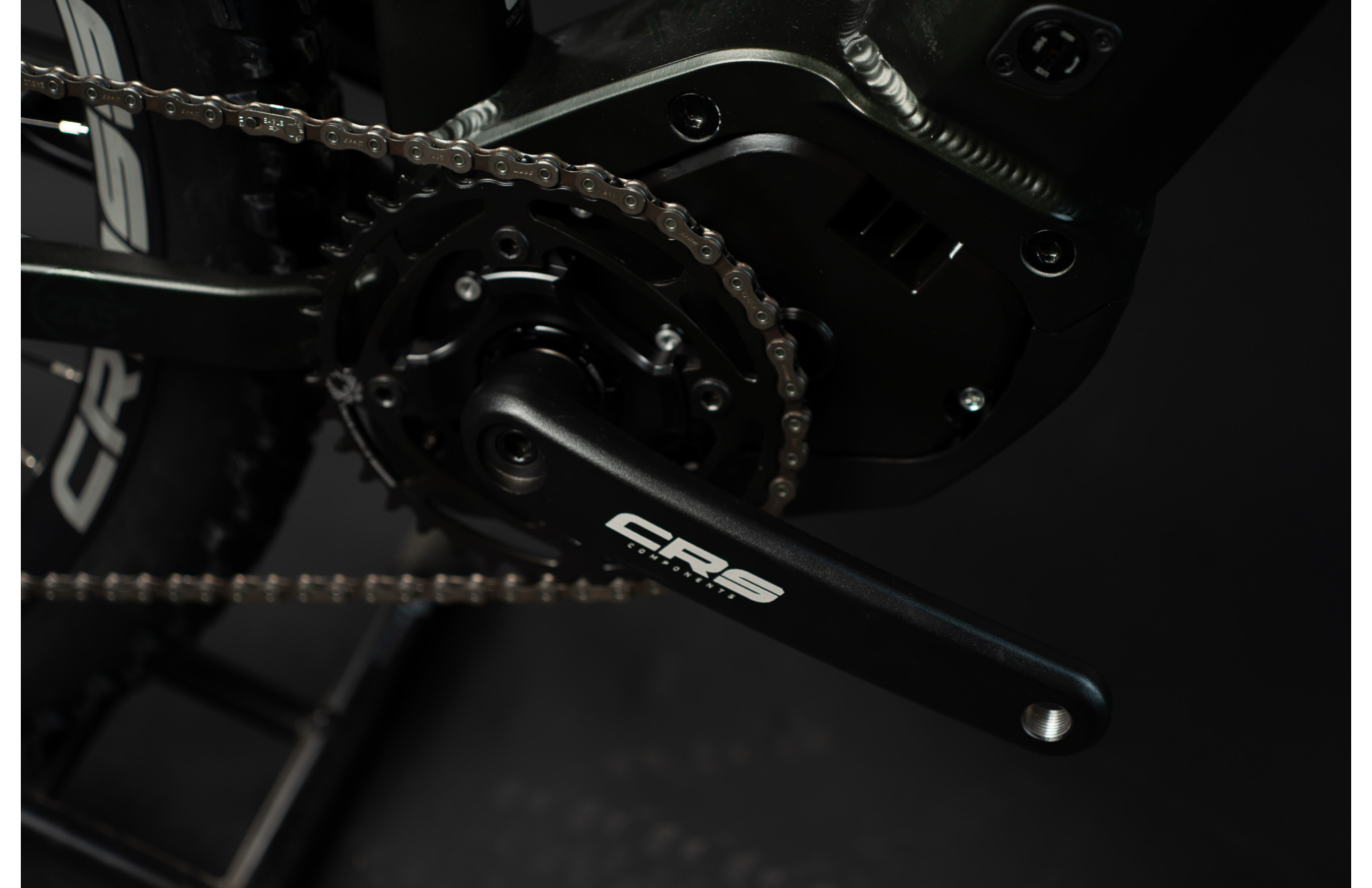

converter and cranks

SRAM X-SYNC 2 38Z, CRS ISIS 170 mm
