2023/24

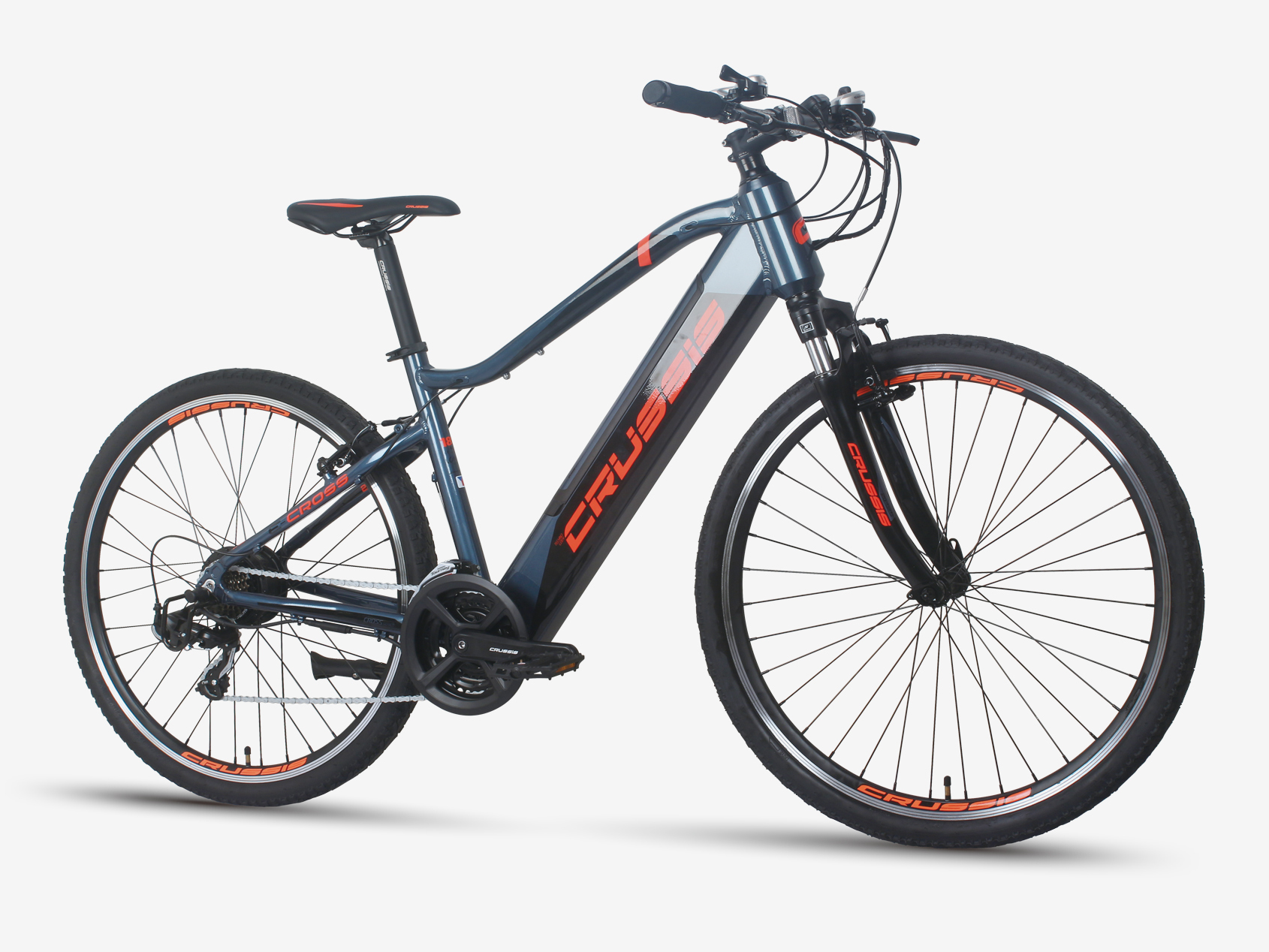

e-Cross 1.8

1.519 EUR

Height of the person Velikost rámu info

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
Výška postavy

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
20” frame
18” frame
Vyhledat prodejnu Search for a shop

Info objednávka Unfortunately you can't order a bike online, but you can find the nearest shop here.

Range

to 100 km

Range
Battery capacity

468 Wh (13 Ah)

Battery capacity
Number of gears

3 x 7

Number of gears
Are you looking for an e-bike for comfortable riding and trips of all kinds? Don't be limited by the profile or length of the trip? Then the e-Cross 1.8 e-bike is just for you. If you still want a model with a stronger battery, take a look at the e-Cross 1.8-S or e-Cross 7.8 / 7.8-S, OLI-Cross 8.8-S/M, PAN-Cross 8.8-S/M, e-Cross 9.8-S/M and PAN-Cross 9.8-S/M e-bike with a central electric motor and better accessories (fork, derailleur).
imageove-fotky-2

Components

Battery

Battery

Battery 468 Wh (13 Ah)

The heart of the e-bike's power supply system is a 36V / 468 Wh (13 Ah) Li-Ion battery. The battery is capable of up to 100 km range on a single charge. However, it always depends of course on the profile of the track and how the assistance is used. Of course, the battery is equipped with a BMS board (Battery Management System) to protect it from overheating, short-circuiting or overcharging. A fully discharged battery can be charged to its full capacity in 6.5 hours.

Display

Display

LCD display

The motor assistance is controlled via a clear LCD panel with a digital display located on the handlebars near the front brake lever. Simple, convenient, safe. The display itself shows not only basic information regarding the battery level and the level of assistance currently in use, but also other data related to the ride (speed, distance travelled, etc.). So you can leave your bike computer at home, you won't need it anymore.

Gears and derailleur

Gears and derailleur

Shimano Tourney set

Shifting is handled by a 21-speed Shimano Tourney derailleur with 3 gears in the front and 7 in the rear. You can easily see the gear you've selected on the shift lever with indicator.

crussis-krosova

Technical specifications

Performance Ikona plus Ikona minus

Range

to 100 km

batteries

Li-Ion 36V / 468 Wh (13 Ah)

Motor

Bafang

control

LCD panel, 5 levels of assistance

control unit

sinusoidal

pedal sensor

rotary (magnetic)

charger

2 A (included)

pedals

WELLGO, plastic with reflector

USB port

no

Walking assistant

yes

Frame Ikona plus Ikona minus

frame

Alu 6061- frame size 18"

Fork

SR-SUNTOUR CR85-V 700C", NO LOCK

Wheels Ikona plus Ikona minus

Wheel diameter

28"

Brakes

TEKTRO V-Brake

Rims

CRUSSIS 28", double walled, lined, 19mm

tires

KENDA 700x45 (47-622), black

front hub

CRUSSIS disc, wreath bearing, 36D

rear hub

Bafang with engine

Load capacity Ikona plus Ikona minus

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,

load capacity

120 kg

Components Ikona plus Ikona minus

handlebars

CRUSSIS AL 31,8mm, width 660 mm

stem

CRUSSIS Al, 60 mm, solid

grips

CRUSSIS ergonomically shaped with sleeve

head composition

Semi 1 1/8

seat post clamp

CRUSSIS with RU Al, black 34,9

seat post

CRUSSIS with lock, 31,6, 350 mm

Gearing Ikona plus Ikona minus

Number of gears

3 x 7

shifter

SHIMANO Tourney RD-TY500D-SGS, 7 speeds

shifting

SHIMANO Tourney SL-TX50, 21 speeds

chain

KMC Z7

cassette / multiwheel

Semi 1 1/8

converter and cranks

CRUSSIS 48/38/28 teeth, 170 mm

shifter

SHIMANO Tourney FD-TY518

Recommendations Ikona plus Ikona minus

accessories

stand
