2023/24

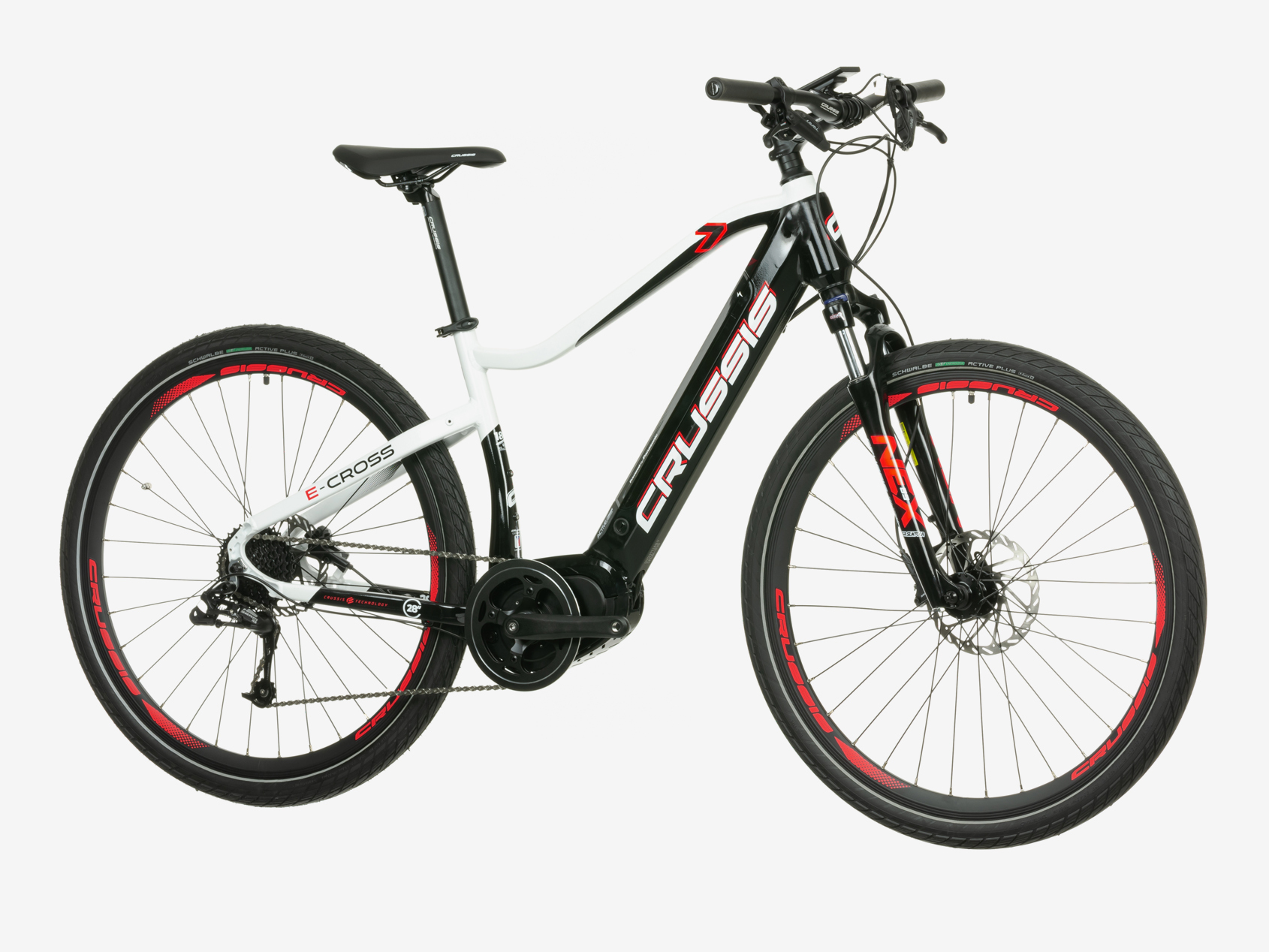

e-Cross 7.8

2.079 EUR

Model 2023/24
e-Cross 7.8 (18)
3D
e-Cross 7.8 (18)
e-Cross 7.8 (18)
e-Cross 7.8 (18)
e-Cross 7.8 (18)
e-Cross 7.8 (18)
e-Cross 7.8 (18)
e-Cross 7.8 (18)
e-Cross 7.8 (18)
e-Cross 7.8 (18)
e-Cross 7.8 (18)
e-Cross 7.8 (18)
e-Cross 7.8 (18)
Height of the person Velikost rámu info

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
Výška postavy

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
20” frame
18” frame
Vyhledat prodejnu Search for a shop

Info objednávka Unfortunately you can't order a bike online, but you can find the nearest shop here.

Range

to 130 km

Range
Battery capacity

522 Wh (14,5 Ah)

Battery capacity
Engine performance

80 Nm

Engine performance
Number of gears

1 x 9

Number of gears
The e-Cross 7.8 men's electric cross bike with central electric motor is designed for sportier riding in light terrain. The e-bike comes without mudguards, lighting, stand and rack. However, these can be easily purchased and fitted to the bike. Or have a look at the e-Gordo 7.8, which comes with mudguards and a rack. If you are looking for a model with a more powerful battery, take a look at the e-Cross 7.8-S/M or an e-bike with better accessories (fork, derailleur...), the e-Cross 9.8-S/M, which also has a better Bafang M500 motor.
imageove-fotky-2

Components

Motor

Motor

Motor BAFANG Max Drive (M400)

Motor m400 with a nominal power of 250W (max 500W) perfectly balances between torque and power consumption, which is always critical for an e-bike. It offers a really high torque of up to 80 Nm while keeping consumption low. The electric motor is equipped with a torsion sensor. The motor power is regulated by a control unit that constantly evaluates how hard the rider is pedalling. The way it works is that the more power you exert while riding (pedaling), the more the motor helps you.

Battery

Battery

Battery 522 Wh (14,5 Ah)

The heart of this e-bike is a battery with Li-Ion technology with a capacity of 36V / 522 Wh (14.5 Ah), which supplies energy to the entire system. This battery is a master at carrying the e-bike up to 130 km on a single charge. Of course, the result may vary depending on the terrain and the intensity of the use of assistance. However, with this battery you can be sure that it will give you the power and endurance you need for any terrain or hill!

Display

Display

BAFANG LCD display -  colour

The colour LCD display shows not only basic information on battery status and the level of assistance currently in use, but also other data relating to the journey (speed, distance travelled, etc.). So you can leave your bike computer at home, you won't need it anymore. The display is also equipped with a USB connector for charging mobile devices (phone, navigation, lighting, etc.). You can also charge your devices outside of civilization, which can come in handy especially during longer trips.

Suspension Fork

Suspension Fork

SUNTOUR NEX HLO DS 700c

Forget uneven terrain with our e-bike, equipped with a SUNTOUR NEX HLO DS 700c suspension fork with 63 mm of travel. With a simple spring preload adjustment, you can quickly adapt the e-bike to your weight and riding style. A well-adjusted fork then flawlessly absorbs off-road impacts while remaining stable on the flat. With the ability to lock the suspension directly from the fork crown, you get maximum control on every ride! Break free from off-road challenges with our e-bike.

imageove-fotky-1

Technical specifications

Performance Ikona plus Ikona minus

Range

to 130 km

batteries

Li-Ion 36V / 522 Wh (14,5 Ah)

Motor

BAFANG MAX drive (M400), center drive, 250W (max 500W), 80 Nm

control

BAFANG LCD panel, 5 levels of assistance, color display

control unit

Integrated in the engine

pedal sensor

torsion

charger

2 A (included)

pedals

WELLGO, alu with reflector

USB port

yes

Walking assistant

yes

Frame Ikona plus Ikona minus

frame

Alu 6061- frame size 18"

Fork

SUNTOUR NEX HLO DS 700c, 63 mm stroke, lockable from fork,

Wheels Ikona plus Ikona minus

Wheel diameter

28"

Rims

CRUSSIS 28", double walled, lined, 19mm

Hubs

CRUSSIS disc, wreath bearing, 32D

front brake

SHIMANO BR-MT200 or SRAM Level, hydraulic, 180 mm rotor

rear brake

SHIMANO BR-MT200 or SRAM Level, hydraulic, 160 mm rotor

tires

SCHWALBE Energizer Active Plus 28 x 2,00

Load capacity Ikona plus Ikona minus

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,

load capacity

120 kg

Components Ikona plus Ikona minus

handlebars

CRUSSIS Al, 700 mm

stem

CRUSSIS Al, 105mm, adjustable

grips

CRUSSIS, 100% silicone

head composition

Semi 1 1/8

seat

Selle ROYAL

seat post clamp

CRUSSIS with RU Al, black 34,9

seat post

CRUSSIS with lock, 30,4 / 350 mm

Gearing Ikona plus Ikona minus

Number of gears

1 x 9

shifter

SHIMANO Alivio RD-M3100-SGS or SRAM X5, 9 speeds

shifting

SHIMANO Alivio SL-M3100 or SRAM X5, 9 speeds

chain

KMC X9

cassette / multiwheel

Semi 1 1/8

converter and cranks

BAFANG, 44 teeth, 170 mm
