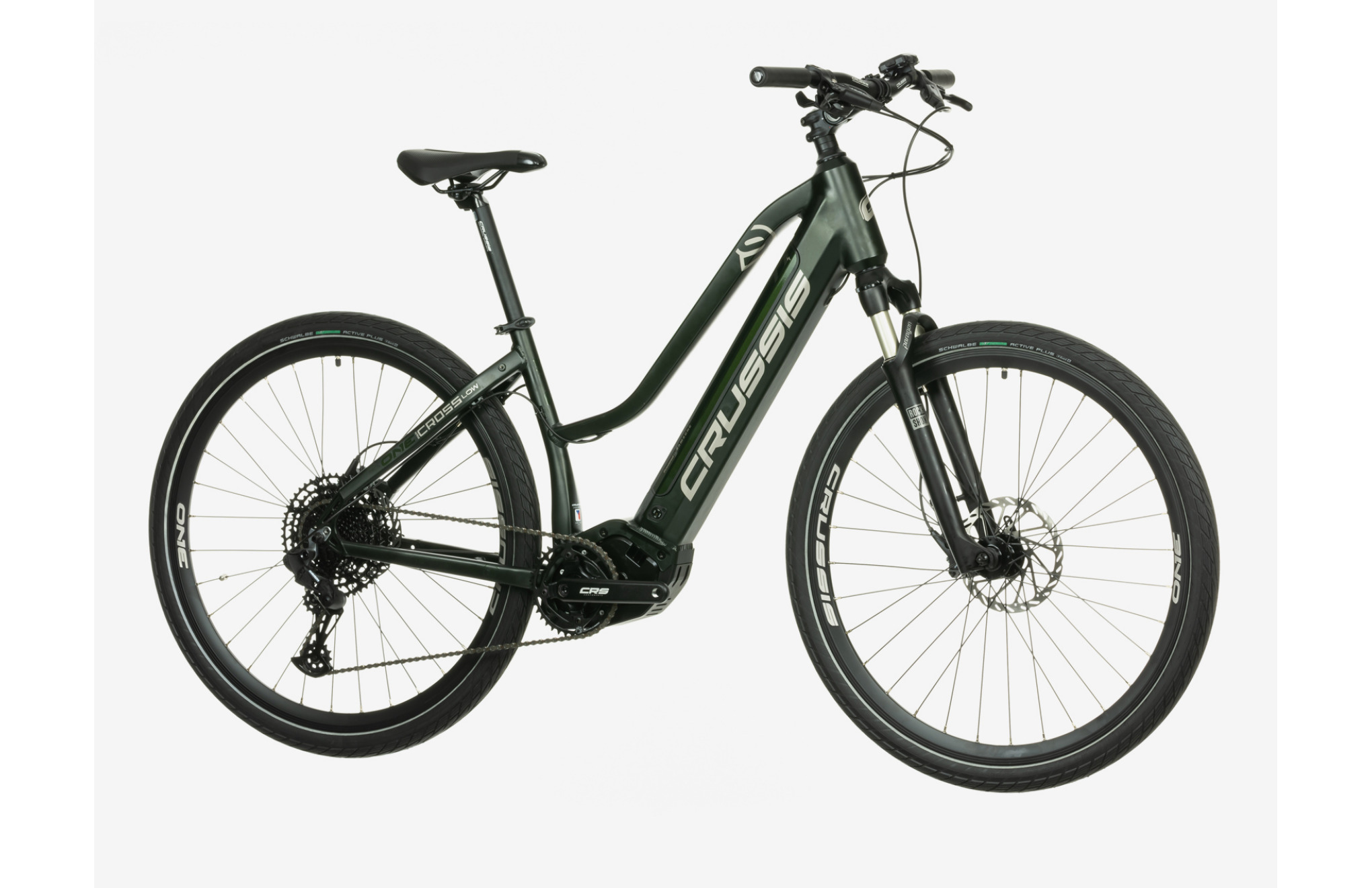

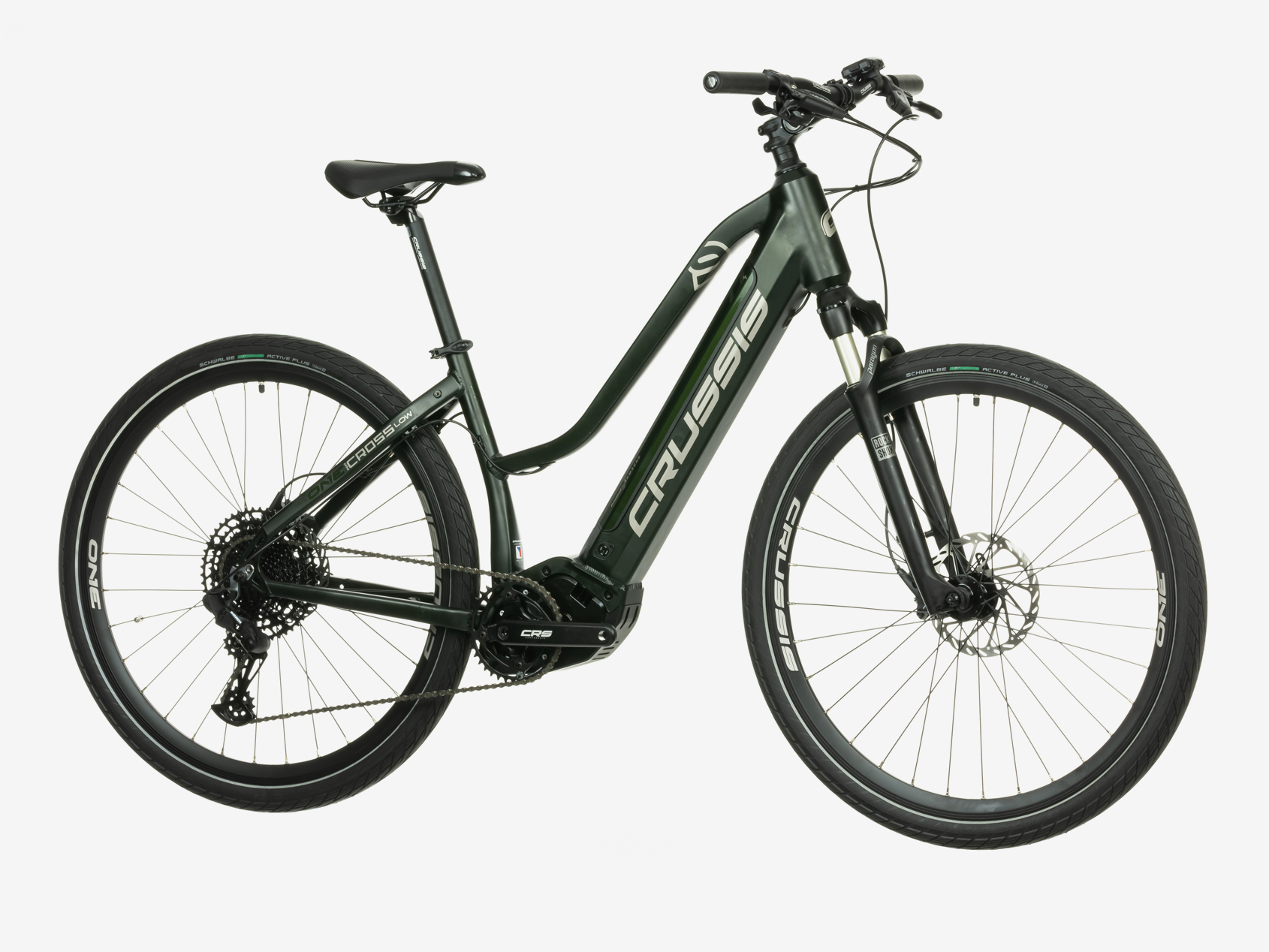

ONE-PAN Cross low 9.8-M

2.959 EUR

Model 2023New motor PANASONIC
ONE-PAN Cross low 9.8-M (17)
ONE-PAN Cross 9.8
ONE-PAN Cross 9.8-1
ONE-PAN Cross low 9.8-M (17)
ONE-PAN Cross low 9.8-M (17)
ONE-PAN Cross low 9.8-M (17)
ONE-PAN Cross low 9.8-M (17)
ONE-PAN Cross low 9.8-M (17)
ONE-PAN Cross low 9.8-M (17)
ONE-PAN Cross low 9.8-M (17)
ONE-PAN Cross low 9.8-M (17)
ONE-PAN Cross low 9.8-M (17)
ONE-PAN Cross low 9.8-M (17)
ONE-PAN Cross low 9.8-M (17)

Battery / Range

Height of the person

Výška postavy
Frame size Velikost rámu info

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
19” rám Chceck - battery
17” rám Chceck - battery
Range

to 170 km

Range
Battery capacity

720 Wh (20 Ah)

Battery capacity
Engine performance

95 Nm

Engine performance
Number of gears

1 x 12

Number of gears

Why you'll love it

If you're looking for a supercharged e-bike for sportier riding, the ONE-PAN Cross low 9.8-M with a central electric motor PANASONIC GX Ultimate is designed not only for trips of all kinds on roads and cycle paths, but also for sportier riding in light terrain. If you still prefer a model with a more colourful design, take a look at the PAN-Cross low 9.8-M e-bike. Or check out the e-Cross low 9.8-M e-bike with Bafang M500 motor.
imageove-fotky-1

Components

Baterie Samsung 720 Wh (20 Ah)

Baterie Samsung 720 Wh (20 Ah)

Baterie Samsung 720 Wh (20 Ah)

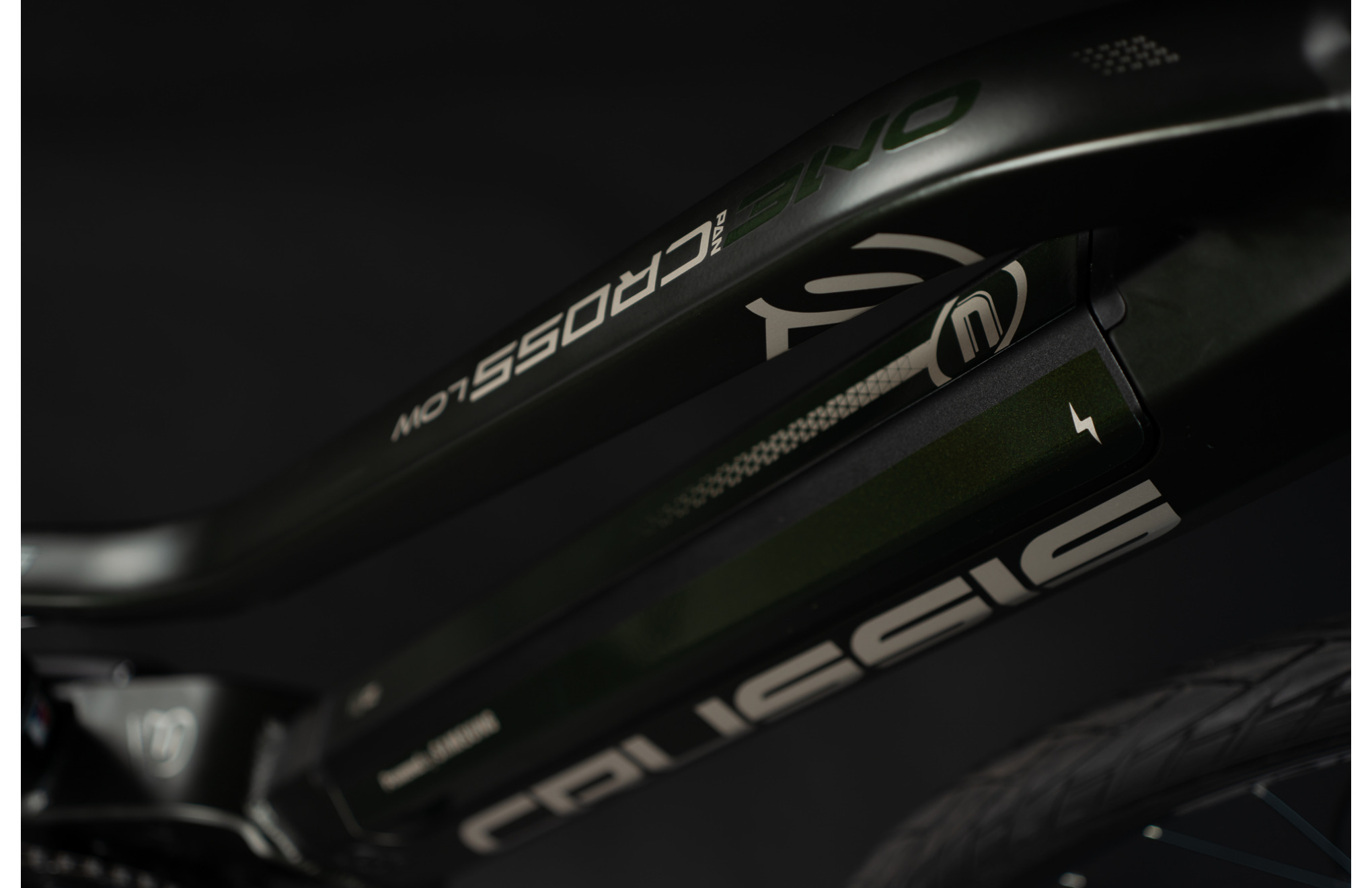

The heart of the e-bike's power supply system is a battery with Samsung 36V / 720 Wh (20 Ah) Li-Ion cells. The battery is capable of taking the e-bike up to 170 km on a single charge. However, it always depends of course on the profile of the track and how the assistance is used.
Gears

Gears

SRAM SX Eagle, 12 speed
Eagle™ technology delivers smoother, more precise shifting with exceptional reliability. Eagle™ technology is revolutionizing MTB by offering cyclists a single-speed drivetrain that's designed to be just right - lightweight, durable, intuitive handling and a range of gears for all-terrain riding. Eagle™. The SX Eagle™ is here to make it easier than ever for more cyclists to access the benefits of the Eagle™ system.
Suspension Fork

Suspension Fork

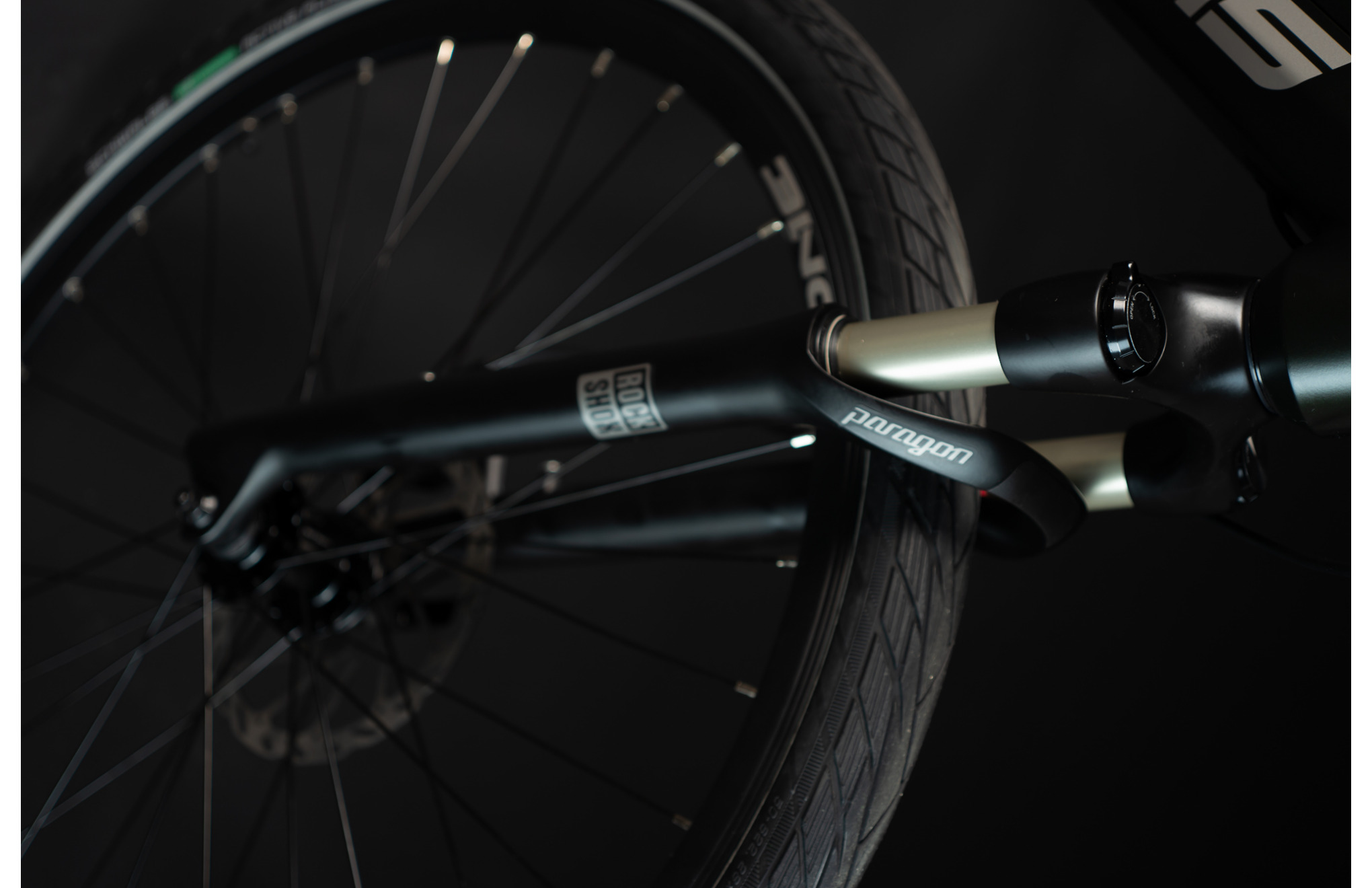

ROCKSHOX FS Paragon Gold RL Solo Air 700c
The air-damped ROCKSHOX FS Paragon Gold RL R Solo Air 700c fork with 65 mm travel is perfectly adapted to the rider's weight. Simply adjust the air pressure in the fork and the e-bike fully adapts to your weight and riding style. The well-adjusted fork then perfectly absorbs shock when riding off-road, while not "flexing" unnecessarily on flat surfaces. The suspension can be locked in place with a lock from the fork crown.
Display

Display

Panasonic center LCD display

Panasonic center LCD display with remote control from the handlebar on the left side. The display is equipped with a USB port for phone charging. In addition to the three assistance modes HIGH, STANDARD and ECO, there is also a dynamic AUTO mode that provides assistance depending on rider torque input. The display is IPX5 rated.

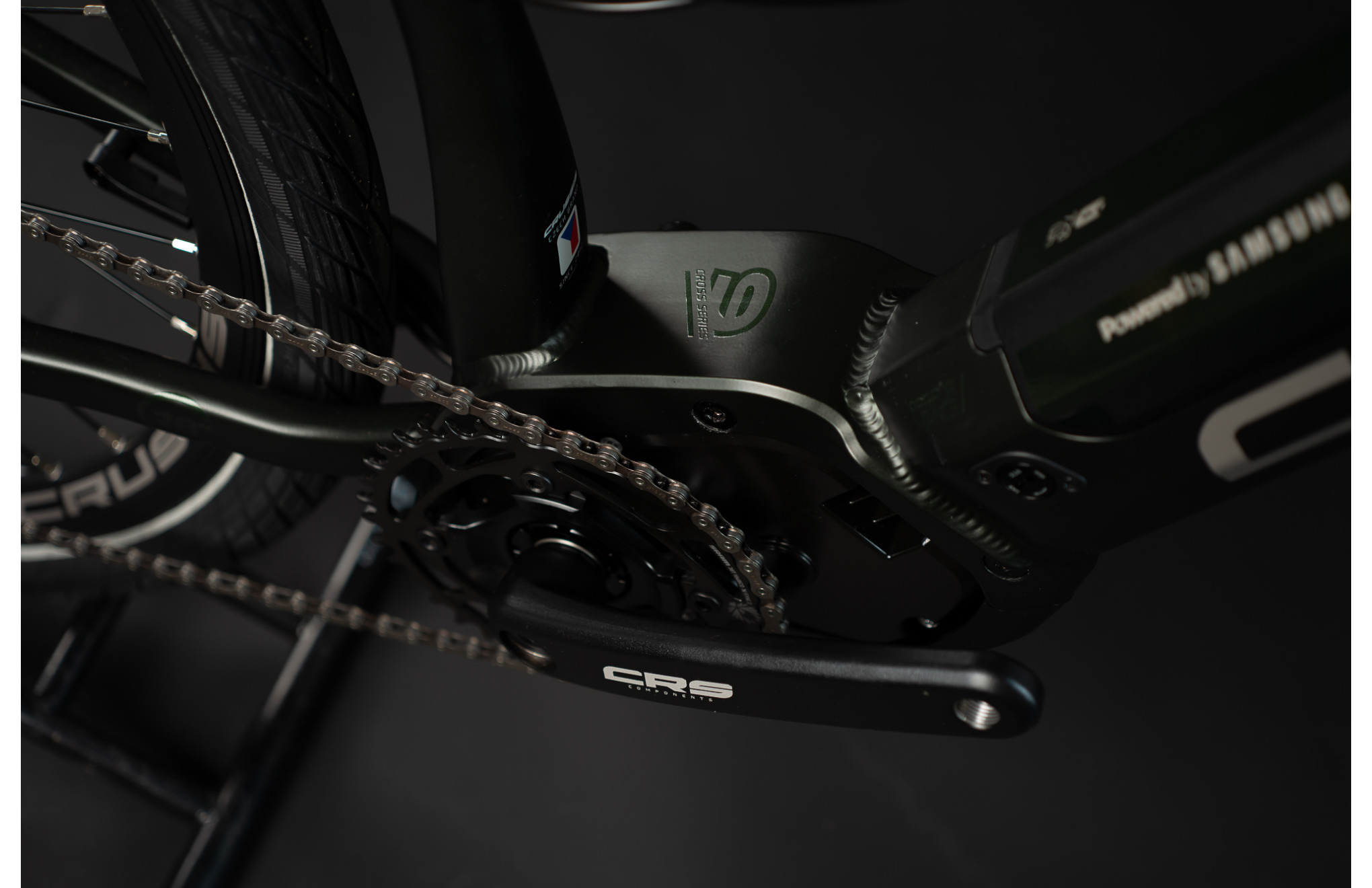

Motor

Motor

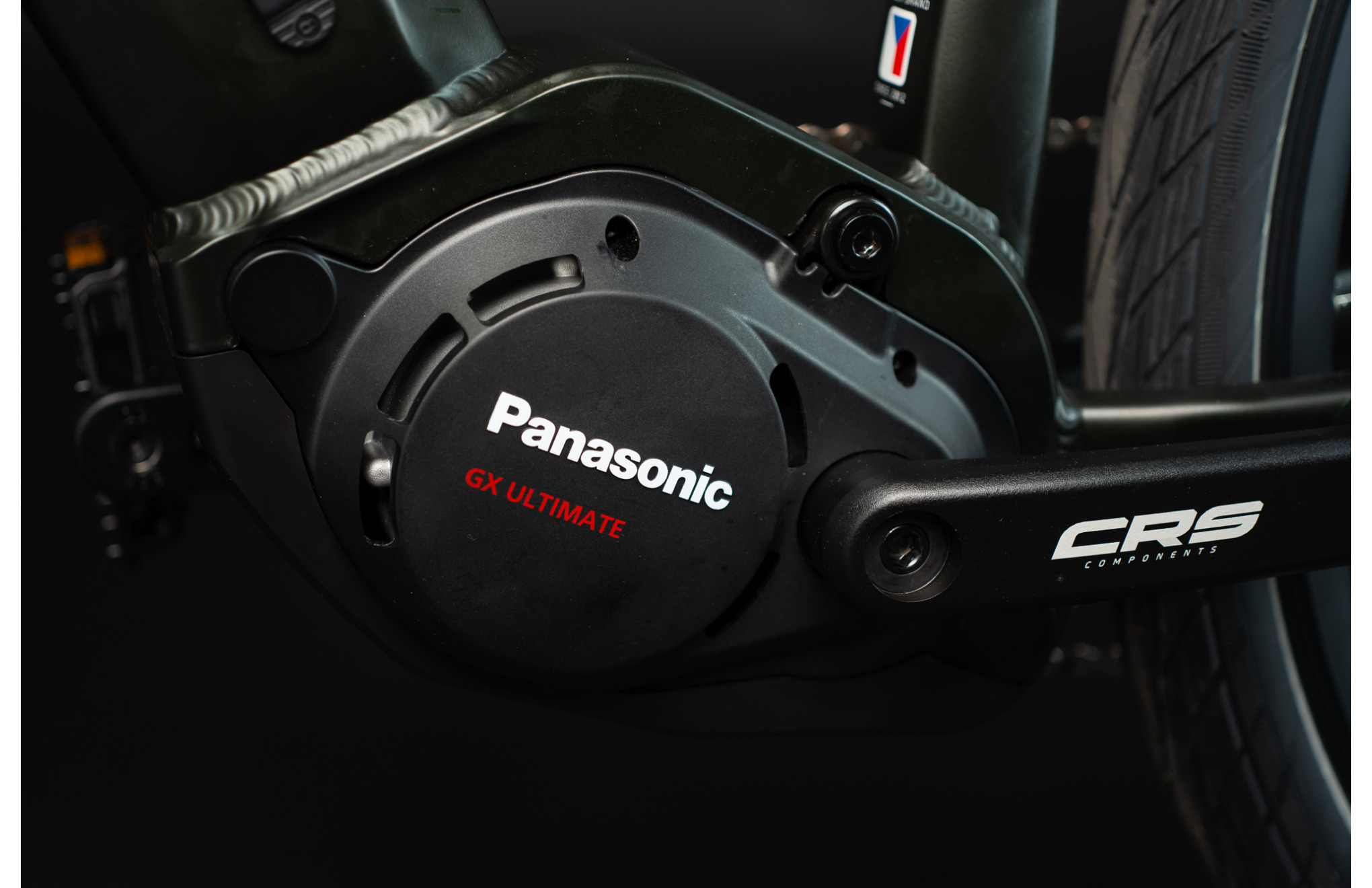

PANASONIC GX Ultimate 95 Nm

If you want to maximize your riding pleasure on the e-MTB, here's a best-in-class motor with a torque of 95 Nm and a weight of just 2.95 kg, allowing you to reach the most challenging targets.

Robust and powerful: the GX Ultimate motor is the best in its class. Ready for your ultimate mountain biking experience. With support that is equally as steady as it is powerful, it's perfect for tackling even the steepest climbs.

Even at low cadence, the motor unit delivers a constant and powerful 95 Nm of power, making the GX Ultimate one of the most powerful motor units in its class, and it supports you even in the toughest conditions.

imageove-fotky-3

Technical specifications

Pohon Ikona plus Ikona minus

Range

to 170 km

batteries

SAMSUNG Li-Ion 36V / 720 Wh (20 Ah)

Motor

PANASONIC GX Ultimate, 250W (MAX 500W) 95 Nm

control

PANASONIC LCD panel, color display

control unit

Integrated in the engine

pedal sensor

torsion

charger

4 A (included)

pedals

WELLGO, alu with reflector

USB port

USB Micro-B

Walking assistant

ano

Rám Ikona plus Ikona minus

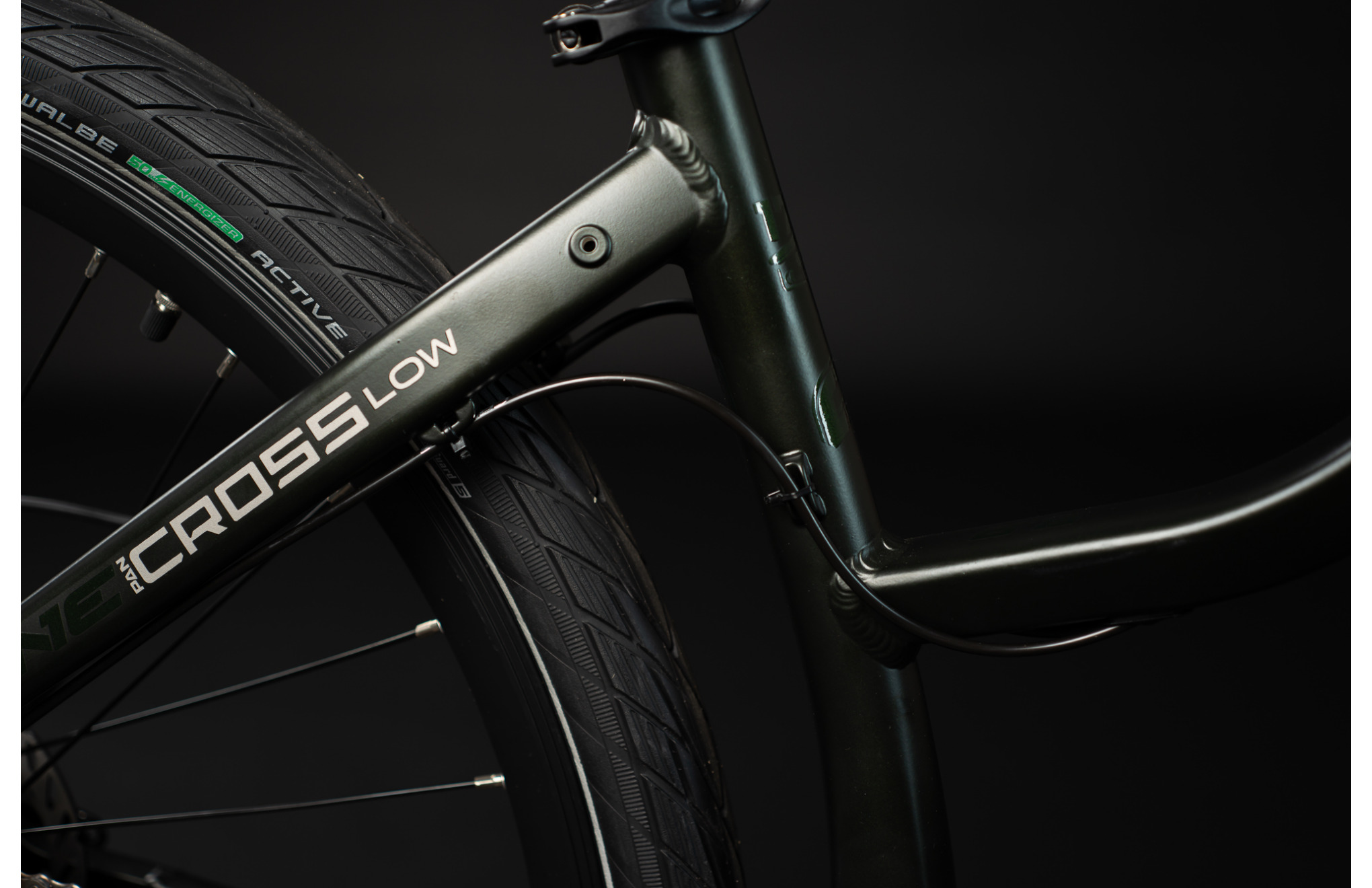

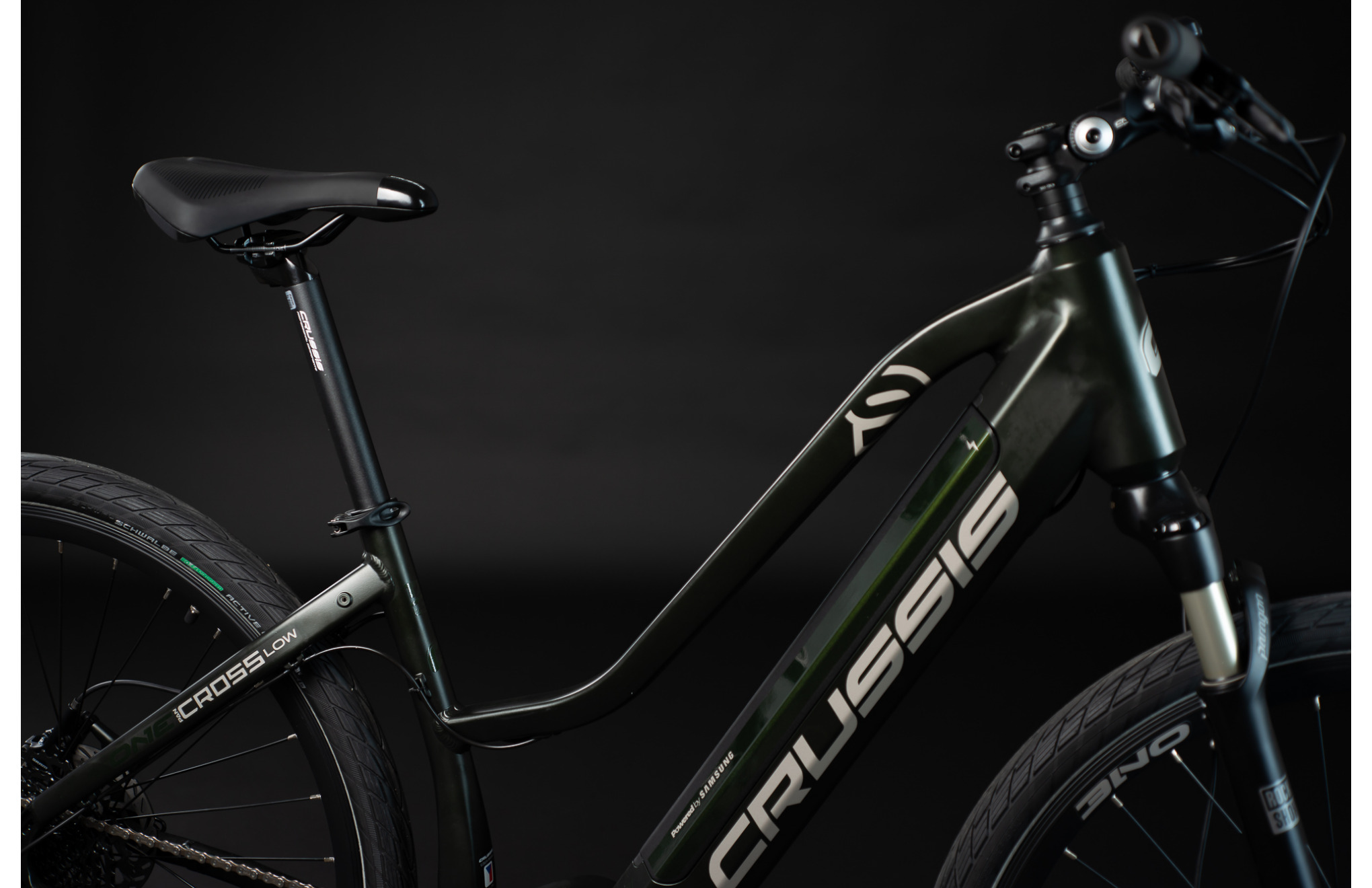

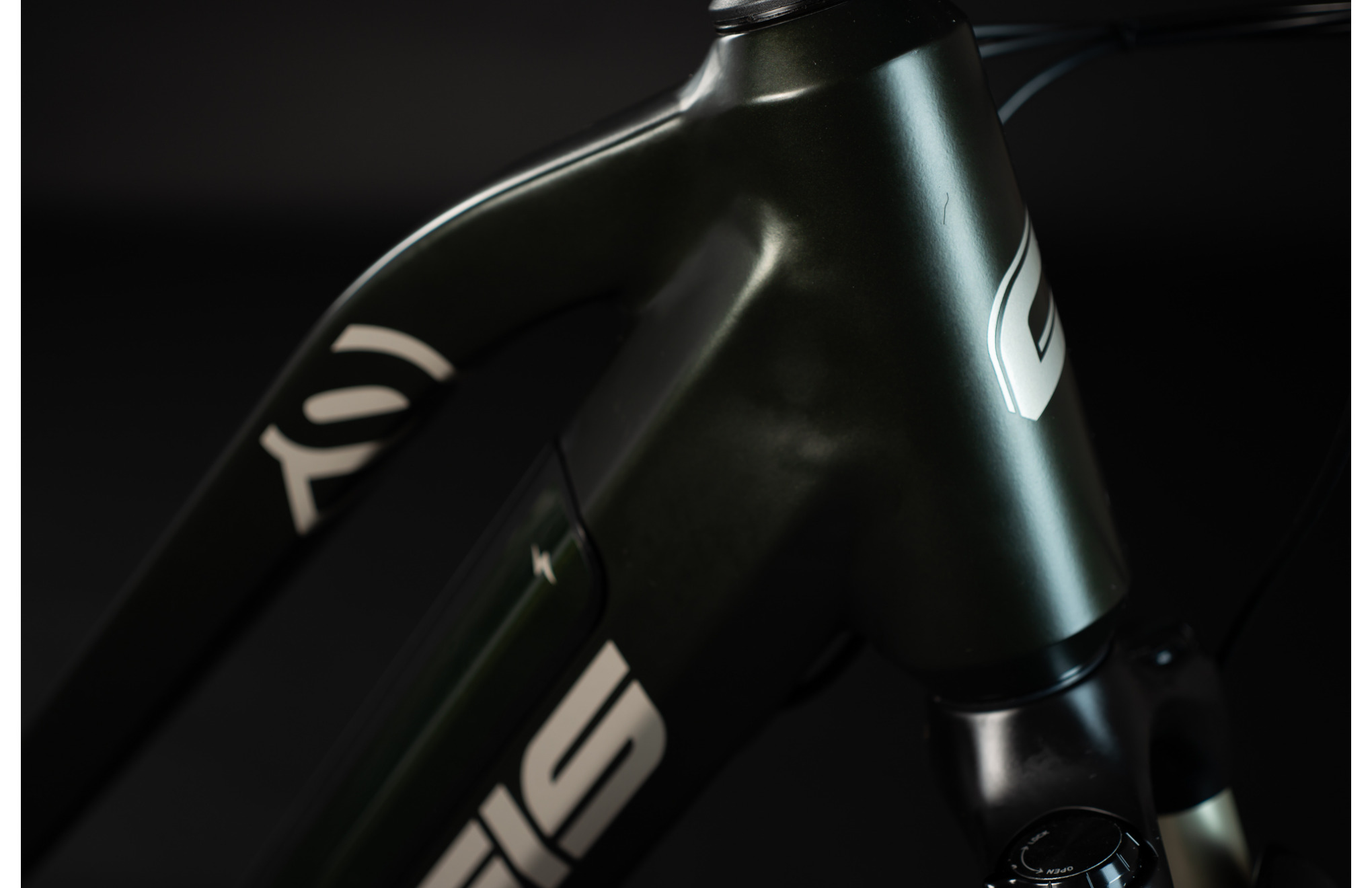

frame

Alu 6061- frame size 17"

Forks

ROCKSHOX FS Paragon Gold RL Solo Air 700c, 65 mm stroke, lockable from fork

Kola Ikona plus Ikona minus

Wheel diameter

28"

Riffs

CRUSSIS 28", double walled, lined, 19mm

Hubs

CRUSSIS disc, wreath bearing, 32D

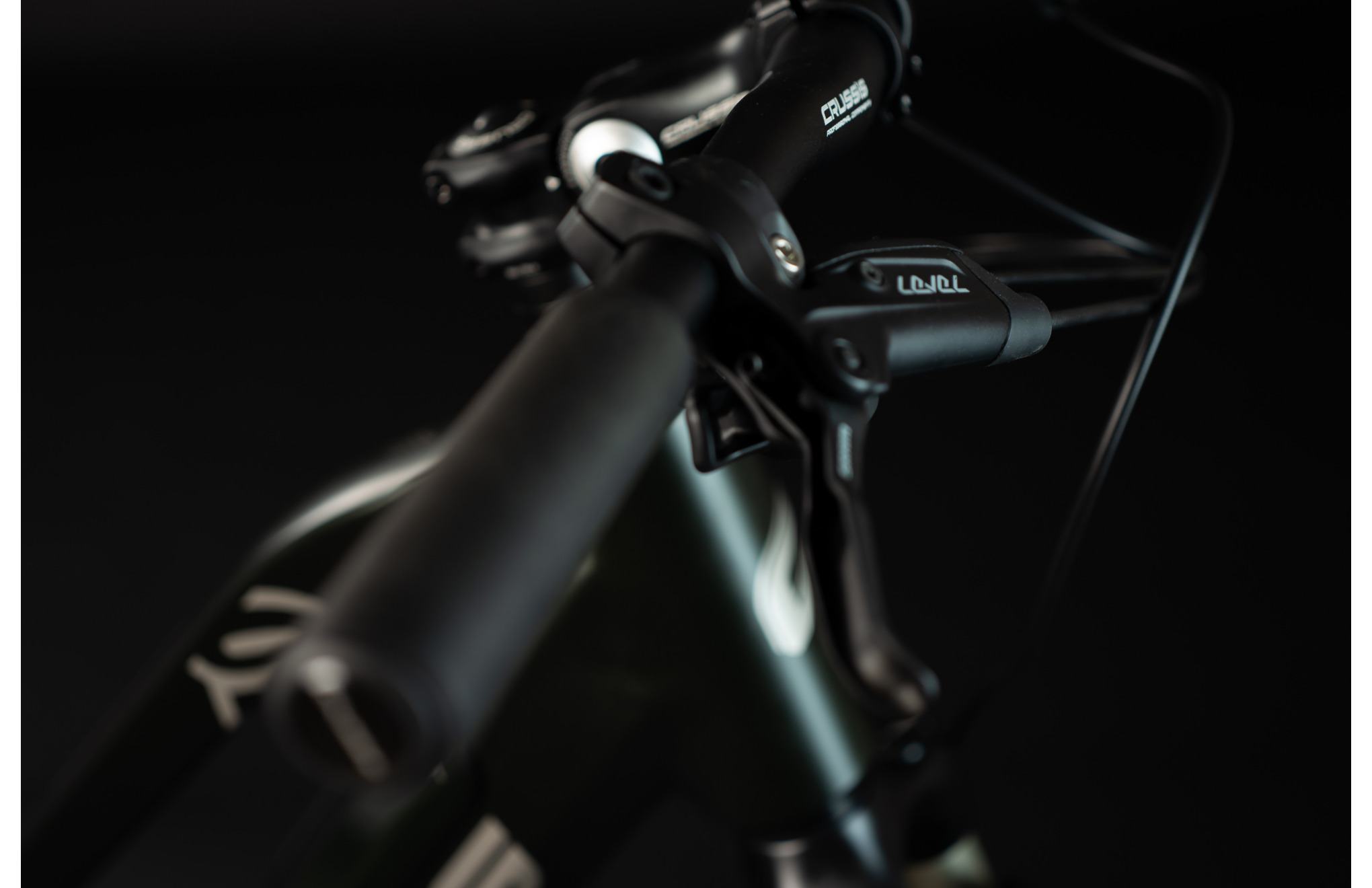

front brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 180 mm rotor

rear brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 160 mm rotor

tyres

SCHWALBE Energizer Active Plus 28 x 2,00

Nosnost Ikona plus Ikona minus

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,

load capacity

120 kg

Komponenty Ikona plus Ikona minus

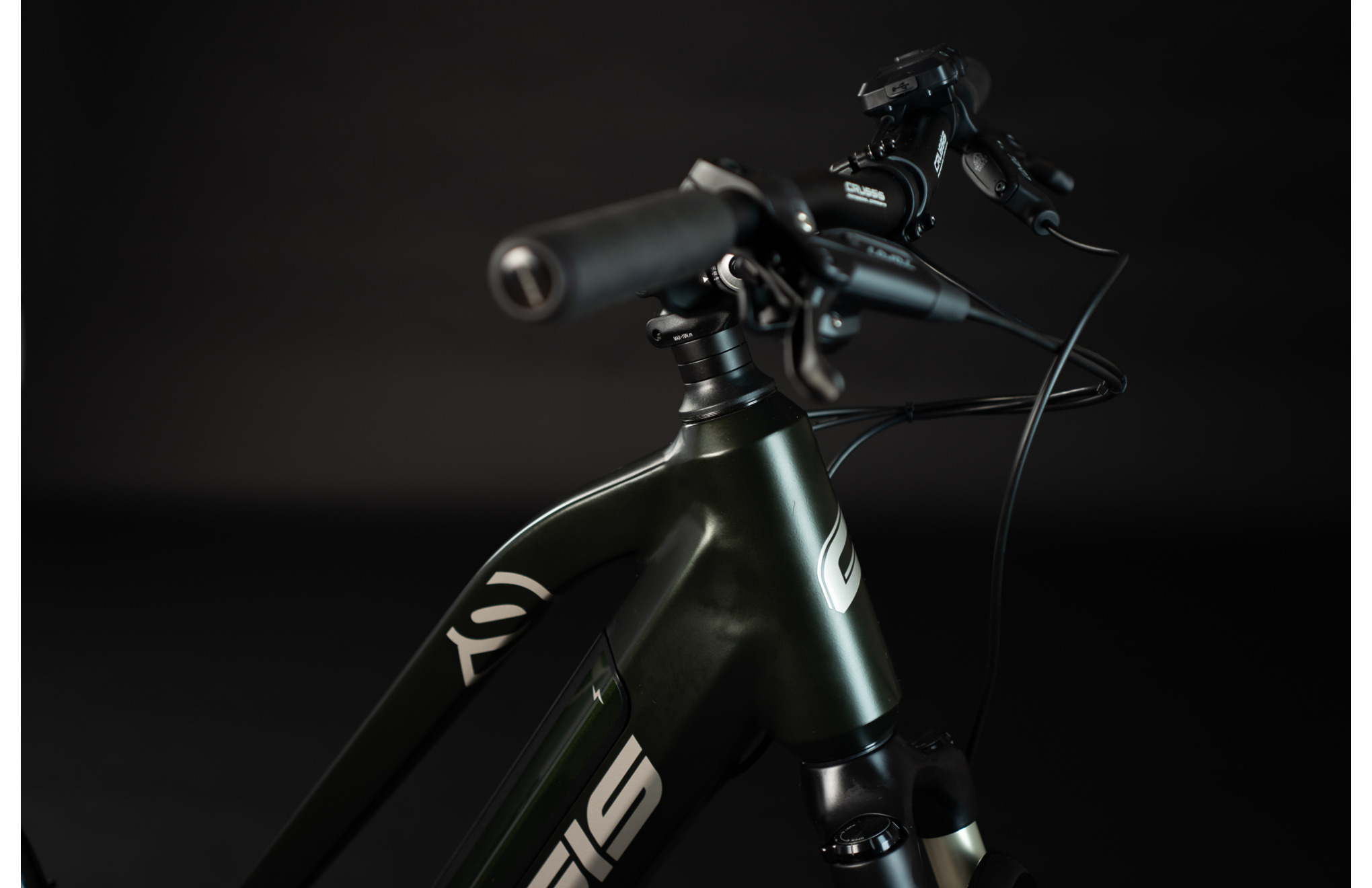

handlebars

CRUSSIS Al, 680 mm

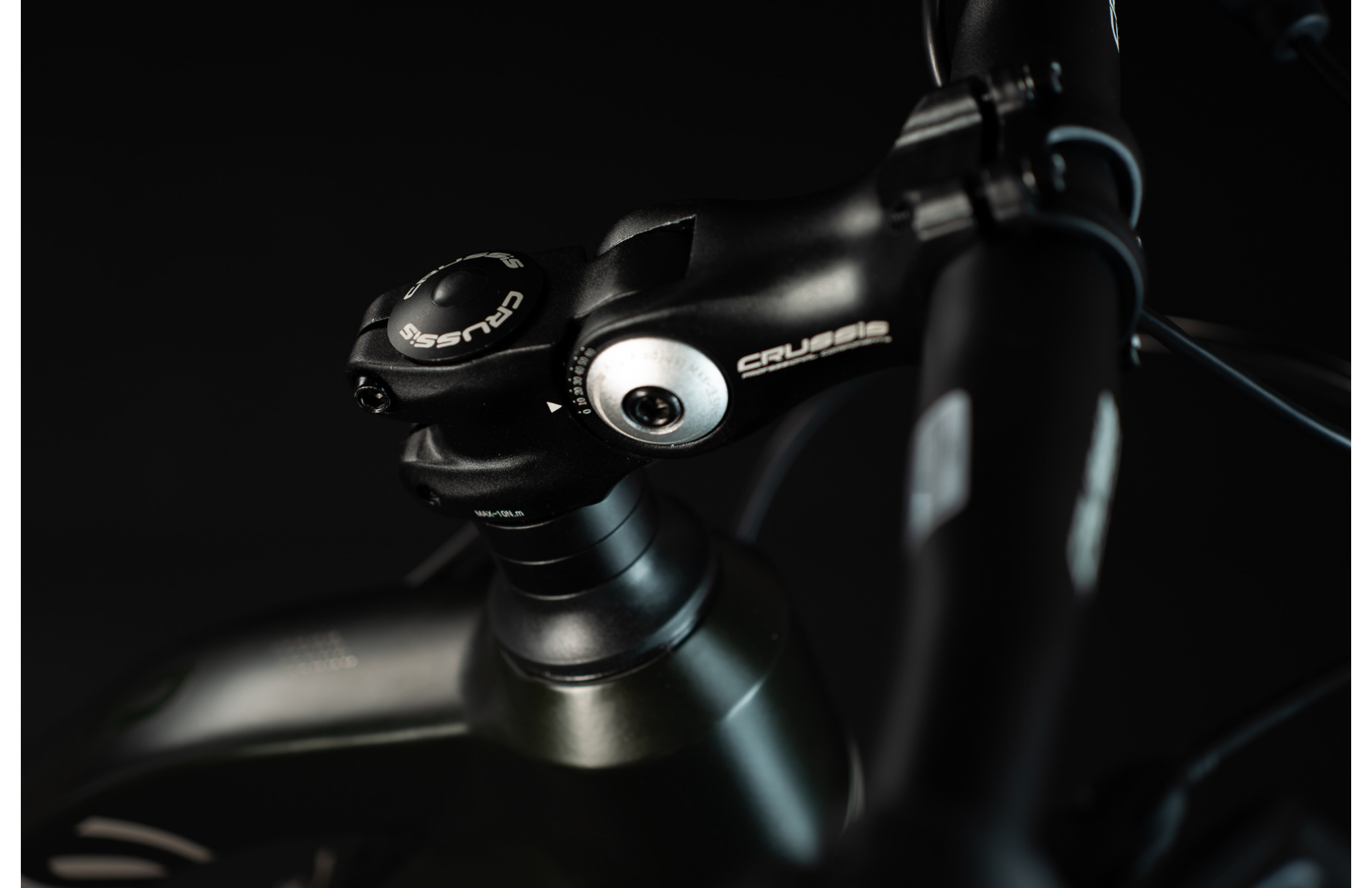

stem

CRUSSIS Al, 105mm, adjustable

grips

CRUSSIS, 100% silikon

head composition

Semi 1 1/8

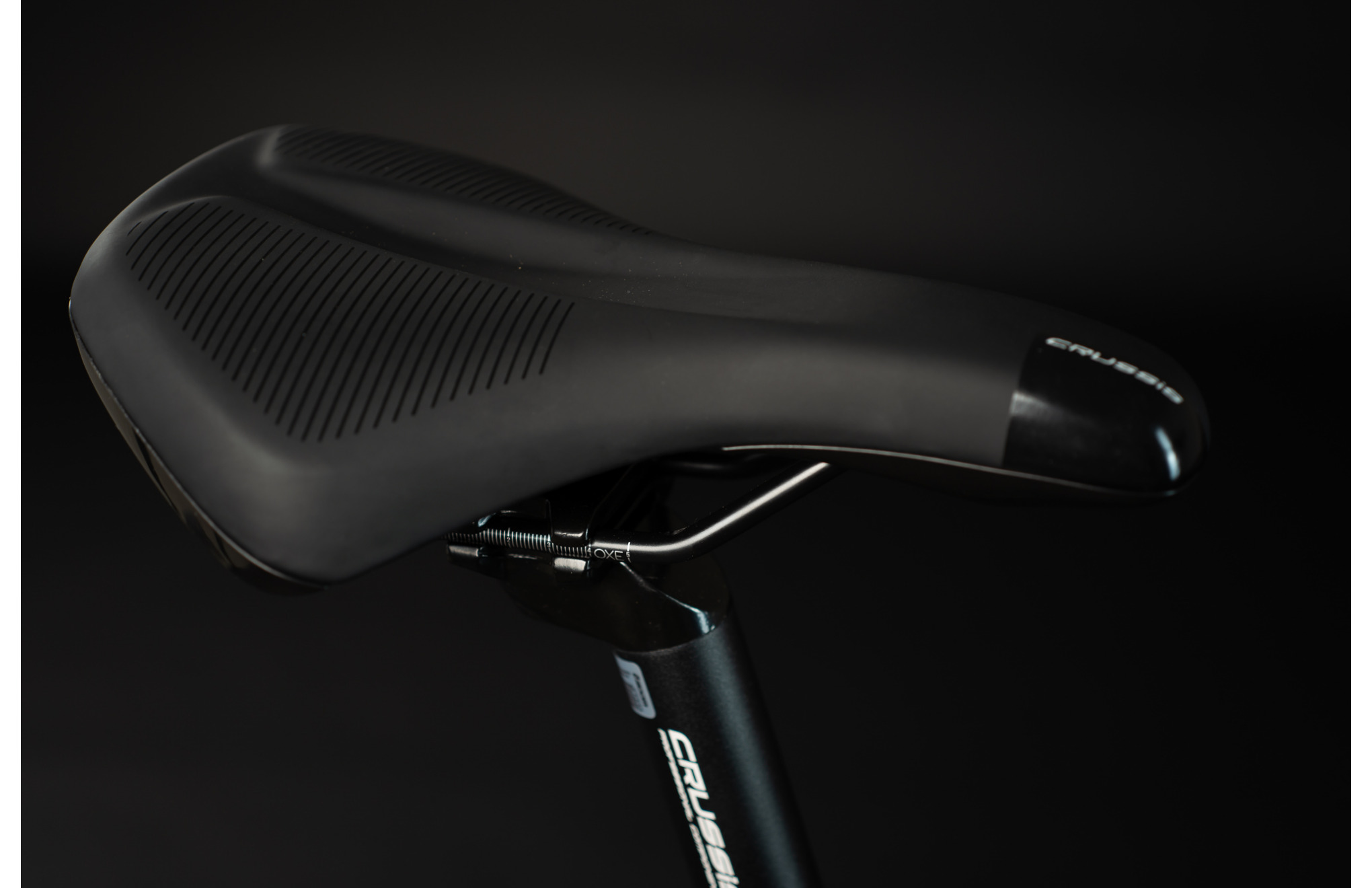

saddle

Selle ROYAL

saddle sleeve

CRUSSIS with RU Al, black 34,34

saddlebag

CRUSSIS with lock, 30,4 / 350 mm

Řazení Ikona plus Ikona minus

Number of gears

1 x 12

shifter

SRAM Eagle SX 12s

shifting

SRAM SX Eagle

chain

SRAM Eagle SX 12s

cassette / multiwheel

SRAM CS-PG1210 Eagle, 11-50z

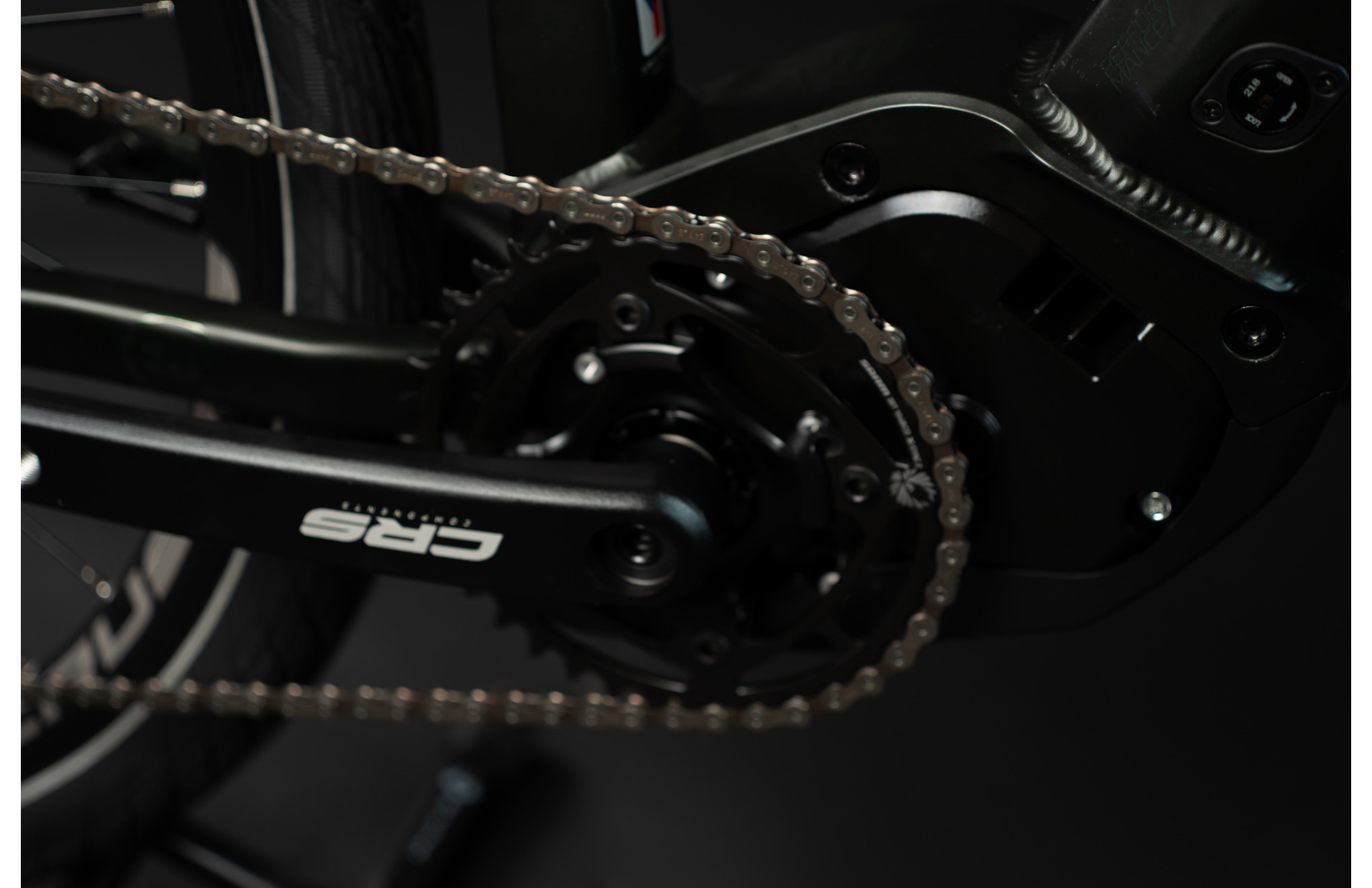

converter and cranks

SRAM X-SYNC 2 38Z, CRS ISIS 170 mm
