2021

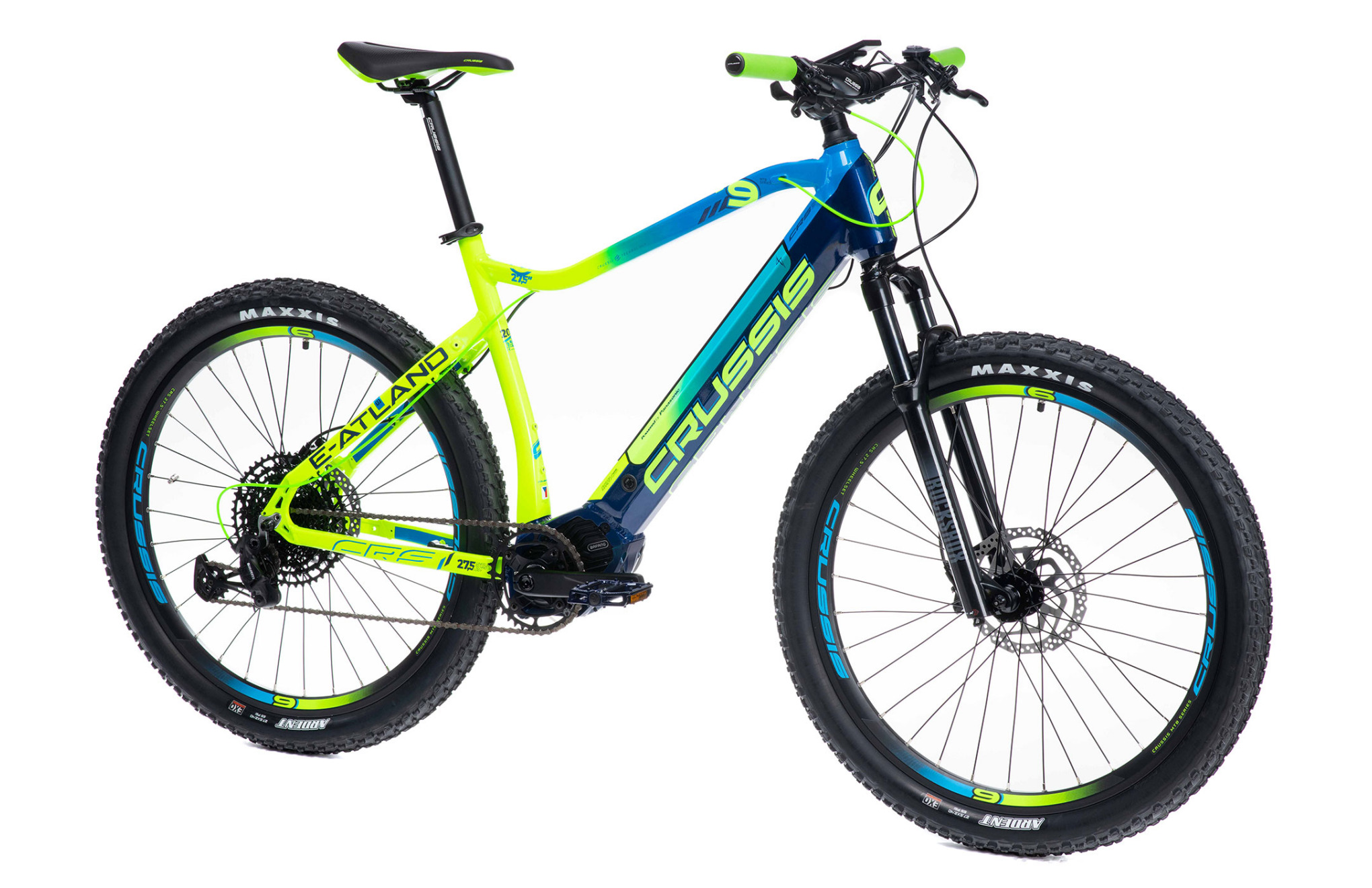

e-Atland 9.6-S

58.790 EUR

Height of the person Velikost rámu info

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
Výška postavy

Recommended sizes of electric bikes

Height of the person Frame size
180 - 200 cm 22”
180 - 195 cm 21,5”
180 - 195 cm 21”
175 - 190 cm 20”
170 - 185 cm 19,5”
170 - 185 cm 19”
165 - 180 cm 18”
160 - 175 cm 17,5”
160 - 175 cm 17”
155 - 170 cm 16”
150 - 165 cm 15”
135 - 155 cm 14”
20” frame
18” frame

Sold out

Info objednávka This bike model is no longer available.

Range

to 150 km

Range
Battery capacity

630 Wh (17.5 Ah)

Battery capacity
Engine performance

95 Nm

Engine performance
Number of gears

1 x 12

Number of gears

Pánové, hledáte parádní výbavou nabušený e-bike? Elektrokolo Crussis e-Atland 9.6-S jsme vyvinuli právě pro vás, pro vaše výlety přírodou, cestou necestou, po rovinách, přes kopce i na toulání po horách, po místech, kam jste se třeba se svým kolem ještě neodvážili.

crussis-horska3

Components

crussis-horska5

Technical specifications

Performance Ikona plus Ikona minus

Range

to 150 km

batteries

PANASONIC Li-Ion 36V / 630 Wh (17.5 Ah)

Motor

BAFANG M500, center, 250W (max 500W), 95 Nm

Engine location

Bafang - central

control

BAFANG LCD panel, 5 levels of assistance, color display

control unit

Integrated in the engine

pedal sensor

torsion

charger

2 A (included)

pedals

WELLGO, alu with reflector

USB port

yes

Walking assistant

yes

Frame Ikona plus Ikona minus

frame

Alu 6061, frame size 18" / 20"

Fork

ROCKSHOX FS Judy Silver TK R Solo Air 27,5", 100 mm travel, lockable from handlebars

Wheels Ikona plus Ikona minus

Wheel diameter

27,5"

Rims

CRUSSIS 27,5", double walled, lined, 25mm

Hubs

CRUSSIS disc, wreath bearing, 32D

front brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 180 mm rotor

rear brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 160 mm rotor

tires

MAXXIS Ardent 27,5 x 2,40

Load capacity Ikona plus Ikona minus

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to. Some brands quote artificially reduced weights. To find out the weight of a bike, you need to have it weighed in-store.

load capacity

120 kg

Components Ikona plus Ikona minus

handlebars

CRUSSIS Al, 740 mm

stem

CRUSSIS Al, 60 mm, solid

grips

CRUSSIS, 100% silicone

head composition

Semi 1 1/8

seat

Selle ROYAL

seat post clamp

CRUSSIS with RU Al, black 34,9

seat post

CRUSSIS with lock, 31,6 / 350 or 400 mm

Gearing Ikona plus Ikona minus

Number of gears

1 x 12

shifter

SRAM SX Eagle, 12 speeds

shifting

SRAM SX Eagle

chain

SRAM Eagle SX 12s

cassette / multiwheel

SRAM CS-PG1210 Eagle, 11-50z

converter and cranks

SRAM X-SYNC 2 38Z / BAFANG 170 mm
