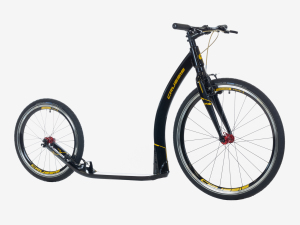

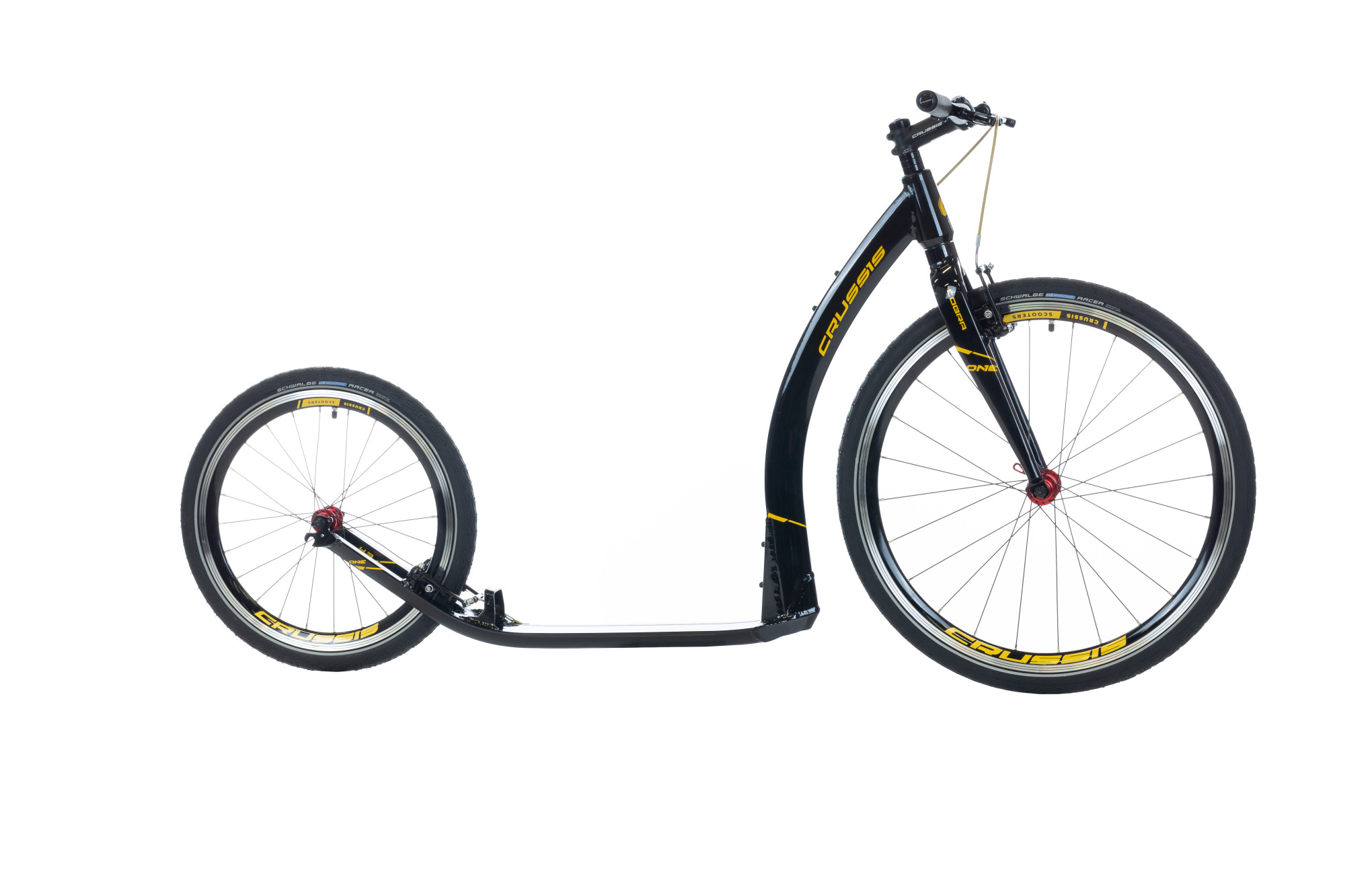

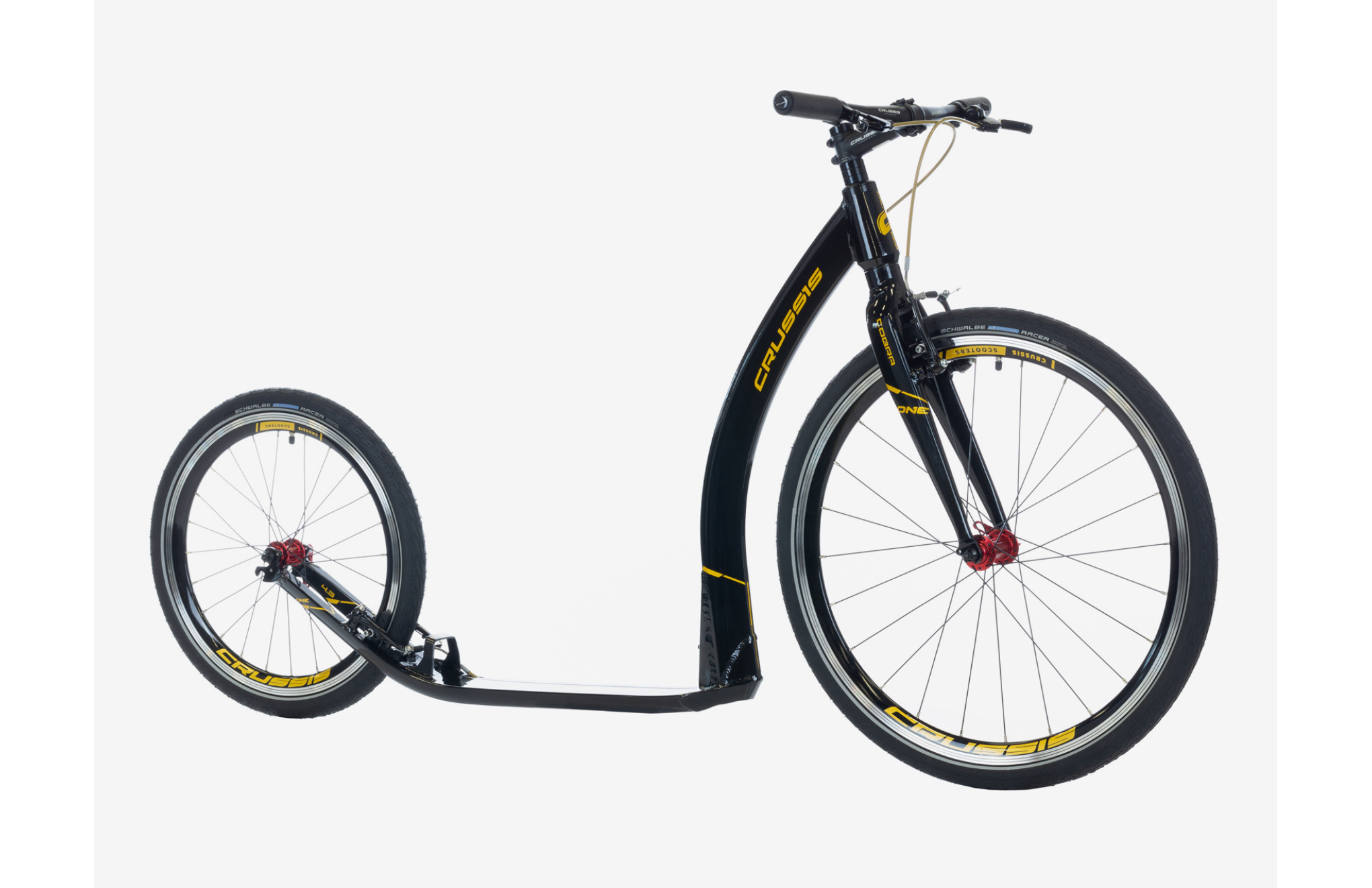

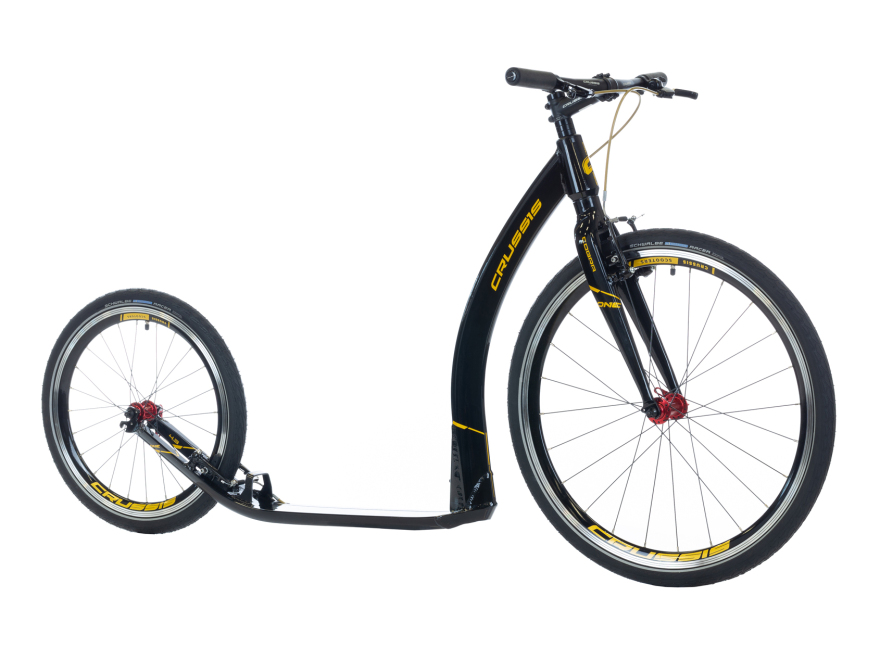

Cobra Scooter Frame
The new aluminium frame of the Cobra scooter with its specific and innovative design has been developed with the highest attention to the functionality of the scooter.
The conical shape of the head tube together with the optimally shaped triangular neck profile increases the frame's strength.
Ground clearance adjustment
Thanks to the use of two levels on the rear fork, you can choose between a higher and lower footboard position and therefore choose the optimal ground clearance for the terrain you are going to ride. For riding on smooth surfaces it is ideal to choose a lower ground clearance (45 mm) and for off-road riding a higher ground clearance (65 mm). Lowering the ground clearance makes riding a scooter less physically demanding, as the standing leg is less bent on the rebound and you "squat" less when riding. That's the point!
Cobra Scooters Tyres
Footboard
The uniquely designed footplate creates a single unit with the rear fork. It is not only a unique design element, but above all a design solution that eliminates the typical fatigue cracks in scooters where the rear fork is usually welded to the footboard.
By keeping a continuous 102mm footboard width along its entire length, including the rear fork, which, along with the 65mm narrow rear hub, minimizes the scooterist's hated ankle kick on rebound. The raised toe of the footboard ensures optimum scooter handling through the terrain; preventing the footboard from "digging" into an obstacle (terrain wave, curb, etc.) and potentially falling off
Rám
frame
Alu 6061
Forks
CRUSSIS fixed, Alu
Kola
Wheel diameter
Front 26"/rear 20"
Brakes
TEKTRO V-brake with integrated bell
Riffs
CRUSSIS 26"/20", double walled, lined
Front tyre
SCHWALBE Marathon Racer Perf, RaceGuard 26x1.5 (40-559)
Rear tyre
SCHWALBE Marathon Racer Perf, RaceGuard 20x1.5 (40-406)
front hub
CRUSSIS with industrial bearings 100 mm, 24D
rear hub
CRUSSIS with industrial bearings 65 mm, 24D
Nosnost
weight
7,635 kg
load capacity
120 kg
Komponenty
handlebars
CRUSSIS Al MTB, 620 mm
stem
CRUSSIS Al, 31,8/100 mm
grips
CRUSSIS, 100% silicone
head composition
Ahead 1 1/8"

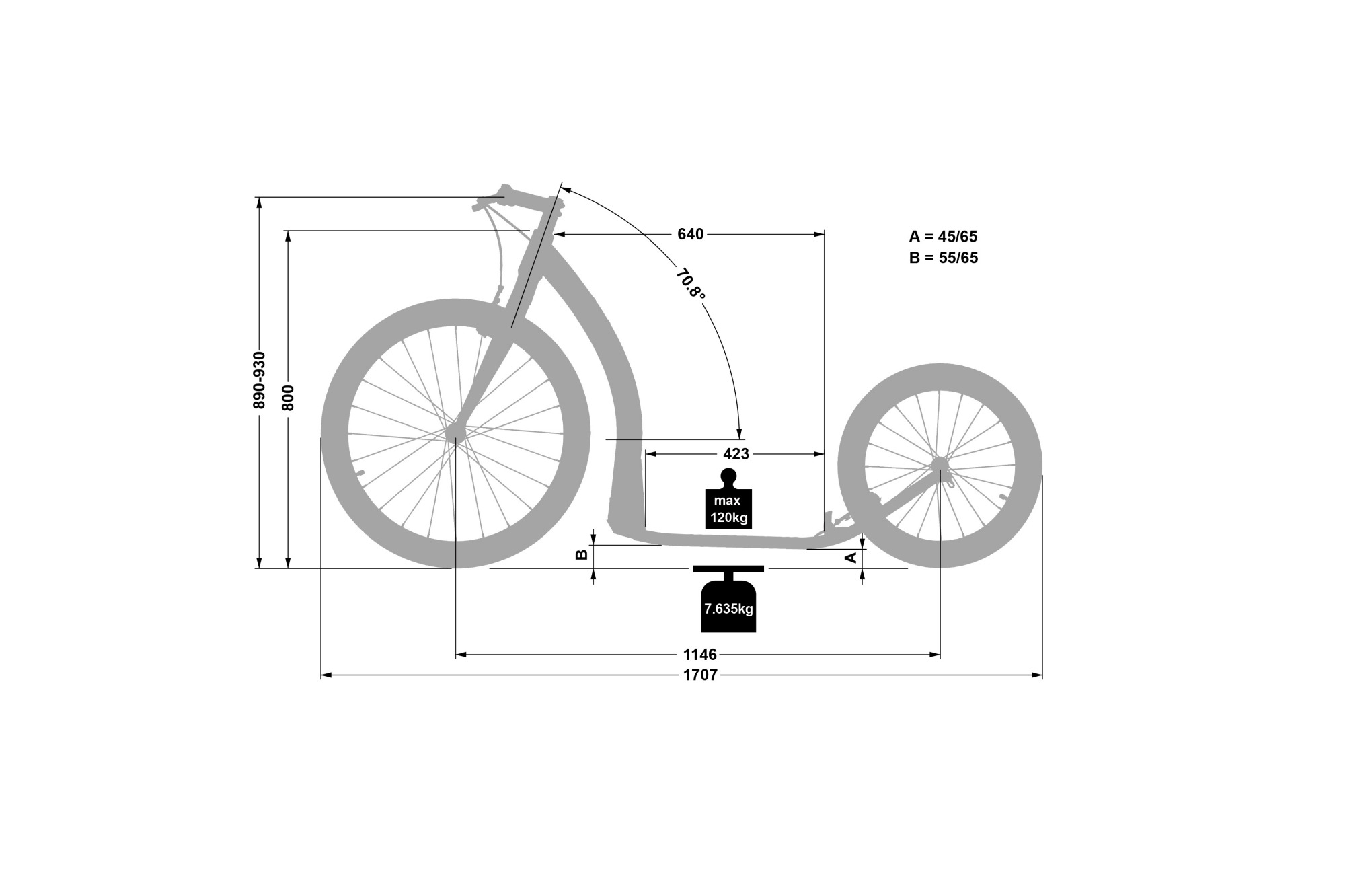

Rozmìry
Height
890 - 930 mm
Length
1707 mm
Ground clearance
45 / 65 mm
Footprint length
423 mm
Wheelbase
1146 mm
