2023/24

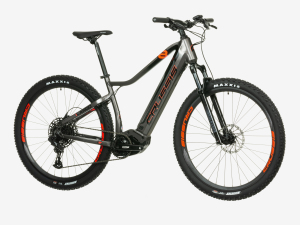

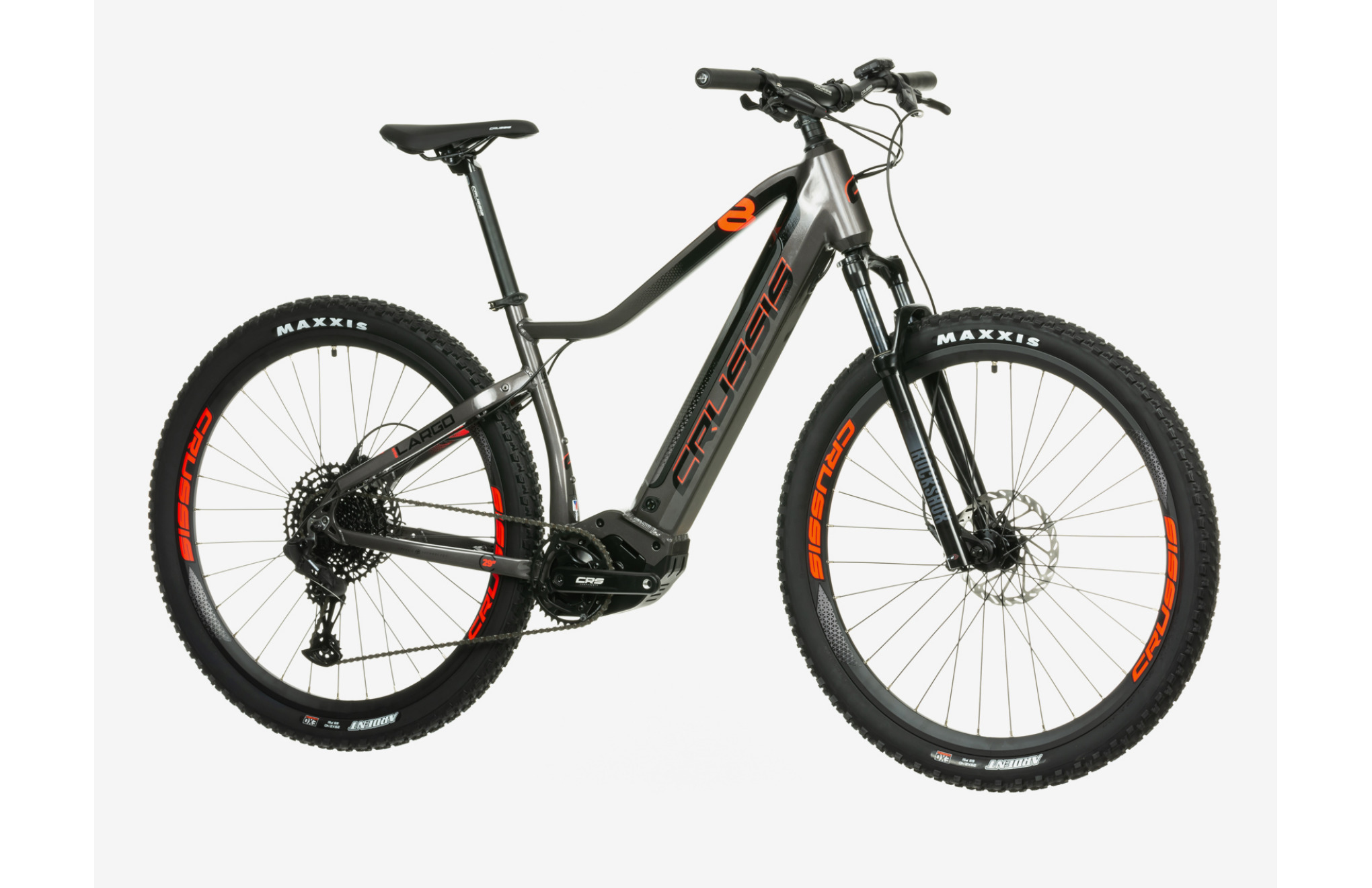

PAN-Largo 8.8-L

2.829 EUR

Model 2023/24
PAN-Largo 8.8-L (20)
3D
PAN-Largo 8.8
PAN-Largo 8.8-1
PAN-Largo 8.8-L (20)
PAN-Largo 8.8-L (20)
PAN-Largo 8.8-L (20)
PAN-Largo 8.8-L (20)
PAN-Largo 8.8-L (20)
PAN-Largo 8.8-L (20)
PAN-Largo 8.8-L (20)
PAN-Largo 8.8-L (20)
PAN-Largo 8.8-L (20)
PAN-Largo 8.8-L (20)
PAN-Largo 8.8-L (20)
PAN-Largo 8.8-L (20)

Sold out

Info objednávka This bike model is no longer available.

Battery capacity

900 Wh (25 Ah)

Battery capacity
Engine performance

75 Nm

Engine performance
Number of gears

1 x 12

Number of gears
Crussis PAN-Largo 8.8-L with twenty-nine wheels, extra strong battery, this is something for you! We developed the Crussis e-Largo 8.7-L with motor PANASONIC GX Power Plus electric bike for your trips in the countryside and mountains. If you are looking for a model with better optional equipment (fork, motor...), check out the OLI-Largo 8.8, e-Largo 9.8 or PAN-Largo 9.8.
crussis-horska3

Components

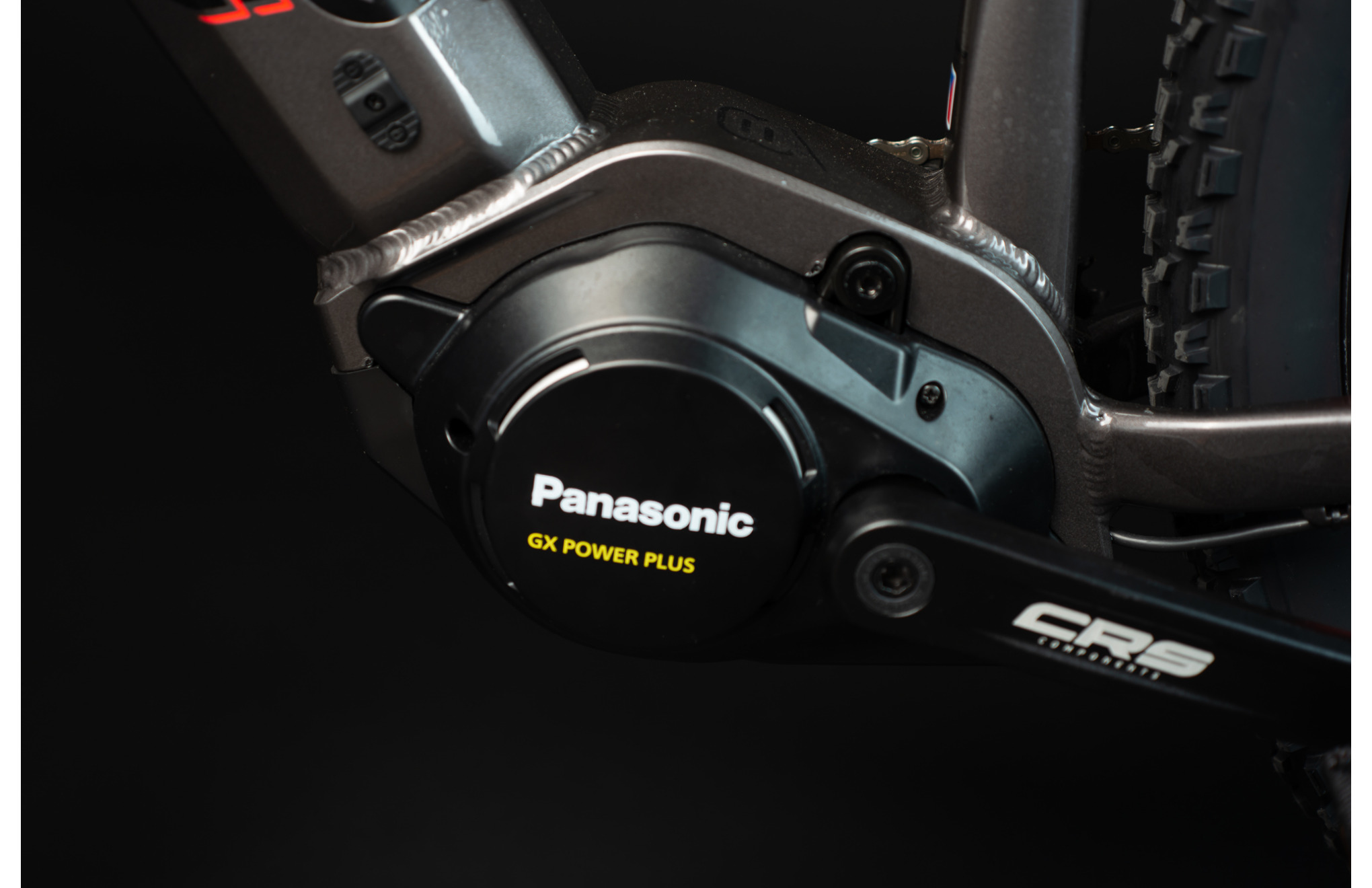

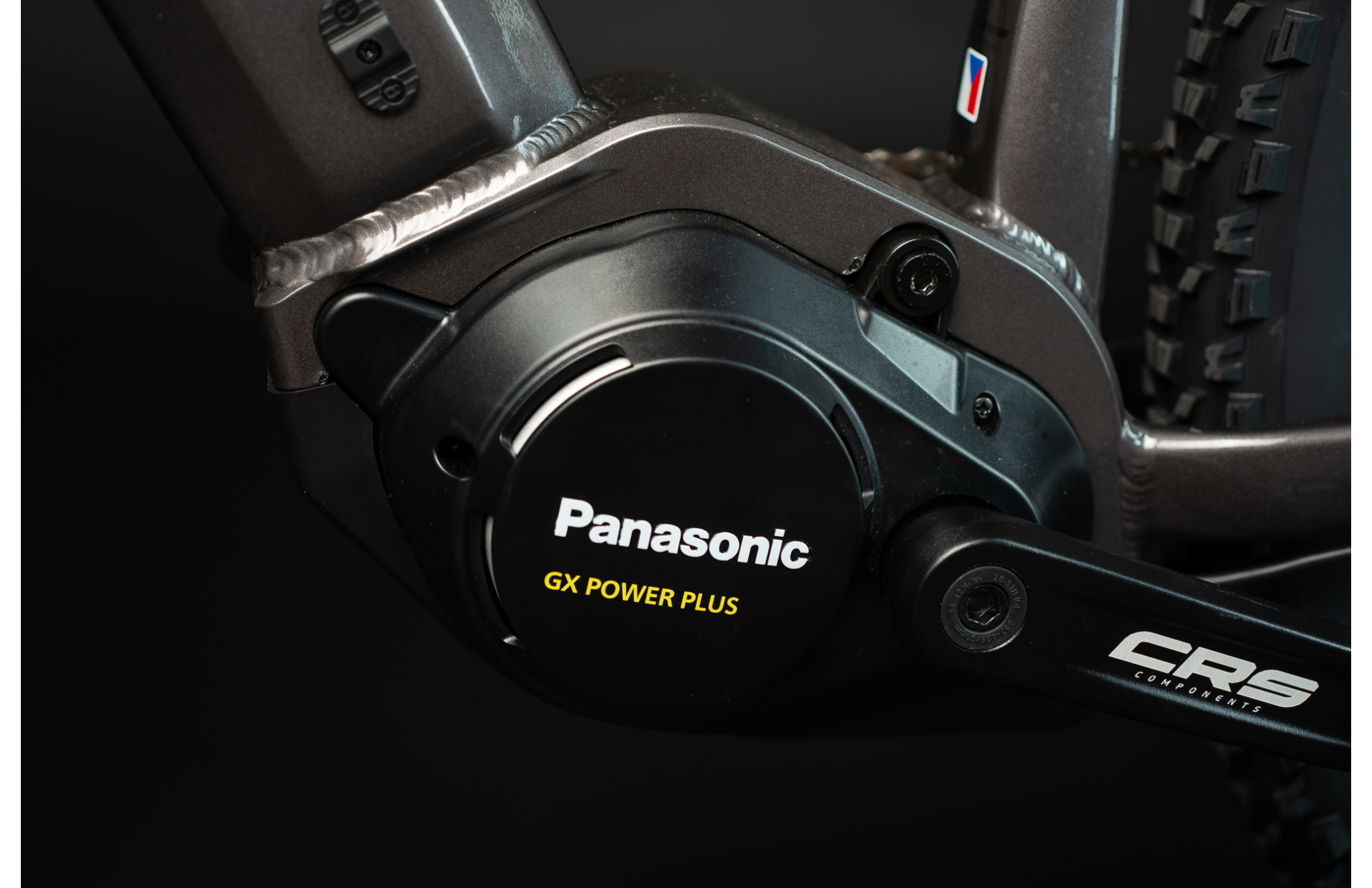

Motor

Motor

PANASONIC GX Power Plus 75 Nm

Experience a new dimension of adventure on an electric bike with the PANASONIC GX Power Plus motor! With a torque of 75 Nm and an extremely light weight of 3.2 kg, this engine is ideal for sporty riding in the mountains as well as demanding trekking trips. Whether you're weaving through forest trails or gravel roads, the PANASONIC GX Power Plus will provide you with excellent performance and support on any surface. Breathe life into your e-bike with this cutting-edge technology!

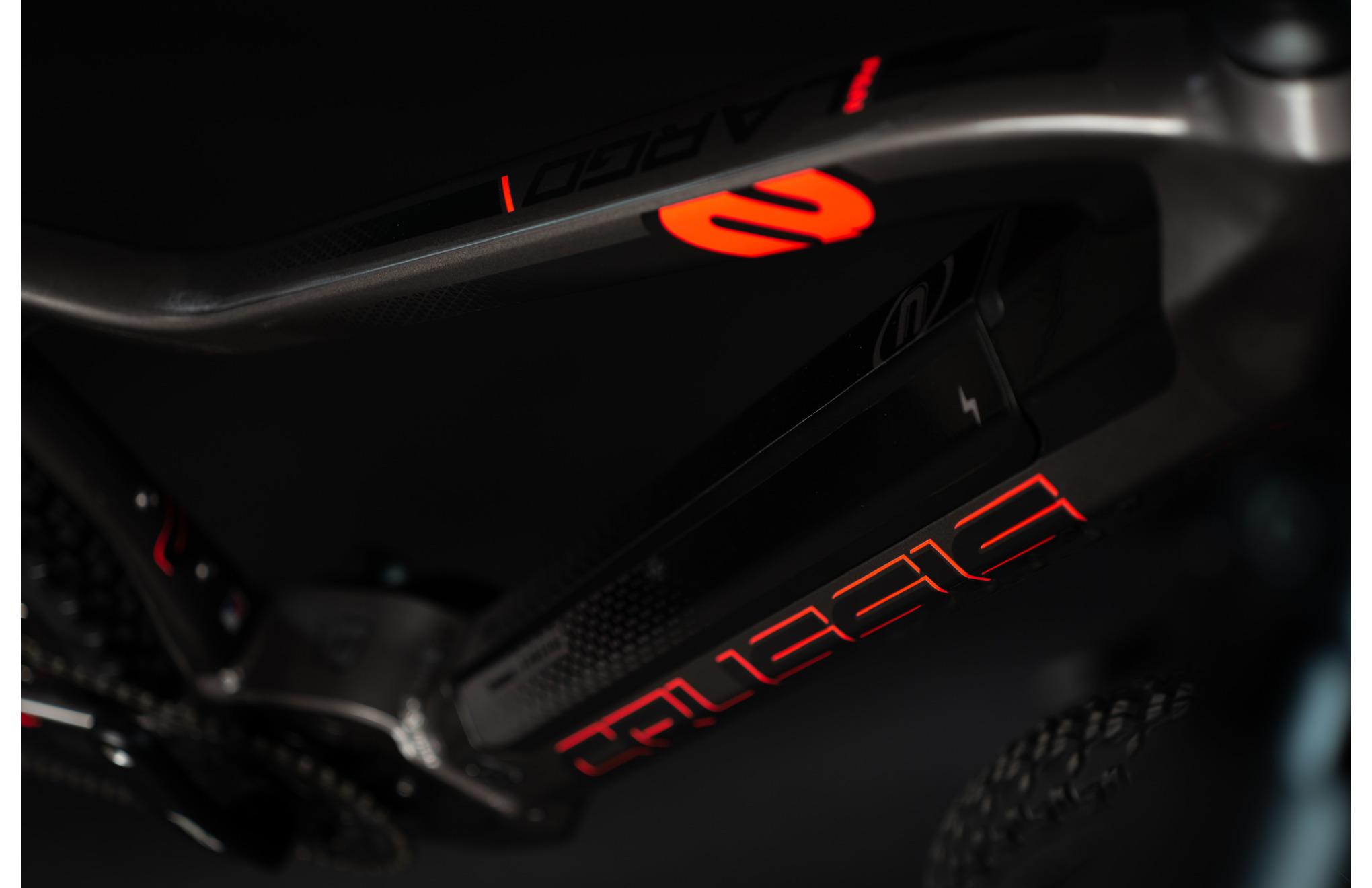

Battery

Battery

SAMSUNG 900 Wh (25 Ah)

The heart of the e-bike's power supply system is a battery with Samsung 36V / 900 Wh (25 Ah) Li-Ion cells. The battery is capable of taking the e-bike up to 200 km on a single charge. However, it always depends of course on the profile of the track and how the assistance is used.

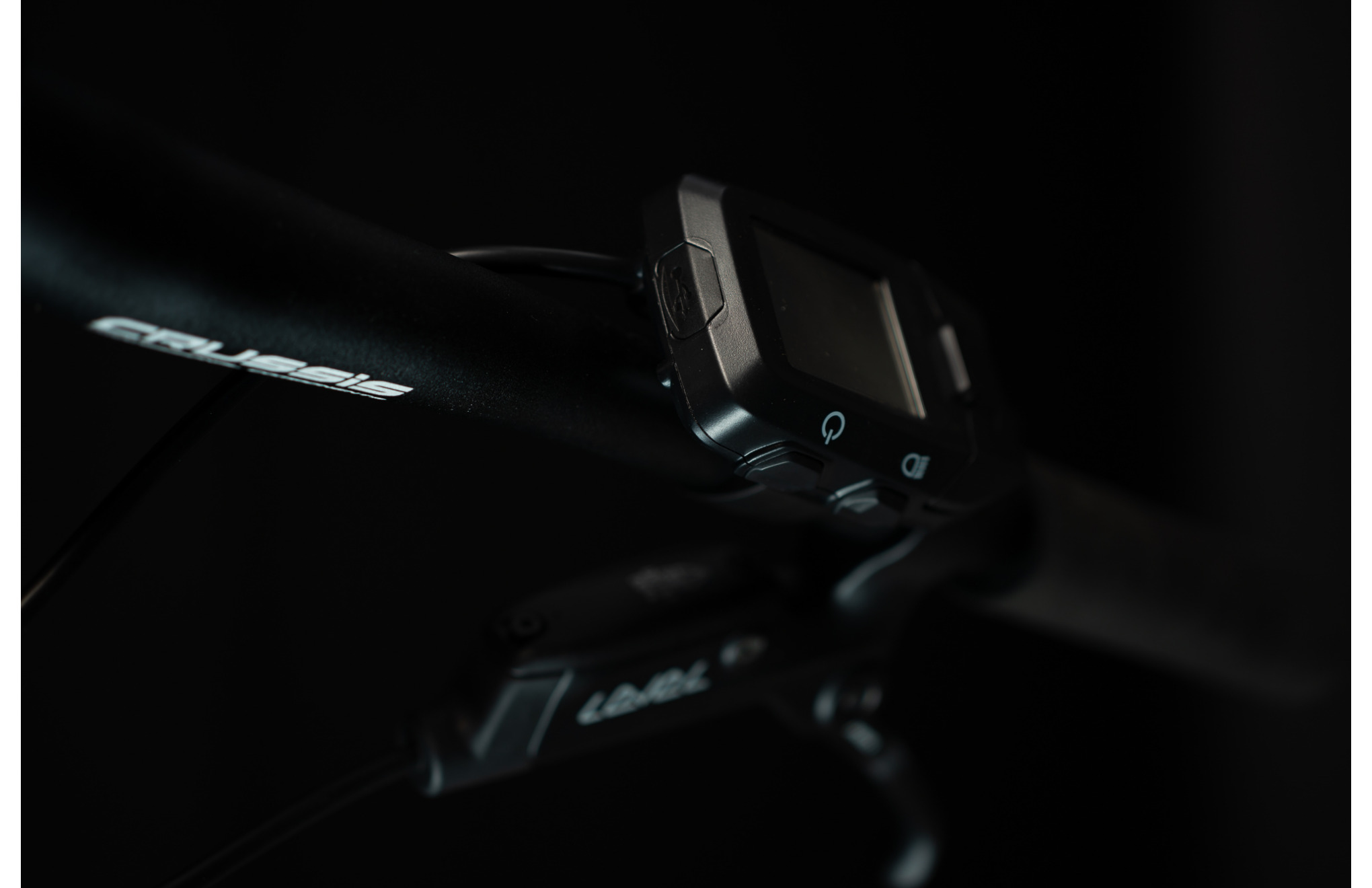

Display

Display

PANASONIC LCD display  - Colour

Control your e-bike with a color LCD display from PANASONIC, located on the left side of the handlebars. The elegantly designed display is equipped with a USB port for convenient charging of your phone. With three assistance modes – HIGH, STANDARD and ECO – you have control over the e-bike's performance. In addition, in the dynamic AUTO mode, the engine reacts to the force with which you press the pedals and automatically adapts the torque, giving you optimal assistance in the full range of engine performance. The display is weatherproof with IPX5 certification, which means high water resistance. Take control of your ride with this cutting-edge display from PANASONIC!

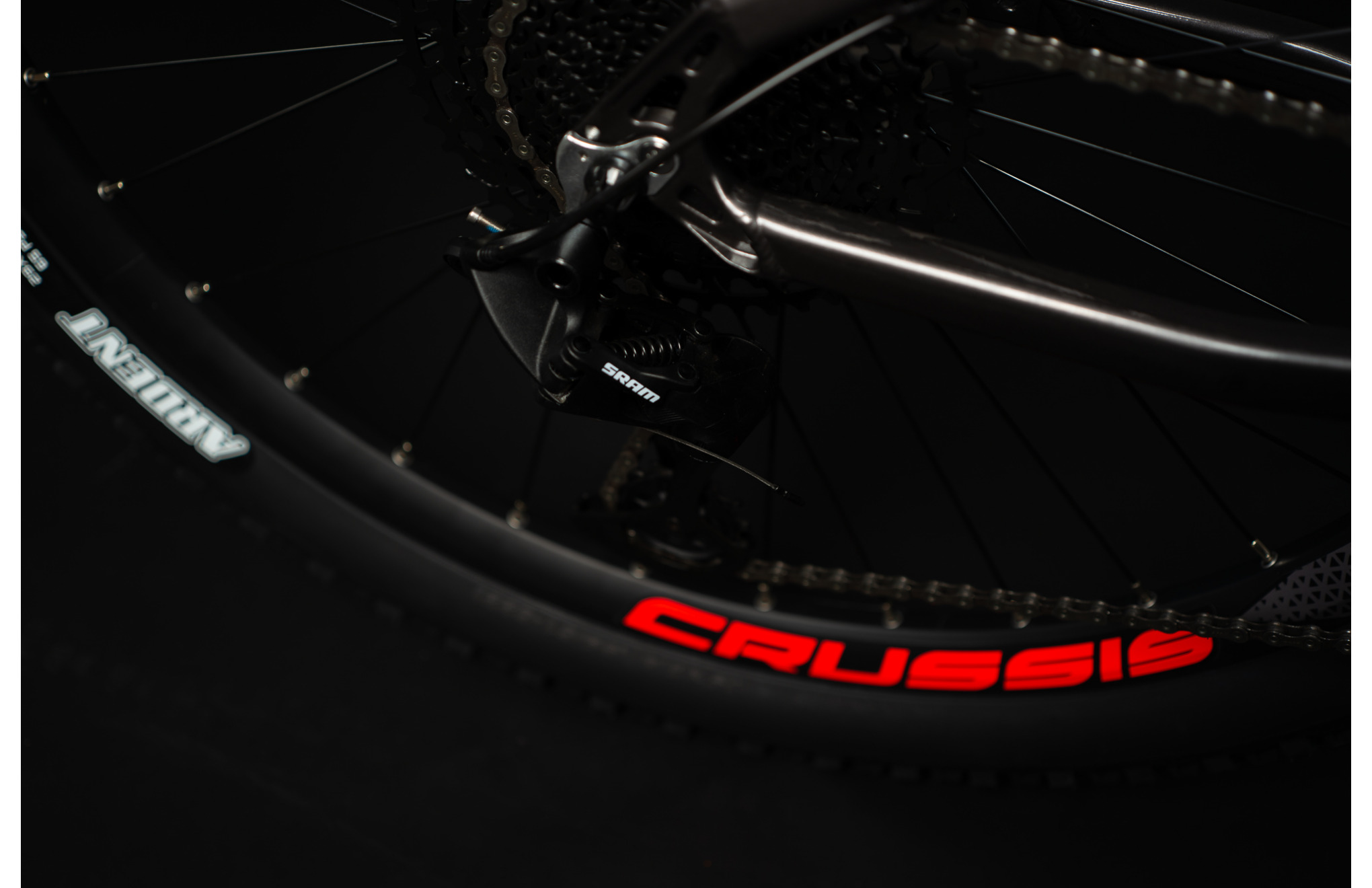

Gearing

Gearing

SRAM SX Eagle, 12 speed

Eagle™ technology from SRAM delivers smoother, more precise shifting with exceptional reliability. Eagle™ technology is revolutionizing MTB by offering cyclists a single-speed drivetrain that's designed to be just right - lightweight, durable, intuitive handling and a range of gears for all-terrain riding. Eagle™. The SX Eagle™ with 12 speeds is here to make it easier than ever for more cyclists to access the benefits of the Eagle™ system.

Suspension Fork

Suspension Fork

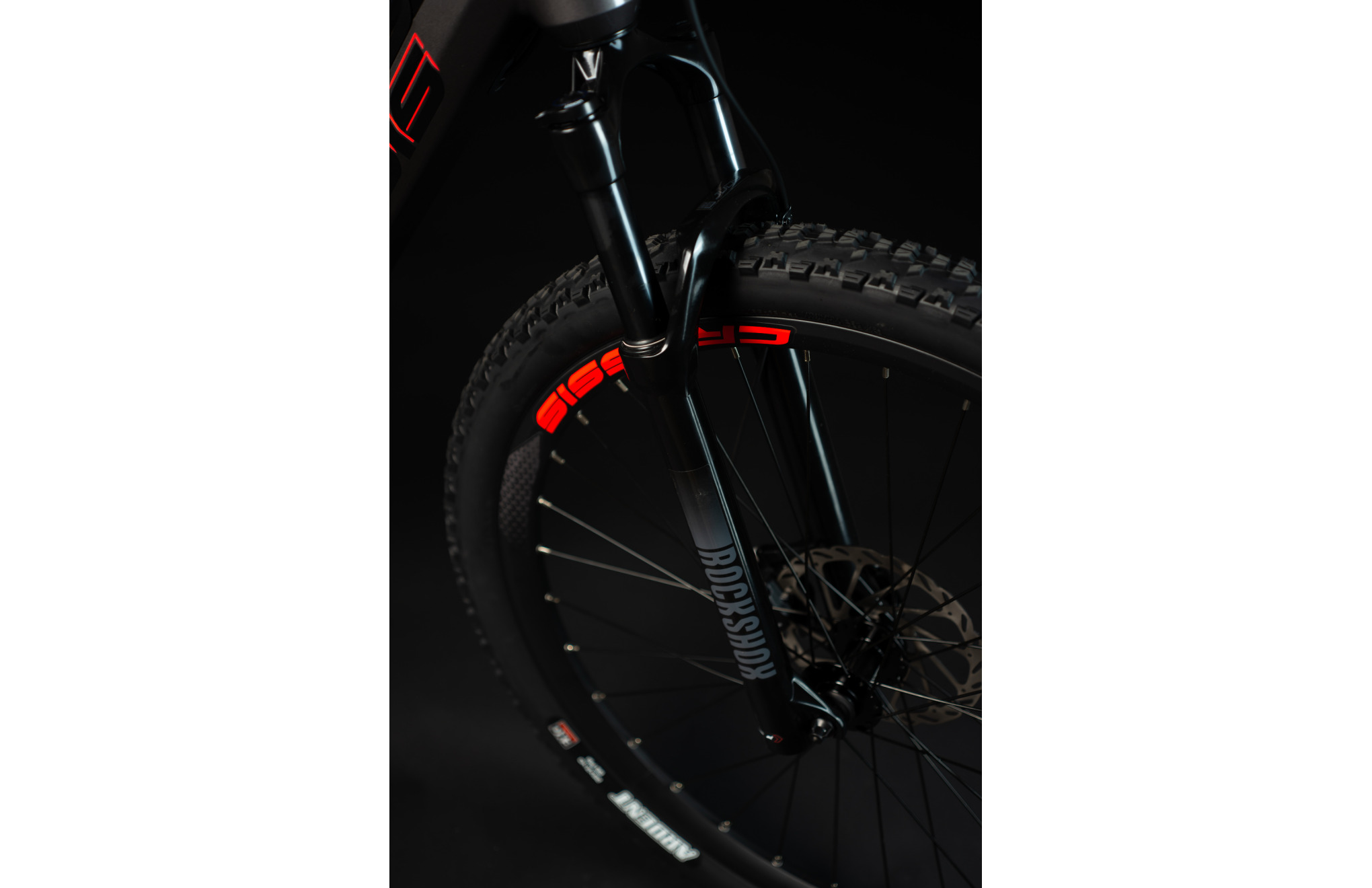

ROCKSHOX FS Judy Silver TK Solo Air 29"

Treat yourself to a comfortable ride with the ROCKSHOX FS Judy Silver TK Solo Air 29" air-suspended fork. With 100 mm of travel and simple air pressure adjustment, the fork easily adapts to your weight and riding style. It precisely absorbs off-road bumps and remains stable on the flat. For maximum control you can simply lock the suspension directly from the fork crown. Enjoy a smooth and worry-free ride on any terrain with this fork!

crussis-horska4

Technical specifications

Performance Ikona plus Ikona minus

Range

to 200 km

batteries

SAMSUNG Li-Ion 36V / 900 Wh (25 Ah)

Motor

PANASONIC GX Power Plus, 250W (MAX 450W) 75 Nm

control

PANASONIC LCD panel, color display

control unit

Integrated in the engine

pedal sensor

torsion

charger

4 A (included)

pedals

WELLGO, alu with reflector

USB port

USB Micro-B

Walking assistant

yes

Frame Ikona plus Ikona minus

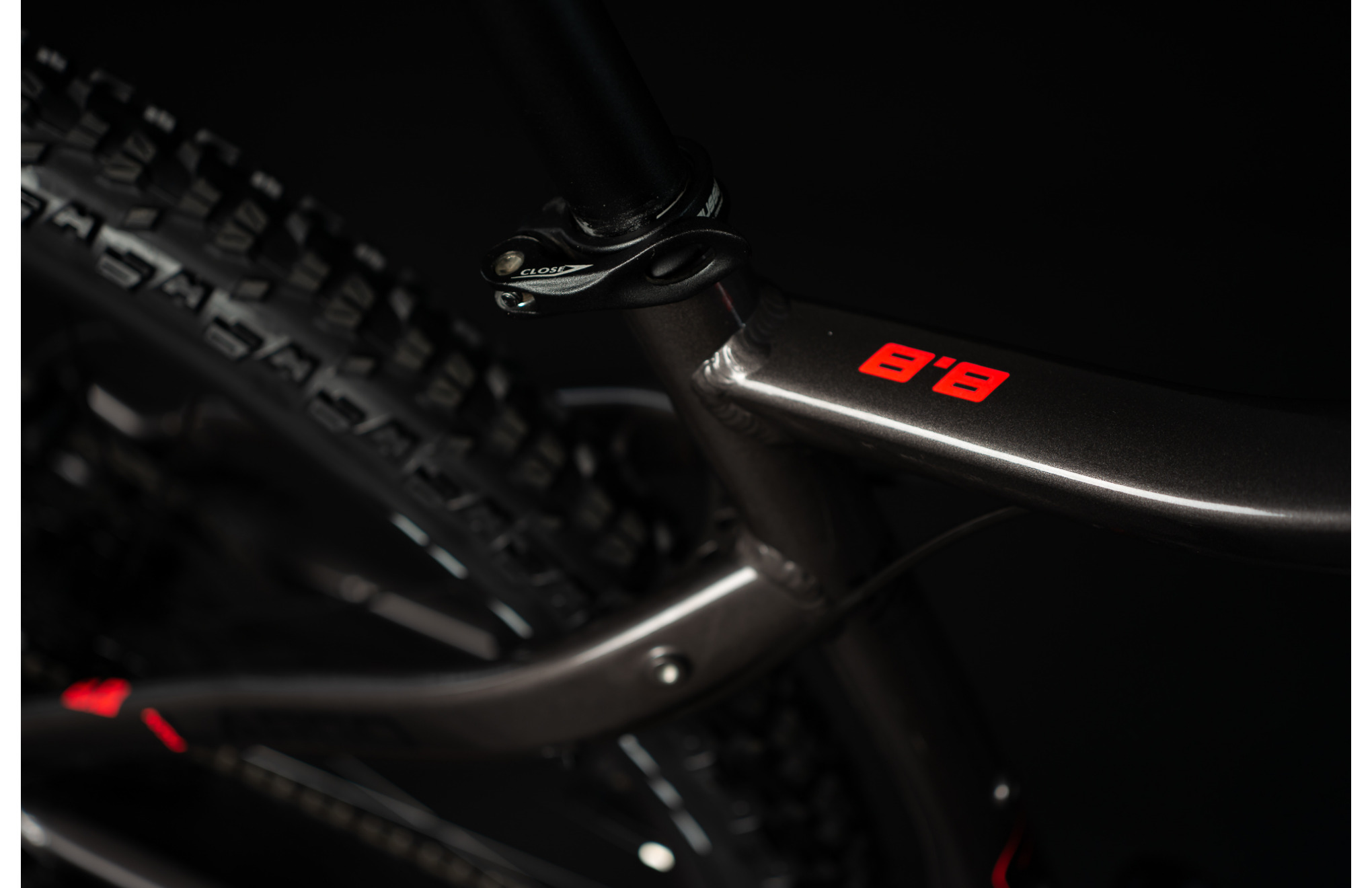

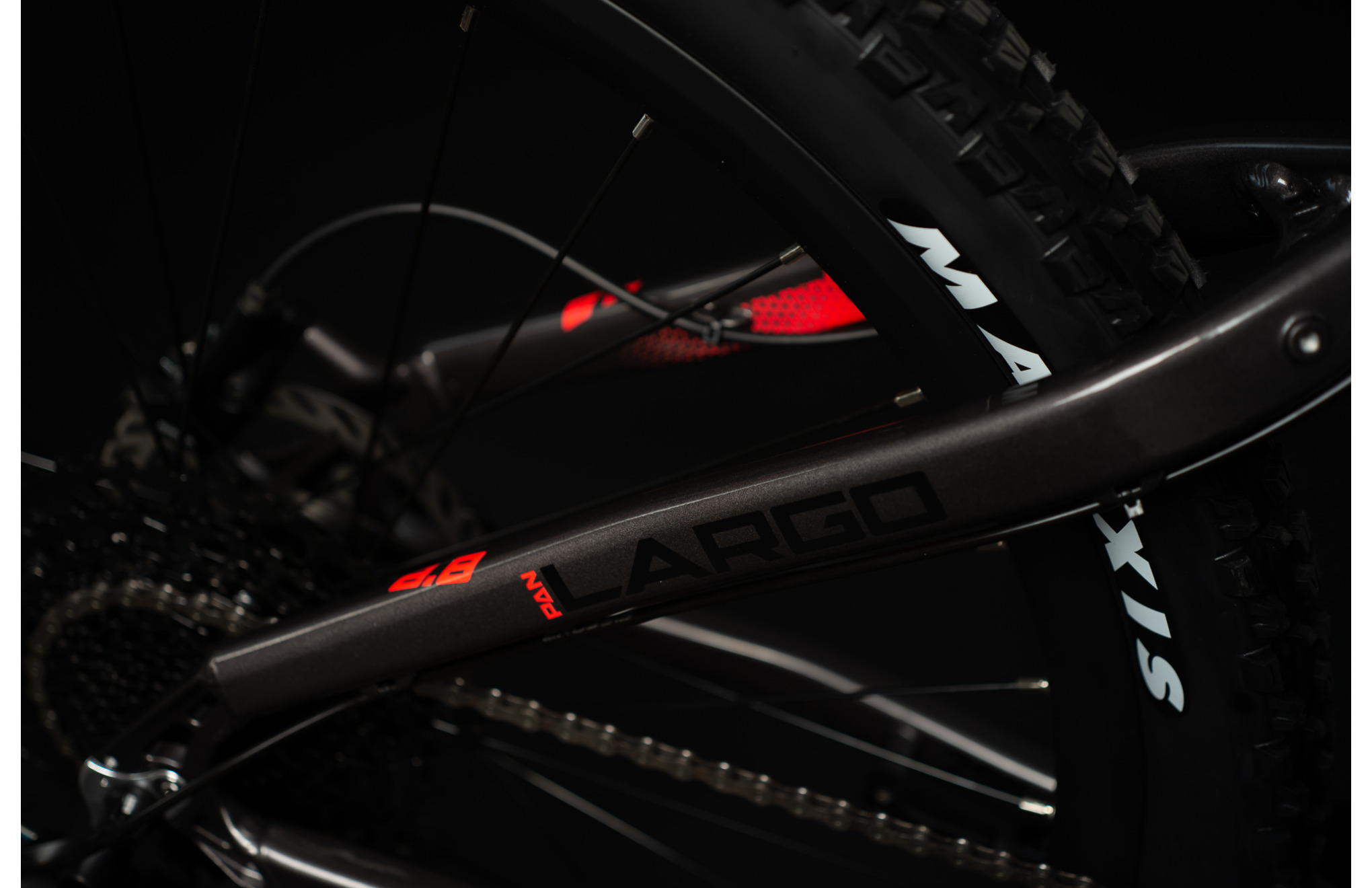

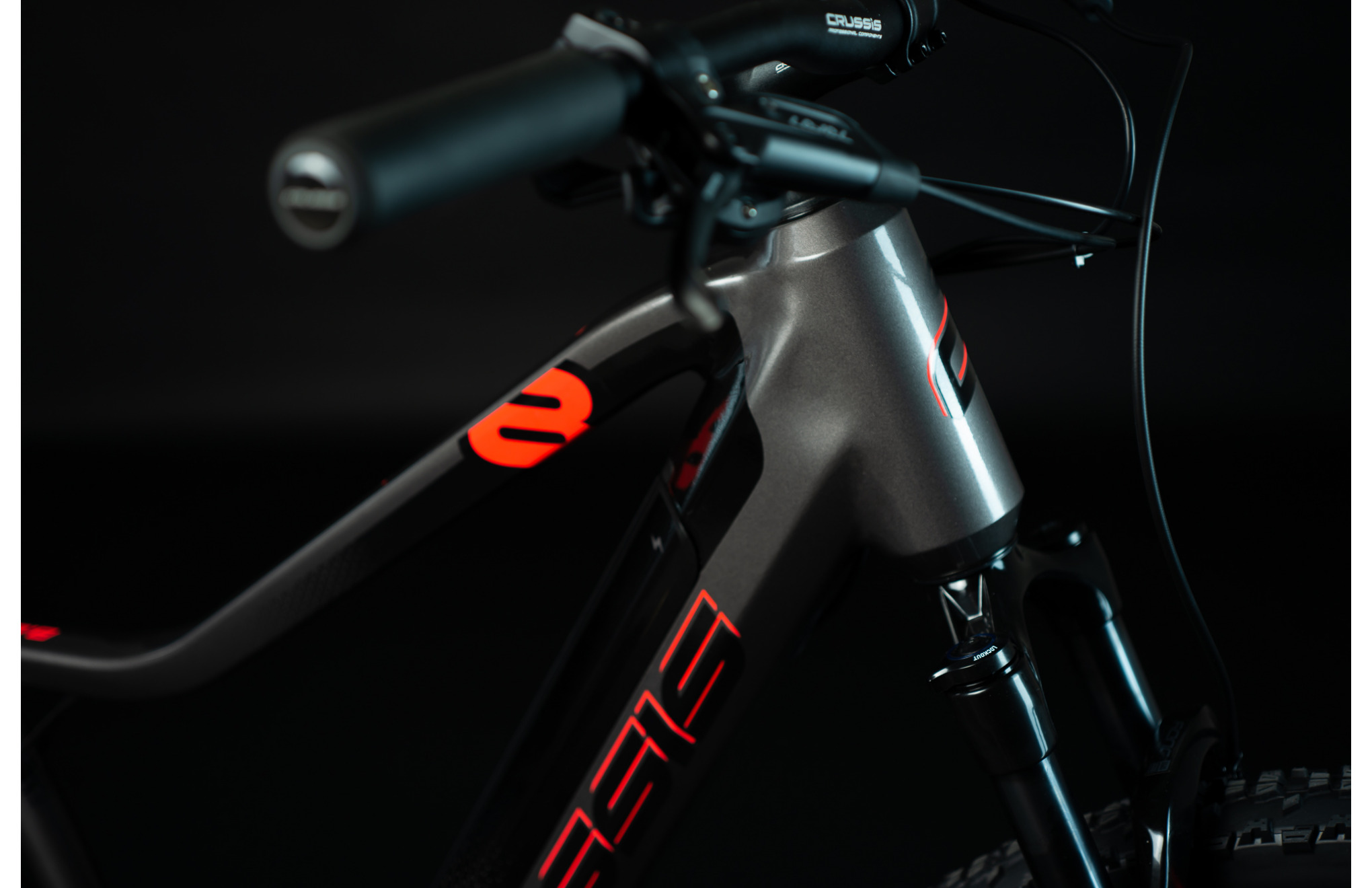

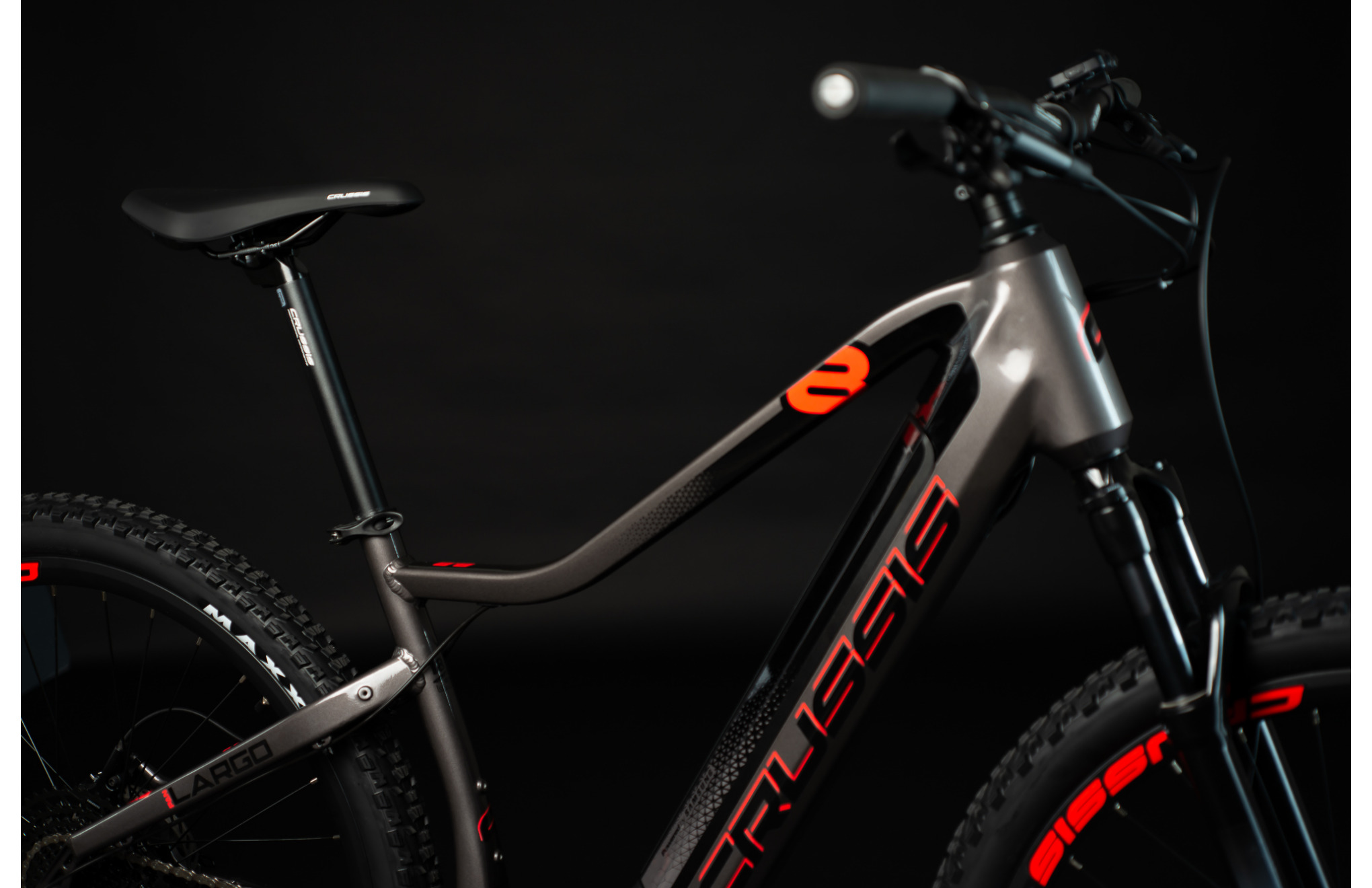

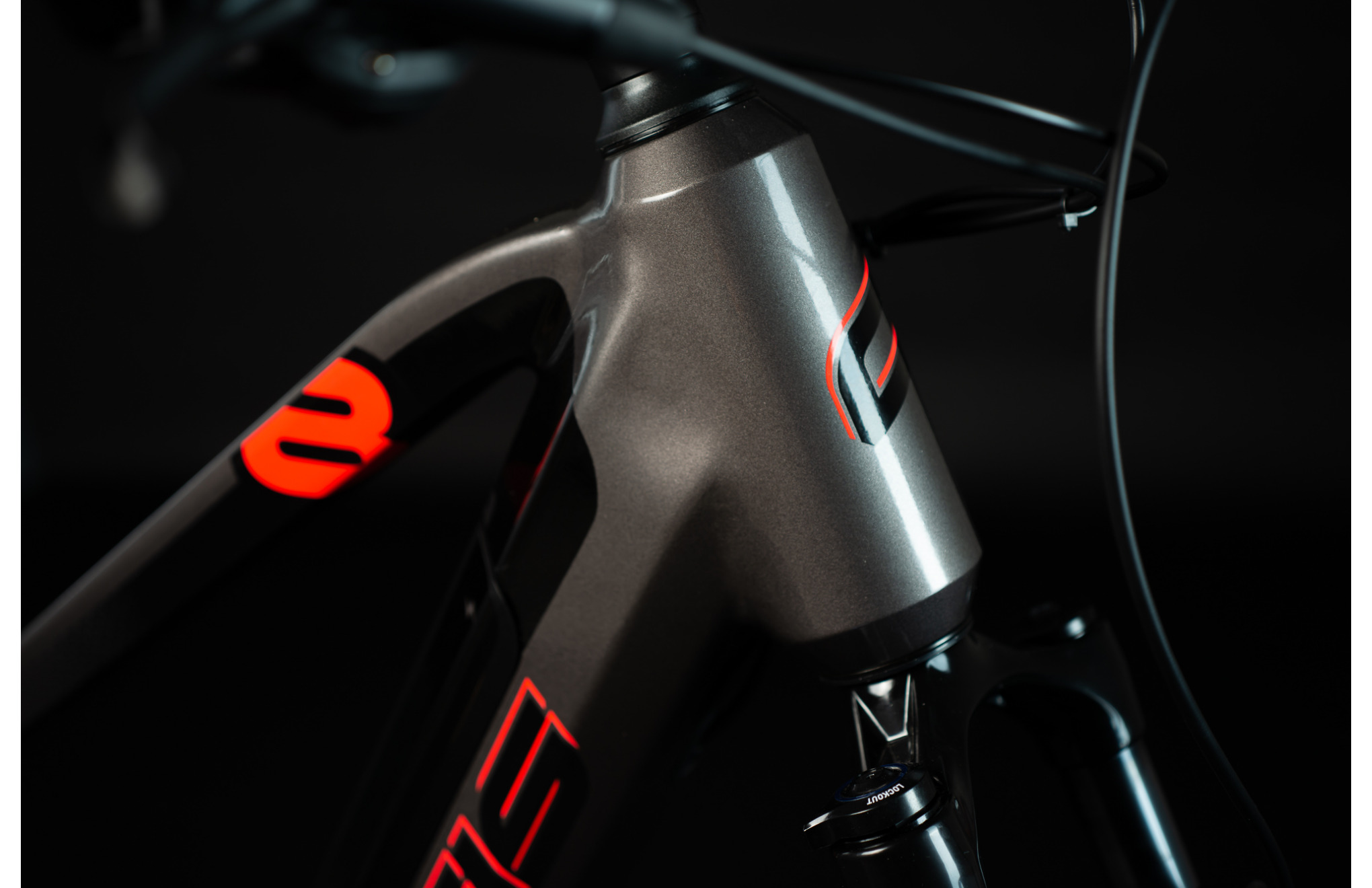

frame

Alu 6061- frame size 20"

Fork

ROCKSHOX FS Judy Silver TK Solo Air 29", 100 mm travel, fork lock,

Wheels Ikona plus Ikona minus

Wheel diameter

29"

Rims

CRUSSIS 29", double walled, lined, 25mm

Hubs

CRUSSIS disc, wreath bearing, 32D

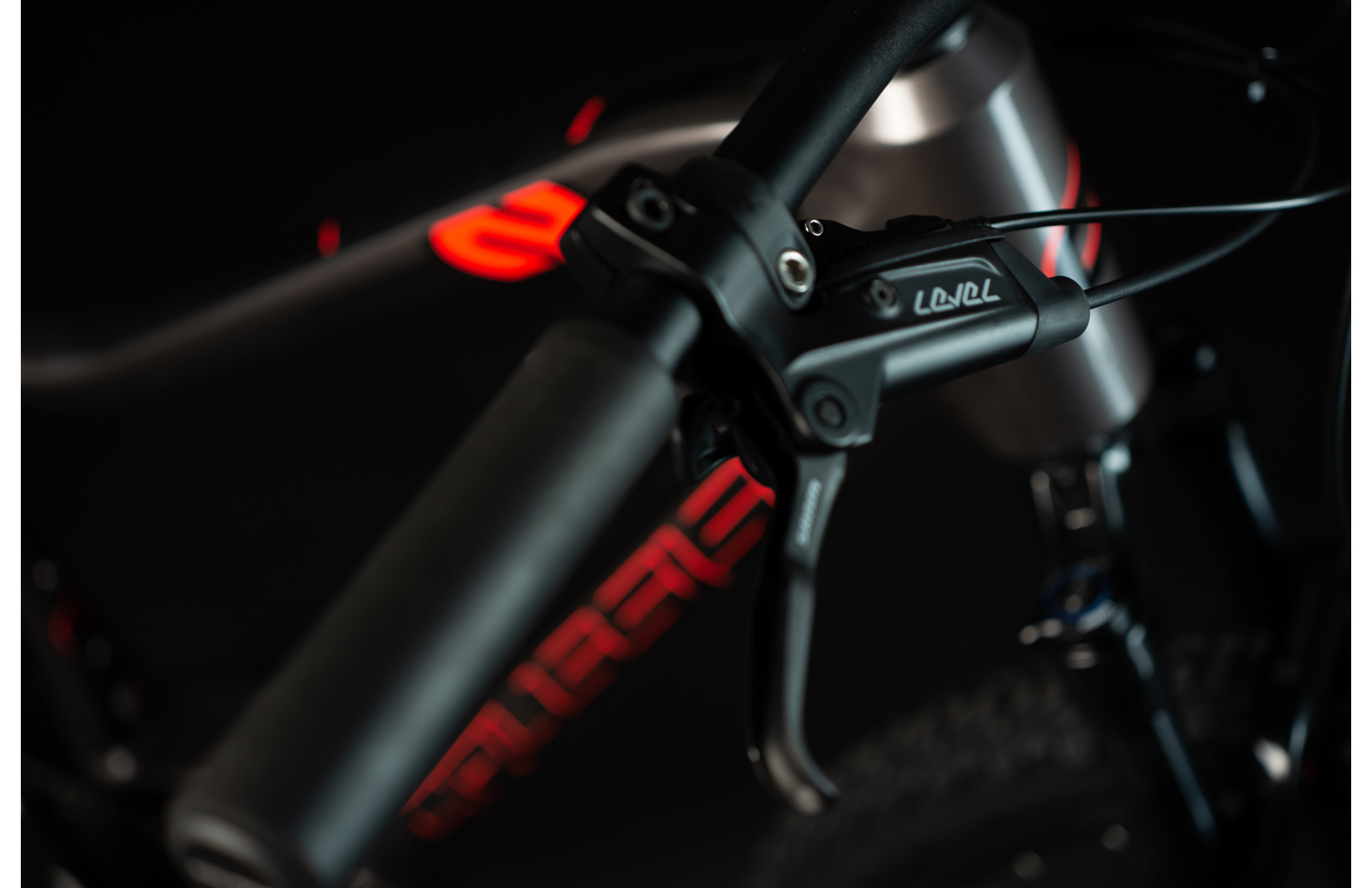

front brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 180 mm rotor

rear brake

SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 160 mm rotor

tires

MAXXIS Ardent 29 x 2,40

Load capacity Ikona plus Ikona minus

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,

load capacity

120 kg

Components Ikona plus Ikona minus

handlebars

CRUSSIS Al, 760 mm

stem

CRUSSIS Al, 60 mm, solid

grips

CRUSSIS, 100% silicone

head composition

Semi 1 1/8

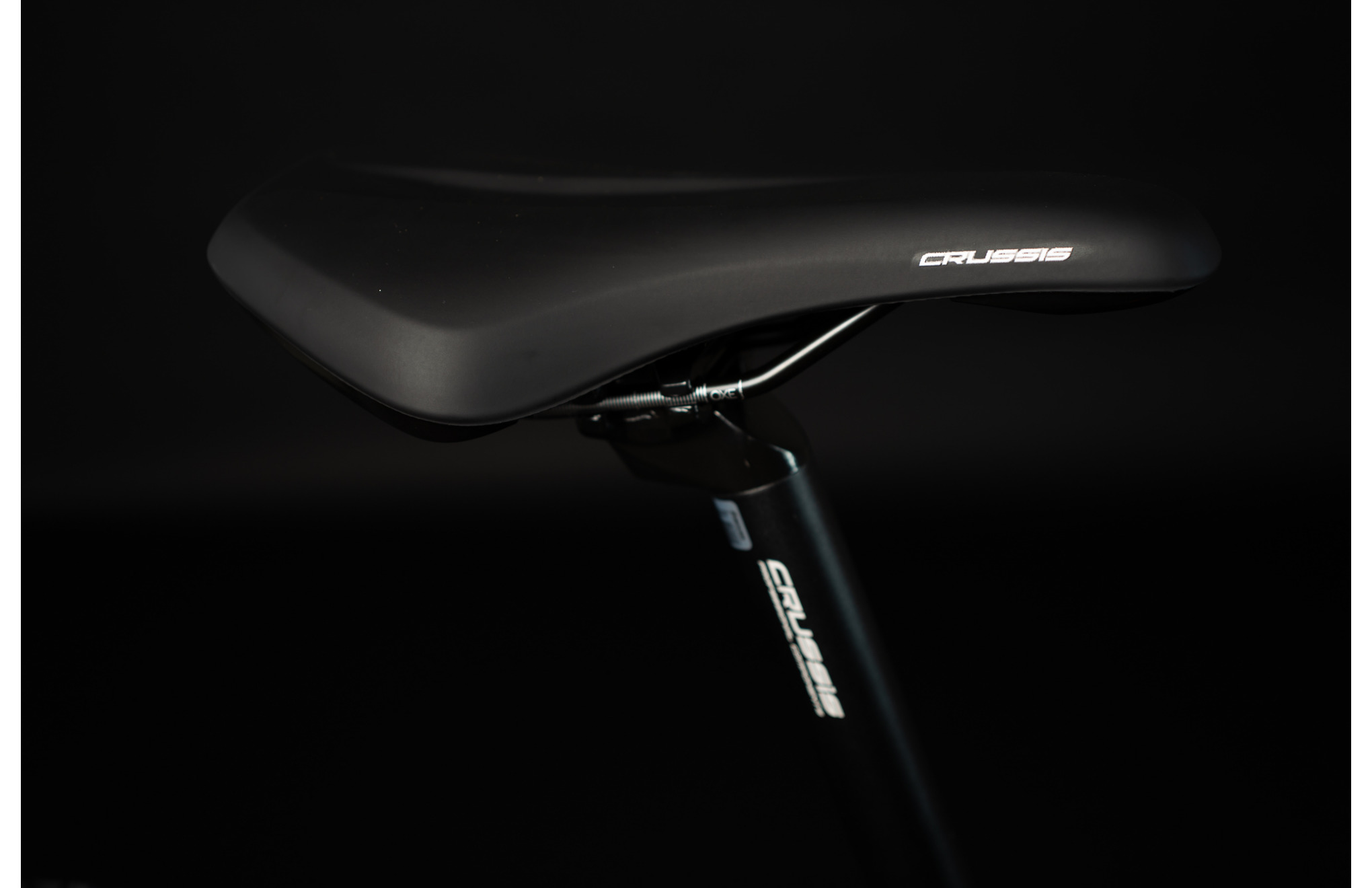

seat

Selle ROYAL

seat post clamp

CRUSSIS with RU Al, black 34,9

seat post

CRUSSIS with lock, 30,4 / 400 mm

Gearing Ikona plus Ikona minus

Number of gears

1 x 12

shifter

SRAM Eagle SX 12s

shifting

SRAM SX Eagle

chain

SRAM Eagle SX 12s

cassette / multiwheel

Semi 1 1/8

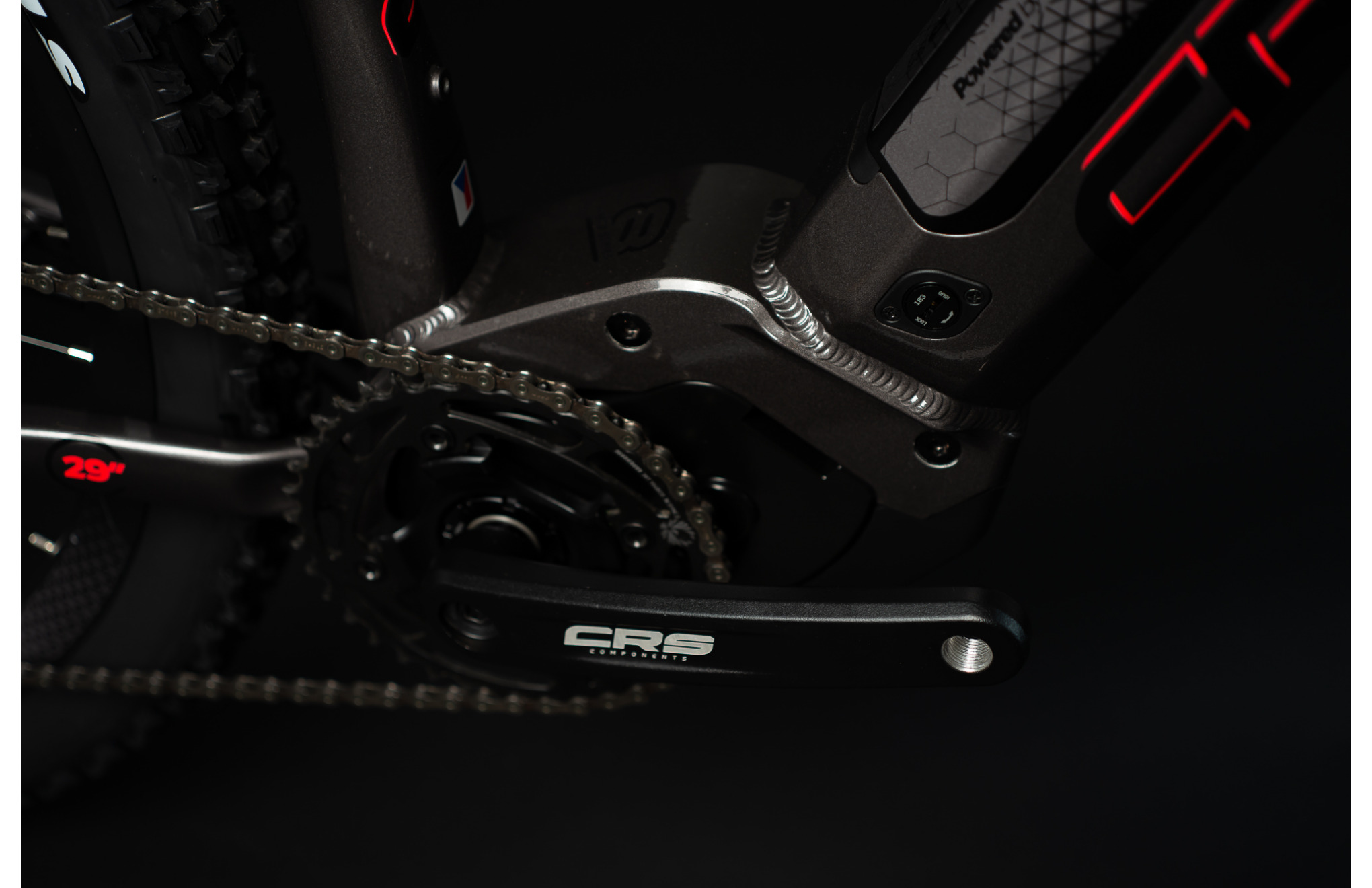

converter and cranks

SRAM X-SYNC 2 38Z, CRS ISIS 170 mm
