2023/24

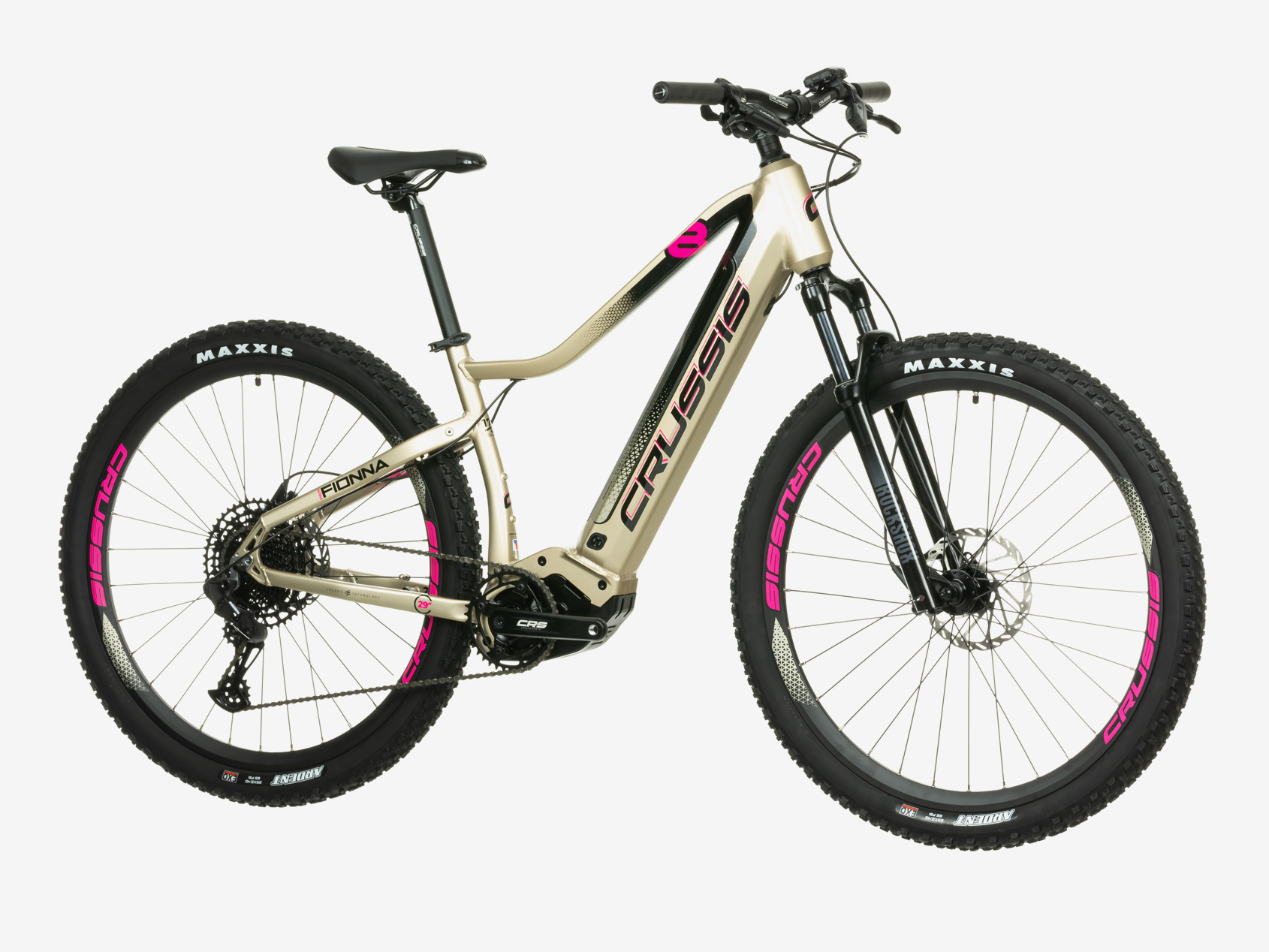

PAN-Fionna 8.8-M
2.669 EUR
Sold out
This bike model is no longer available.
2023/24
2.669 EUR
Sold out
This bike model is no longer available.
Baterie
The heart of the e-bike's power supply system is a battery with Samsung 36V / 720 Wh (20 Ah) Li-Ion cells. The battery is capable of taking the e-bike up to 170 km on a single charge. However, it always depends of course on the profile of the track and how the assistance is used.
Gearing
Eagle™ technology delivers smoother, more precise shifting with exceptional reliability. Eagle™ technology is revolutionizing MTB by offering cyclists a single-speed drivetrain that's designed to be just right - lightweight, durable, intuitive handling and a range of gears for all-terrain riding. Eagle™. The SX Eagle™ is here to make it easier than ever for more cyclists to access the benefits of the Eagle™ system.
Suspension Fork
The ROCKSHOX FS Judy Silver TK Solo Air 29" air fork with 100 mm travel is perfectly adapted to the rider's weight. Simply adjust the air pressure in the fork and the e-bike fully adapts to your weight and riding style. The well-adjusted fork then perfectly absorbs shock when riding off-road, while not "flexing" unnecessarily on flat surfaces.

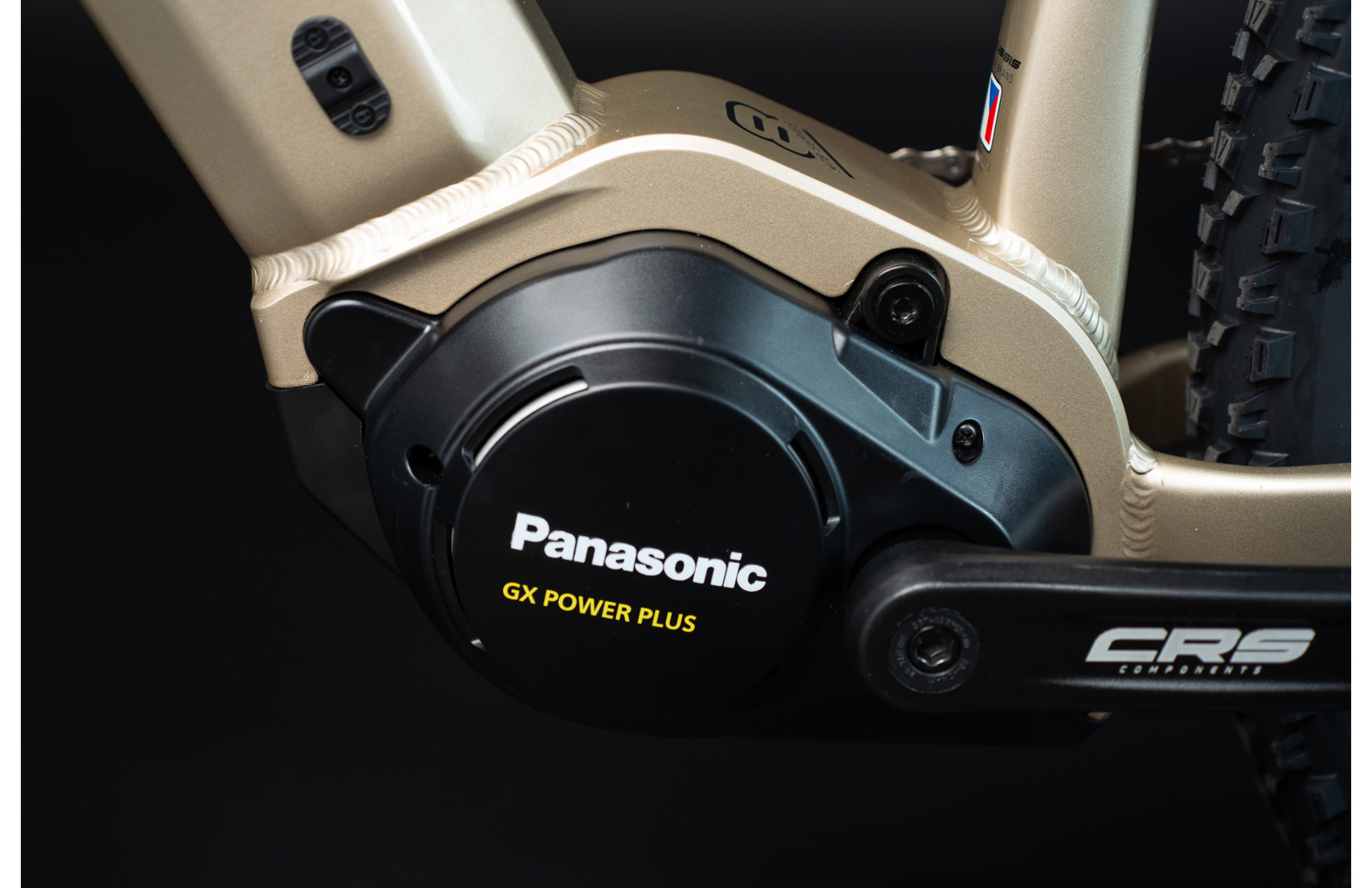

Motor
The motor with a torque of 75 Nm and a weight of 3.2 kg is suitable for sport and trekking e-bikes.
Great performance for riders who need more support especially on rough terrain (forest and gravel roads).
Display
Panasonic LCD display with remote control from the handlebar on the left side. The display is equipped with a USB port for phone charging. In addition to the three assistance modes HIGH, STANDARD and ECO, there is also a dynamic AUTO mode that provides assistance depending on rider torque input. The display is IPX5 rated.
Performance
Range
to 170 km
batteries
SAMSUNG Li-Ion 36V / 720 Wh (20 Ah)
Motor
PANASONIC GX Power Plus, 250W (MAX 450W) 75 Nm
control
PANASONIC LCD panel, color display
control unit
Integrated in the engine
pedal sensor
torsion
charger
4 A (included)
pedals
WELLGO, alu with reflector
USB port
USB Micro-B
Walking assistant
yes
Frame
frame
Alu 6061- frame size 17"
Fork
ROCKSHOX FS Judy Silver TK Solo Air 29", 100 mm travel, fork lock,
Wheels
Wheel diameter
29"
Rims
CRUSSIS 29", double walled, lined, 25mm
Hubs
CRUSSIS disc, wreath bearing, 32D
front brake
SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 180 mm rotor
rear brake
SHIMANO Deore BR-MT410 or SRAM Level, hydraulic, 160 mm rotor
tires
MAXXIS Ardent 29 x 2,40
Load capacity
weight
The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to, Some brands quote artificially reduced weights, To find out the weight of a bike, you need to have it weighed in-store,
load capacity
120 kg
Components
handlebars
CRUSSIS Al, 700 mm
stem
CRUSSIS Al, 60 mm, solid
grips
CRUSSIS, 100% silicone
head composition
Semi 1 1/8
seat
Selle ROYAL
seat post clamp
CRUSSIS with RU Al, black 34,9
seat post
CRUSSIS with lock, 30,4 / 350 mm
Gearing
Number of gears
1 x 12
shifter
SRAM Eagle SX 12s
shifting
SRAM SX Eagle
chain
SRAM Eagle SX 12s
cassette / multiwheel
Semi 1 1/8
converter and cranks
SRAM X-SYNC 2 38Z, CRS ISIS 170 mm
