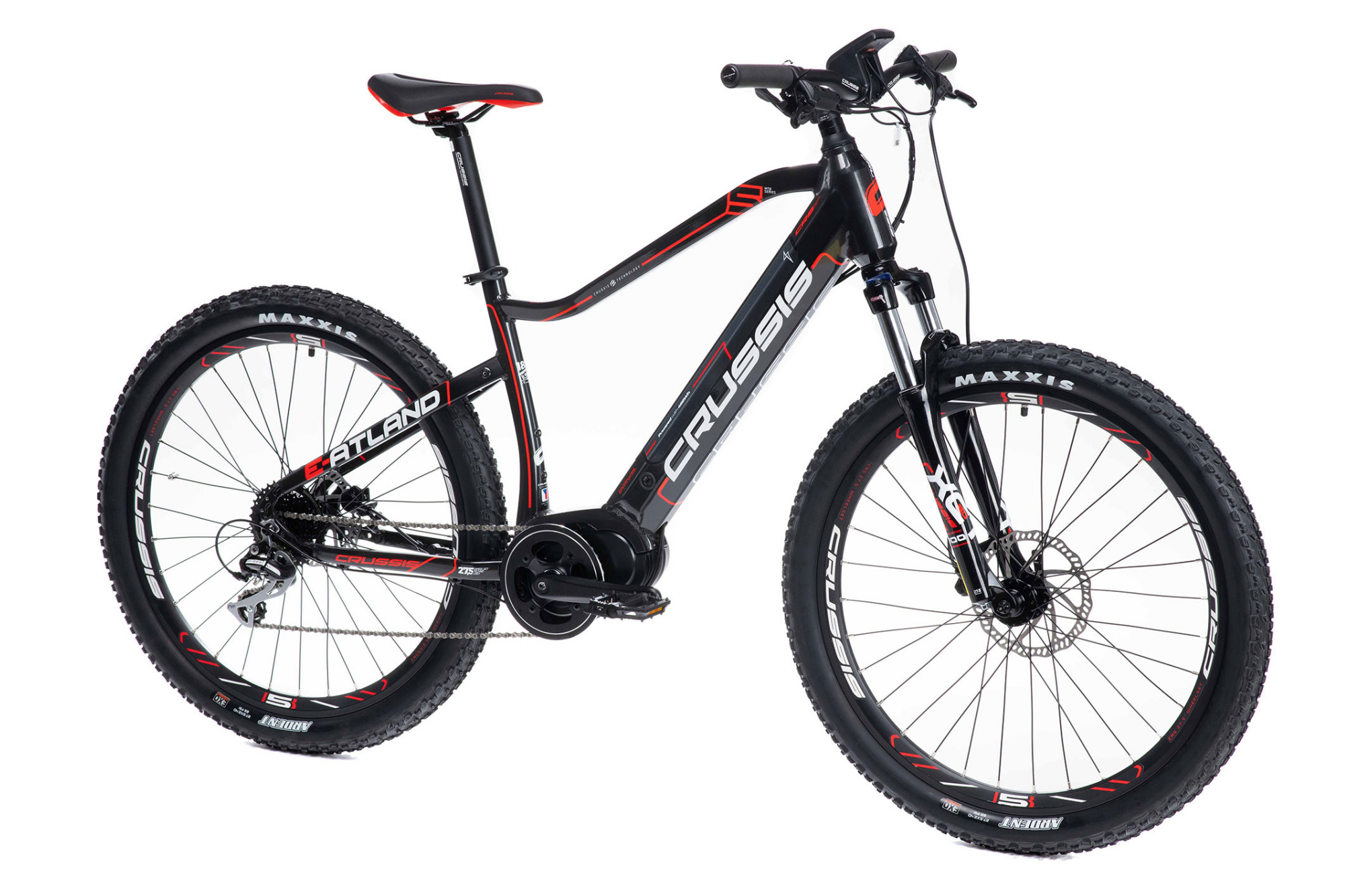

e-Atland 5.6

Range

to 115 km

batteries

Li-Ion 36V / 468 Wh (13 Ah)

Motor

BAFANG MAX drive (M400), center drive, 250W (max 500W), 80 Nm

Engine location

Bafang - central

control

BAFANG LCD panel, 5 levels of assistance, black and white display

control unit

Integrated in the engine

pedal sensor

torsion

charger

2 A (included)

pedals

WELLGO, alu with reflector

USB port

no

Walking assistant

yes

frame

Alu 6061, frame size 18" / 20"

Fork

SUNTOUR XCT30 HLO DS 27,5", 100 mm travel, lockable from fork,

Wheel diameter

27,5"

Rims

CRUSSIS 27,5", double walled, lined, 25mm

Hubs

CRUSSIS disc, wreath bearing, 32D

front brake

TEKTRO HD-M285, hydraulic, rotor 180 mm

rear brake

TEKTRO HD-M285, hydraulic, 160 mm rotor

tires

MAXXIS Ardent 27,5 x 2,40

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to. Some brands quote artificially reduced weights. To find out the weight of a bike, you need to have it weighed in-store.

load capacity

120 kg

handlebars

CRUSSIS Al, 740 mm

stem

CRUSSIS Al, 60 mm, solid

grips

CRUSSIS, 100% silicone

head composition

Semi 1 1/8

seat

Selle ROYAL

seat post clamp

CRUSSIS with RU Al, black 34,9

seat post

CRUSSIS with lock, 31,6 / 350 or 400 mm

Number of gears

1 x 8

shifter

SHIMANO Acera RD-M360-L or SRAM X4, 8 speed

shifting

SHIMANO SL-M310 or SRAM X4, 8 speeds

chain

KMC X8

cassette / multiwheel

SHIMANO CS-HG31 or SRAM PG-820, 8 speeds

converter and cranks

BAFANG, 38 teeth, 170 mm
